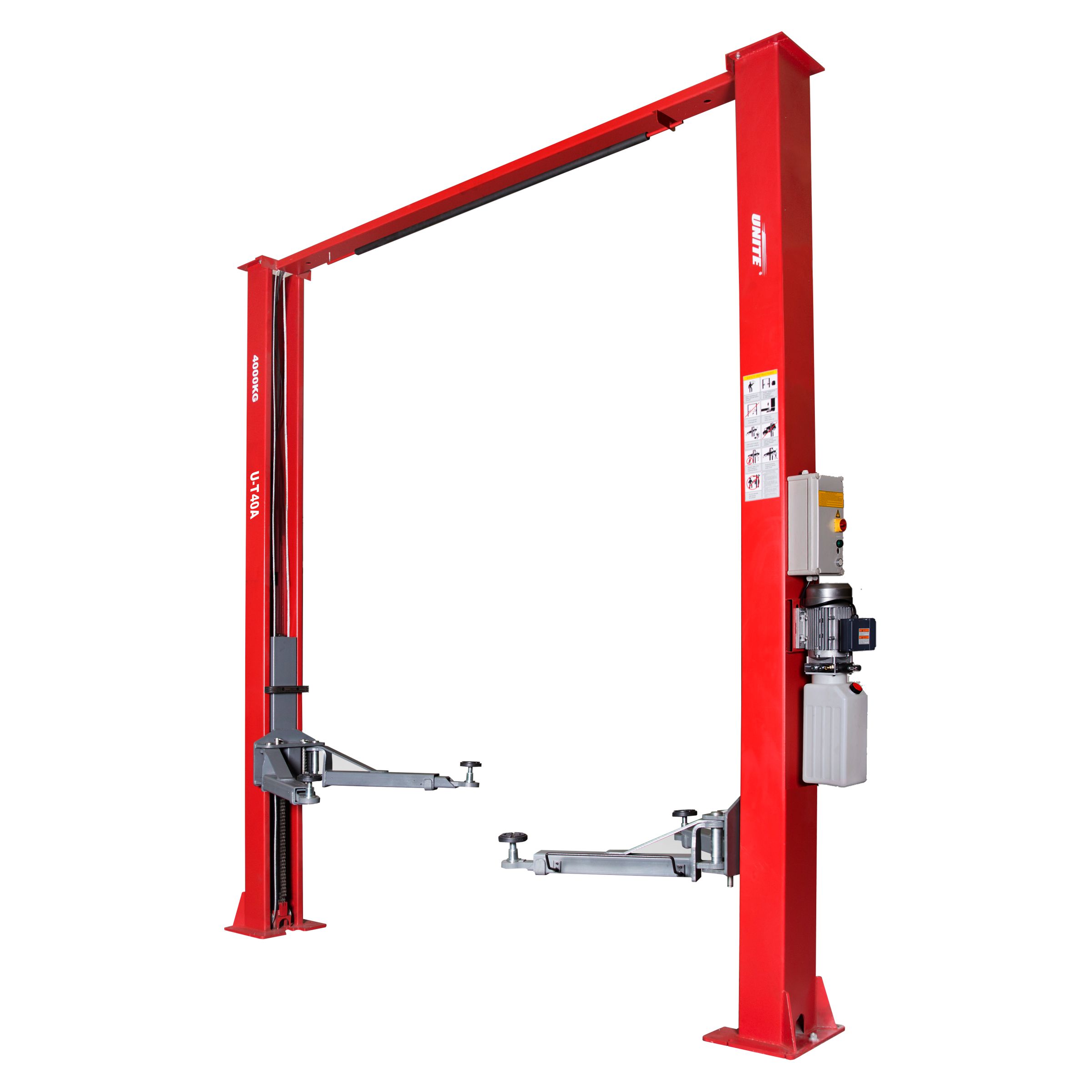

U-T40A Arch Type Clear Floor 4t Capacity Two Post Vehicle Lift

U-T40A Arch Type Clear Floor 4t Capacity Two Post Vehicle Lift

The U-T40A Two Post Vehicle Lift is an arch-type clear floor two-post lift designed for low ceiling garages. The total column height of 1910 mm allows this lift to be installed in almost any professional or home garage with a ceiling as low as110 mm.

SKU: U-T40A Categories: ,

Description

2-Post Lift / 4T Capacity / 75.2” Overall Height

The U-T40A Two Post Vehicle Lift is an arch-type clear floor two-post lift designed for low ceiling garages. The total column height of 1910 mm allows this lift to be installed in almost any professional or home garage with a ceiling as low as110 mm.

Safety Features:

1. Dual hydraulic cylinders

2. Safety valve for anti-explosion of hydraulic system

3. Synchronization cables

4. Chain protector

5. Easy access grease nipple design

6. Dust protection

Additional information

Product

Arch Type Clear FloorTwo Post Vehicle Lift
Product Code

U-T40A
Capacity

4T
Lifting height

1910 mm 75.2"
Min height

110 mm 4.3"
Max car width

2616 mm 103"
Power supply

220V 1PH 50/60Hz 2.2KW 220/380V 3PH 50/60Hz 2.2KW
Release

Dual manual Lock Release
Shipping Information

Loading QTY : 15 units/20' CTNR 3680*450*703mm ( 651 kg/units)
