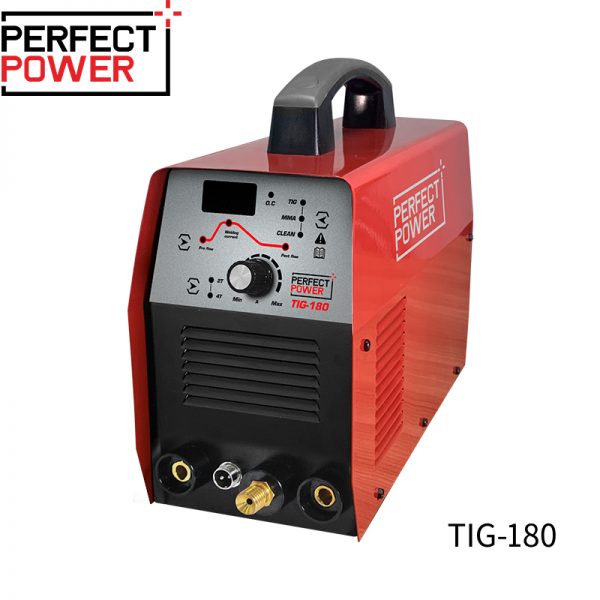

TIG-180 TIG Inverter Welding Machine With Clean Function

Description

1. Multi-function welder: DC TIG, Pulsed TIG, MMA, and Clean function.
2. High-frequency arc start with a high success rate.
3. Clean function, to clean the rust and oil on the surface of the material, like carbon steel and stainless steel.
4. 2T/4T function, adjustable Pre-Flow, and Post-Flow.
5. Exceptional energy-saving performance and high reliability.
6. Pulsed function only for TIG-160P/180P/200P.

Additional information

Model

TIG180

Power input AC(V)

1ph 220V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity(kVA)

5.3

Rated current input(A)

24

Rated output current(A)/voltage(V)

180/17.2(TIG) 160/26.4(MMA)

Welding current range(A)

10-180(TIG) 20-160(MMA)

Open circuit voltage DC(V)

60

Rated duty cycle(%)

60

IP grade

IP21S

Insulation grade

F

Dimensions(mm)

400*155*310

N.W.(kg)

5.2
