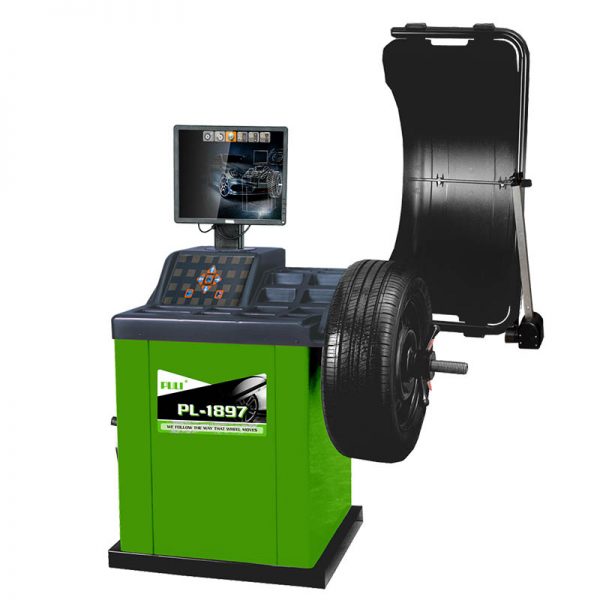

PL-1897 Self-Calibrating Computer Wheel Balancer

The PL-1897 wheel balancer represents the very latest generation of puli Wheel Balancers. Boasting automatic data entry, the offset and diameter are entered automatically using the inner measuring gauge, and the all-new ‘monitor-style’ large LED display and new design chassis give the balancer a far more practical and aesthetically improved design.

SKU: PL-1897 Categories: ,

Description

The PL-1897 wheel balancer represents the very latest generation of puli Wheel Balancers. Boasting automatic data entry, the offset and diameter are entered automatically using the inner measuring gauge, and the all-new ‘monitor-style’ large LED display and new design chassis give the balancer a far more practical and aesthetically improved design.

Features:
1. Laser Configuration
2. High precision main shaft ensures repeated measuring accuracy
3. Automatic distance and wheel diameter measuring
4. Tracking sticking balancing mode can locate weights precisely and rapidly
5. 14 Languages Available: Chinese, English, Korean, Italian, Finnish, Danish, Norwegian, Kazakh, Swedis, Spanish, Russian, Polish, Lithuanian, Latvian.
6. 17″LCD monitor,3D animation interface
7. Bigger machine body

Additional information

Product Code

PL-1897

Balancing Modes

9

Balancing speed

200 r.p.m

Rim diameter

252-610 mm 10"-24"

Rim width

40-510 mm 1.5"-20"

Split and hidden weight solution

Measuring time

8s

Balancing accuracy

±1g(±0.04 oz)

Max. wheel weight

65 kg (143 lbs)

Power supply voltage options

110v (1ph)/ 220v (1/3ph)/380v(3ph)

Option motor power

0.20/0.37kw

Noise level

< 70dB

N/G weight

102/123kg (225/271 lbs)

Package dimension

960*760*1250mm (3.1*2.5*4.1ft)
