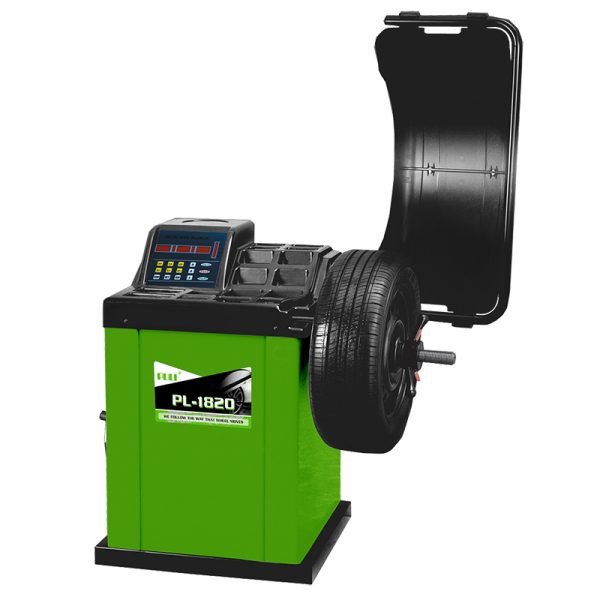

PL-1820 Self-Calibrating Computer Wheel Balancer

The PL-1820 wheel balancer is a highly accurate and dependable no-frills balancer that features our proprietary self-calibration and self-diagnosis functions for critical reliability and repeatability.

SKU: PL-1820 Categories: ,

Description

The PL-1820 wheel balancer is a highly accurate and dependable no-frills balancer that features our proprietary self-calibration and self-diagnosis functions for critical reliability and repeatability.

Features:
1. High precision main shaft ensures repeated measuring accuracy
2. Automatic distance and wheel diameter measuring
3. Tracking sticking balancing mode can locate weights precisely and rapidly
4. With self-calibration and self-diagnosis functions
5. LED light & Digital display
6. Bigger machine body

Additional information

Product Code

PL-1820

Balancing Modes

5

Balancing speed

200 r.p.m

Rim diameter

252-610 mm 10"-24"

Rim width

40-510 mm 1.5"-20"

Split and hidden weight solution

X

Measuring time

8s

Balancing accuracy

±1g(±0.04 oz)

Max. wheel weight

65 kg (143 lbs)

Power supply voltage options

110v (1ph)/ 220v (1/3ph)/380v(3ph)

Option motor power

0.20/0.37kw

Noise level

< 70dB

N/G weight

98/122kg (216/268 lbs)

Package dimension

960*760*1160mm (3.1*2.5*3.8ft)
