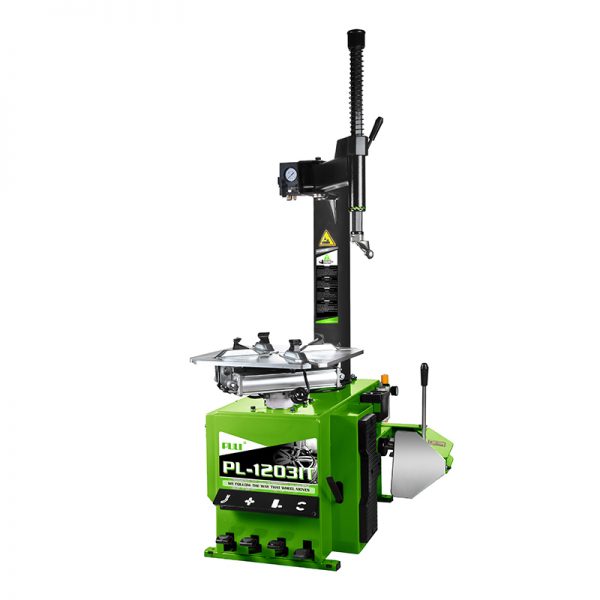

PL-1203IT Semi-Automatic Swing Arm Tire Changer

PL-1203IT racing semi-automatic swing arm tire changer, expressly designed for oversize and racing tires. It’s suitable for wheels with a rim from 14″ to 26″ (max. tire diameter 1143 mm./45″, max. tire width 406mm./16″). It’s suggested for high-volume tire shops.

SKU: PL-1203IT Categories: , Tag:

Description

Racing semi-automatic swing arm tire changer, expressly designed for oversize and racing tires. It’s suitable for wheels with a rim from 14″ to 26″ (max. tire diameter 1143 mm./45″, max. tire width 406mm./16″). It’s suggested for high-volume tire shops.

Features:

1. The round column is used as air tank
2. Clamping jaws are totally one-step die casting
3. Max working clamping 26″
4. Quick air booster, esp. suitable for low profile tyres
5. RIM CLAMPING METHOD:26” large turntable and high power motor, which increase working strength

Additional information

External locking rim dimensions

12~23"

Internal locking rim dimensions

14~26"

Max.Wheel diameter

≤1143mm (45")

Max.Wheel width

≤406mm (16")

Working Pressure

8-10bar (116-145 psi)

Opitonal Power supply

110 V (1 ph)/ 220 V (1 ph/3 ph)/ 380 V (3 ph)

Optional Mottor power

0.55/0.75/1.1 kw

Noise Level

<75 dB

Dimension(main body)

212/240kg (466/528 lbs)

N/G weight(main body)

900*1130*950mm (3.0*3.7*3.1ft)
