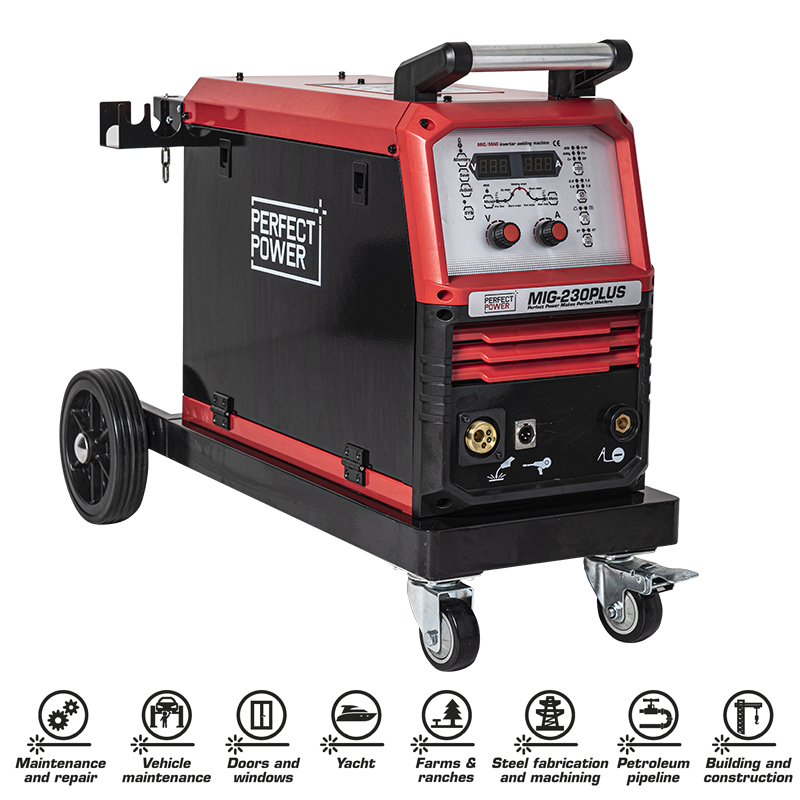

MIG-230 PLUS MIG MAG IGBT Inverter Welding Machine

Description

The MIG-230MINI is a single-phase MIG welding machine that you can bring along and use for welding operations with or without gas. This machine is designed for DIY projects and it’s ideal for outdoor conditions.

1. Expert in welding thin metal material.
2. Patented digital control software technology. 3.Synergic function.
4. Inverter frequency: IGBT 35 kHz.
5. Welding parameters memoried function.
6. Overload protection&loss-phase and lack-voltage protection.
7. Could work with the industrial robots via communication modules.
8. Welding process: MIG/MAG; pulsed MIG/MAG; double pulse MIG/MAG.

Additional information

Model

MIG-230PIUS

Power input AC(V)

1ph 220V ±15% 3ph 380V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity(kVA)

6.4

Rated current input(A)

29(380V) 9.4(220V)

Rated output current(A)/voltage(V)

220/25

Welding current range(A)

10-220A

Open circuit voltage DC(V)

65

Rated duty cycle(%)

60%

Wire Feeding Speed(M/min)

2-18

IP grade

IP21

Insulation grade

H

Dimensions(mm)

700*380*690

Weight (KG)

43

Wire Melting Type

globular transfer
