1. Multi-function welding – MIG/MAG, LIFT TIG, MMA, Spool Gun, and FLUX CORED Wire welding.
2. Capable for 15kg wire spool.
3. Professional MMA welding process with VRD function.
4. 2T/4T function.
5. Stable arc with less spatter.
6. Ideal for use in outdoor and indoor conditions.
7. Standard equipped with cylinder rack.

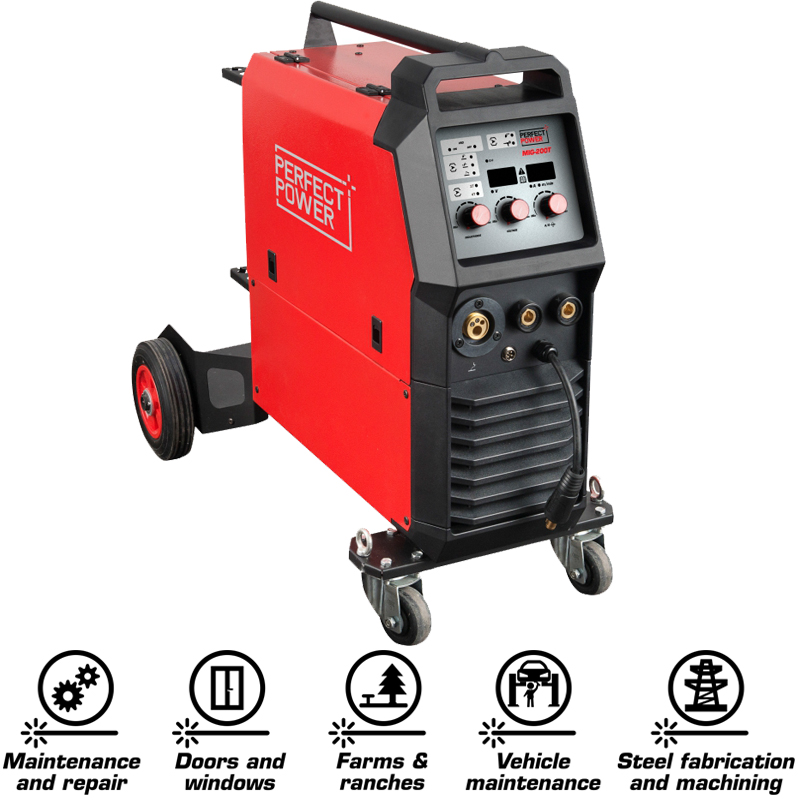

| Model | MIG-200T |
|---|---|
| Power input AC(V) | 1ph 220V ±15% |
| Power input frequency(Hz) | 50/60 |
| Max. Load Power Capacity(kVA) | 8.2(MIG) 9.6(MMA) 6.2(TIG) |
| Rated current input(A) | 37.4(MIG) 43.6(MMA) 28.0(TIG) |
| Rated output current(A)/voltage(V) | 200/24.0(MIG) 200/28.0(MMA) 200/18.0(TIG) |
| Welding current range(A) | 50-200(MIG) 25-200(MMA) 15-200(TIG) |
| Open circuit voltage DC(V) | 56 |
| Rated duty cycle(%) | 60 |
| Wire Feeding Speed(M/min) | 2-14 |
| IP grade | IP21 |
| Insulation grade | H |
| Dimensions(mm) | 1000x430x795 |
| Weight (KG) | 43.5 |
| Wire Melting Type | short circuit transfer |
