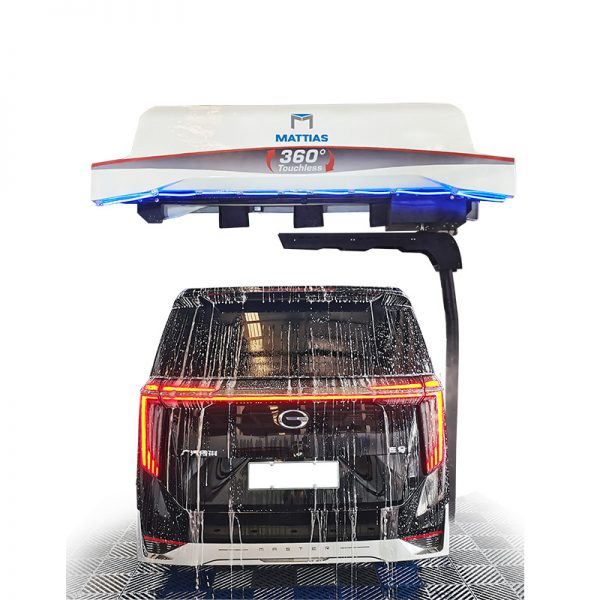

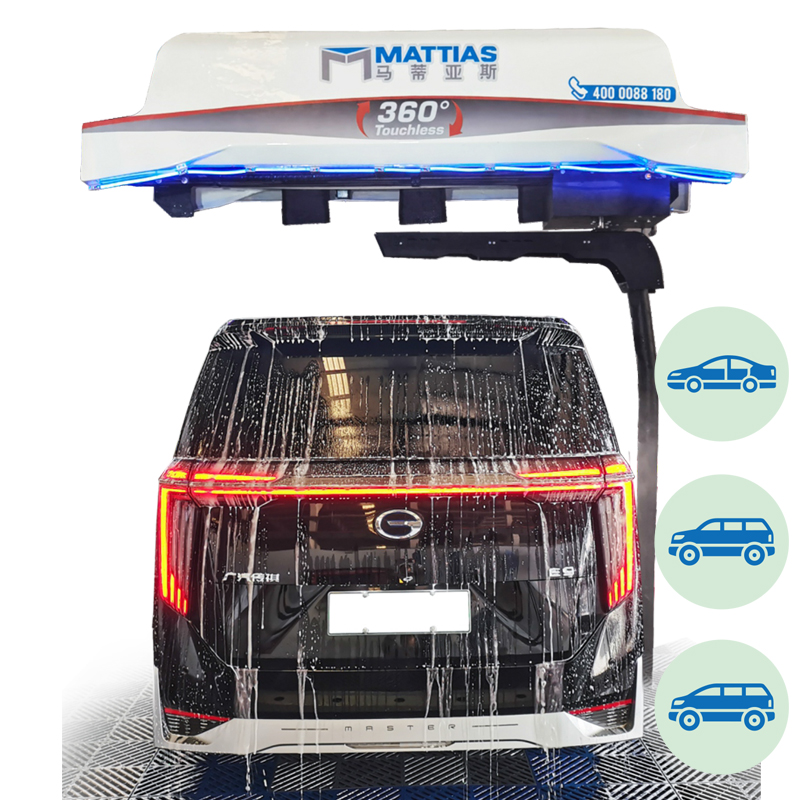

M-WS300 Touchless Car Wash Equipment

M-WS300 360 Touchless Automatic Car Wash Equipment with high volume and high pressure water jets to knock off any dirt on the car. Comes with advanced features like Foam Shampoo, LAVA Foam, Ultrasound vehicle sensing. High Speed equipment for quick car wash service. The car washing machine is an ideal touchless machine for both commercial and SUVs (up to 7 seats).

  • Exceptional Cleaning
  • Low Maintenance Costs
  • Energy-Efficient Design
  • Low Water and Chemical Consumption

Description

M-WS300 360 Touchless Automatic Car Wash Equipment with high volume and high pressure water jets to knock off any dirt on the car. Comes with advanced features like Foam Shampoo, LAVA Foam, Ultrasound vehicle sensing. High Speed equipment for quick car wash service. The car washing machine is an ideal touchless machine for both commercial and SUVs (up to 7 seats).What makes the M-WS300 car wash system different from the competitors’ touchless car washes? First, it’s operable with reduced water usage, saving you money and driving up your profit margins. Beyond that, the M-WS300 uses powerful, advanced flow concepts and spray-pattern designs created to exceed wash-quality expectations.

Product Features:

  • Smart rotate anm & high pressure spray of types of washing liquid;
  • Integrated intelligent liquid proportioning system;
  • Unassisted slide rail suspension system;
  • Innovative embedded fast drying system;
  • Smart 3-dimensional detection system;
  • Digital acoustic safety alarm system;
  • Fault self-checking system.

Functional Configuration

Working AxisThree axes
Automatic Proportioning of Car Wash LiquidStandard
Automatic Proportioning of Water WaxStandard
Automatic Proportioning of Colorful Car Wash Liquid (3 types)Standard
轮胎底盘自动冲洗:
Auto Tyre & Chassis Flushing
Standard
Control System10″ touch screen
Car Wash Quantity StatisticsStandard
Fault Self-diagnosis SystemStandard
Antifreeze DrainingStandard
Phase Loss Power-off ProtectionStandard
Embedded Air DryingStandard
Intelligent 3D Detection SystemStandard
Width DetectionStandard
Intelligent Parking GuidanceLED graphics & voice prompts
Remote ControlStandard
Wheel Hub BrushingOptional
Non-powered sliding track suspension system:Standard
Stored Value Card PaymentOptional
Customer-supplied water tank specifications2 tons
Customer-supplied air compressor specifications3kW, 360L, 0.8MPa

Technical Parameters

Applicable Car TypesPassenger car, SUV, minivan, and other vehicles with less than 7 seats
Max.Washable Car Dimensions(L*W*H)5.5m × 2.2m × 2m
Single Car Wash TimeStandard wash: around 3 mins per vehicle
Refine wash: around 5 mins per vehicle
Single Car Shampoo Consumption65mL/vehicle
Single Car Water Wax Consumption55mL/vehicle
Single Car Power Consumption0.85 degree/vehicle
Single Car Water Consumptionaround 140L/vehicle(adjustable)
Machine Dimensions(L * W * H)8m × 3.64m × 3.3m
Installation Dimensions(L * W * H)8.2m × 3.84m × 3.5m
Equipment Room(L * W * H)3.6m × 1.3m × 1.8m
Rail Length8m
Air Source Requirement0.6~0.8MPa
Rated Voltage of Machine:3-phase AC380V 50Hz
Rated Power of Machine:25kW
Power of Dryer22kW(4×5.5kW)
Power of High-pressure Water Pump Motor18kW
Pressure of High-pressure Water Pump7~12MPa
Export Packing Requirements (Container information is provided in the packing list)20’/40’GP
