M-WS100 Touchless Car Wash Machine

M-WS100 Rollover Touchless Automatic Car Wash Equipment with high volume and high pressure water jets to knock off any dirt on the car. Comes with advanced features like Foam Shampoo, LAVA Foam, Ultrasound vehicle sensing. High Speed equipment for quick car wash service. The car washing machine is an ideal touchless machine for both commercial and SUVs (up to 7 seats).

  • 7″ touch screen;
  • AGV collision protection;
  • Antifreeze Draining;
  • Leakage protection.

Description

M-WS100 rollover touchless car wash machine double swing arm car washing machine adopts a reasonable and compact design. It not only ensures the car washing function with small occupation of a smaller area but also can achieve efficient car washing operations in limited space.This car wash machine with high volume and high pressure water jets to knock off any dirt on the car. Comes with advanced features like Foam Shampoo, LAVA Foam, Ultrasound vehicle sensing. High Speed equipment for quick car wash service. The car washing machine is an ideal touchless machine for both commercial and SUVs (up to 7 seats).

Product Features:

  • Efficient cleaning: Top Swivel Nozzle;
  • Efficient Cleaning: Rotating Jets;
  • Tidy Water and Electrical Layout: Hidden transmission for seamless operation;
  • 4x Powerful dryers

Functional Configuration

Dryer systemfixed dryers
Travel systemMotor-driven
Automatic liquid proportioningStandard
 Foam sprayingStandard
Water wax sprayingStandard
No wipe liquid sprayingStandard
Swing + rotating high-pressure water rinseStandard
Fault self-check stop alarmStandard
Antifreeze drainingStandard
Intelligent touch screen controlStandard
Leakage protectionStandard
Car wash quantity trackingStandard
Fault Self-diagnosisStandard
Overall StructureHot-dip galvanized modular frame
High-pressure water pre-washStandard
Chassis flushingOptional
Intelligent low-temperature start-stop systemOptional
WeChat Payment FunctionOptional
Customer-supplied Water Tank Specifications2tons
Customer-supplied Air Compressor Specifications2.2kW, 450L,0.4- 0.8MPa
Mode 1Quick wash:(→)High-pressure water rinse,(←)Air dry
Mode 2Standard wash:(→)High-pressure water rinse,(←)wipe-free liquid,(→)High-pressure water rinse,(←) Foam,(→)High-pressure water rinse,(←)Air dry
Mode 3Refine wash:(→)High-pressure water rinse,(←)wipe-free liquid,(→)High-pressure water rinse,(←) Foam,(→)High-pressure water rinse,(←)Water wax spray,(→)High-pressure water rinse,(←)Air dry

Technical Parameters

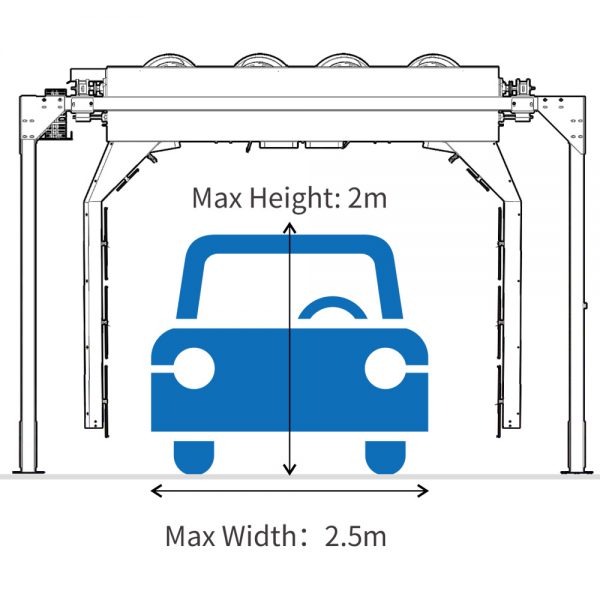

Max.Washable Car Dimensions(L*W*H)5.4m × 2.5m × 2m
Car Wash TimeQuick wash:2min;Standard wash:6min ;Refine wash:8min
wipe-free liquid:Around 50mL/car
Shampoo ConsumptionAround 50mL/car
Water wax spray:Around 50mL/car
Power ConsumptionQuick wash:Around 0.4 kWh/car    Standard wash:Around 0.7 kWh/car;  Refine wash:Around 1.1 kWh/car
Water ConsumptionQuick wash:35L/car        Standard wash:129L/car;     Refine wash:176L/car
Machine Dimensions(L * W * H)6.87m × 4.02m ×2.9m
Rail length6.55m
Air Source Requirement0.6~0.8MPa
Rated Voltage of Machine3-phase AC380V 50Hz
Rated Power of Machine27kW(including air/water pump)
Metering Pump Motor0.025kw*3
Swing high-pressure water motor0.2kW
Complete travelling motor0.37kW
High-pressure Pump Motor7.5KW
Submersible pump Motor1.5kw
Air dry Motor4kW*4
FrameIn-house
Programmable ControllerMitsubishi, Japan
Variable Frequency DriveZONCN, Shanghai China (Rail)
Infrared Photoelectric SwitchROKO, Taiwan China
Proximity SwitchROKO, Taiwan China
AC ContactorSchneider, France
Thermal RelaySchneider, France
Air SwitchDELIXI, China
High-Pressure Water PumpZhejiang Nanyuan Pump, China
