M-SD1400D 16 m Conveyor Car Wash Equipment

16m Conveyor Car Wash Machine is an ideal length for most locations. It can wash approximately 50 – 60 cars per hour. A 16m conveyor car wash machine is suitable for most locations as you can get plots that can accommodate equipment of this length along with turning radius and space for line up. 4 swing arm brushes provide very good cleaning along with the skirt brushes.

Standard Features

10″ touchscreen;
Electric contour-following cleaning;
Hot-dip galvanized frame;
AGV collision protection.

Description

16m Conveyor Car Wash Machine is an ideal length for most locations. It can wash approximately 50 – 60 cars per hour. An 16m conveyor is suitable for most locations as you can get plots that can accommodate equipment of this length along with turning radius and space for line up. 4 swing arm brushes provide very good cleaning along with the skirt brushes.

Any requirement of approximately 10 cars per hour or more during the peak hours should consider a conveyorised car wash option. The Mattias Conveyor Car Wash Equipment series has a robust conveyor and is hot dip galvanised for long life.

This M-SD1400D tunnel car wash system has 14 brushes and will wash every aspect of a car, all while using less water and lower power consumption. This car wash system improves washing efficiency, saves utilities, and increases customer profits, making this conveyor car wash a popular system among our customers.

Product Features:

  • 1. Lifting contour-following dryer;
  • 2. Skip the towel hassle: Powerful 5.5kw blade dryers achieve 95% drying efficiency;
  • 3. Double-layer frame: Engineered for strength and anti-rust;
  • 4. Upgraded nylon brushes: Tough on dirt, gentle on your car; Deep clean, every time;
  • 5. 360°clean: Front-to-back vertical brushes for a complete clean; Top-down clean, Electric top brush washes car roof for a complete shine;

Functional Configuration

Dryer SystemTop Dryer2 contour-following lifting dryers
Side Dryer2 fixed dryers
Brush SystemBrushesSide brush * 4, Small brush * 4, Top brush * 1, Wheel brush * 2 , Top drying brush * 1, Side drying brush *2
Top BrushElectric contour-following lifting
Side BrushMotor-driven, chain-operated opening and closing
Side Brush Tracking WashStandard
Small brushStandard
Material of BrushEVA foam brush
Wash Liquid SystemCar Wash LiquidStandard siphon liquid(User-customized mixing ratio car wash soap)
Optional ratio pump for automatic mixing
Water WaxStandard siphon liquid(User-customized mixing ratio water wax)
Optional ratio pump for automatic mixing

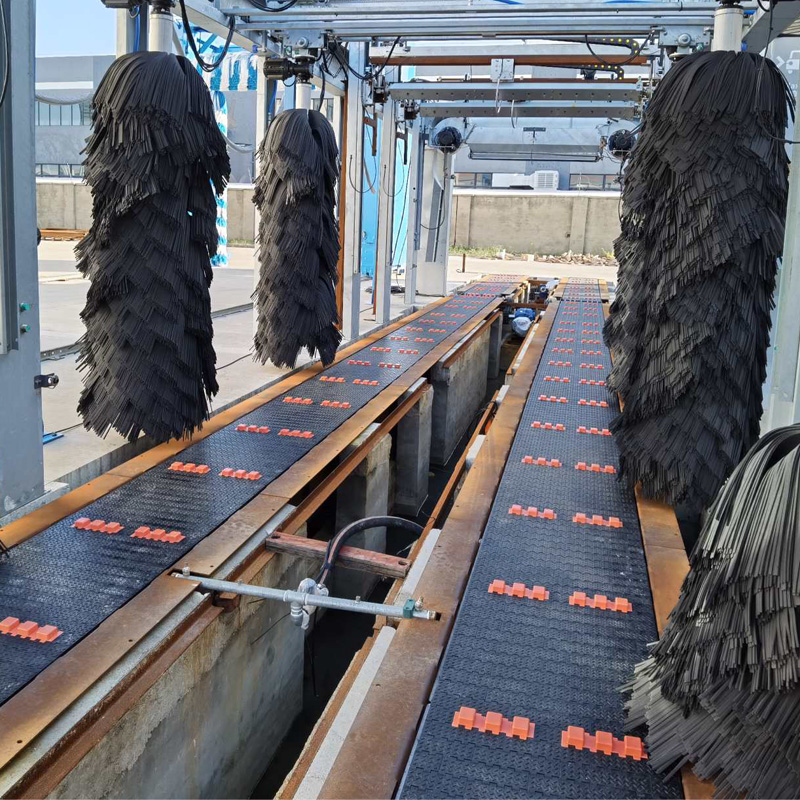

Conveyor SystemMotor-driven, chain-operated travelling
AGV Collision ProtectionStandard
Control SystemMitsubishi PLC control system
Undercarriage WashOptional
Display10-inch LCD touch screen
Car wash Quantity TrackingStandard
Fault Self-diagnosisStandard
Smart Parking GuidanceStandard (Red/Green indicator)
Overall StructureHot-dip galvanizing of welded sheet metal frames
Multi-stage Submersible PumpStandard
High-pressure Water Pre-rinsingStandard (external stainless steel vertical pump)
Intelligent Low-temperature Start-Stop SystemOptional
Voice Broadcast SystemOptional
Pay by WeChatOptional (Domestic market only)
Customer-supplied Water Tank Specifications2 tons
Customer-supplied Air Compressor Specifications2.2kW, 120L, 0.8MPa
Car Wash ProcessOscillating High-Pressure Water Pre-Rinse → Small brush wash → Wheel Brush→ Top brush wash → Side brush tracking wash → Clean water rinse → Water wax application → Drying→ Side drying brush → Top drying brush

Technical Parameters

Applicable Car TypesPassenger car, SUV, minivan, and other vehicles with less than 7 seats

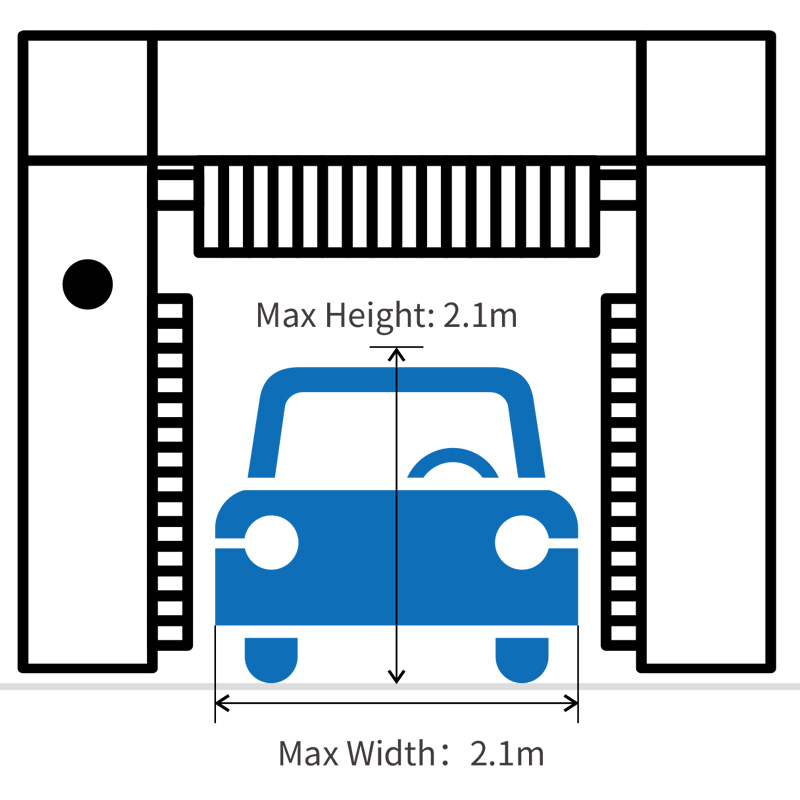

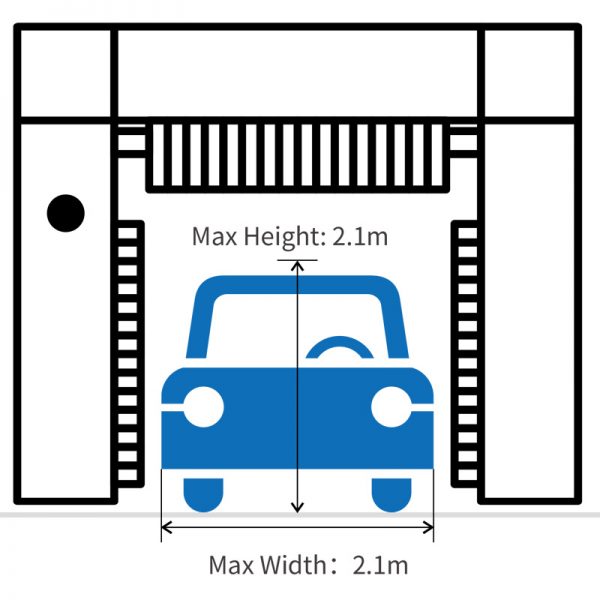

Max.Washable Car Dimensions(L*W*H)(Unlimited length) × 2.1m × 2.1m
Single Car Wash Time55~60 cars/hour
Single Car Shampoo ConsumptionAround 30mL/car
Single Car Water Wax ConsumptionAround 30mL/car
Single Car Power ConsumptionAround 2.2 kWh/car
Single Car Water ConsumptionAround 160L/car

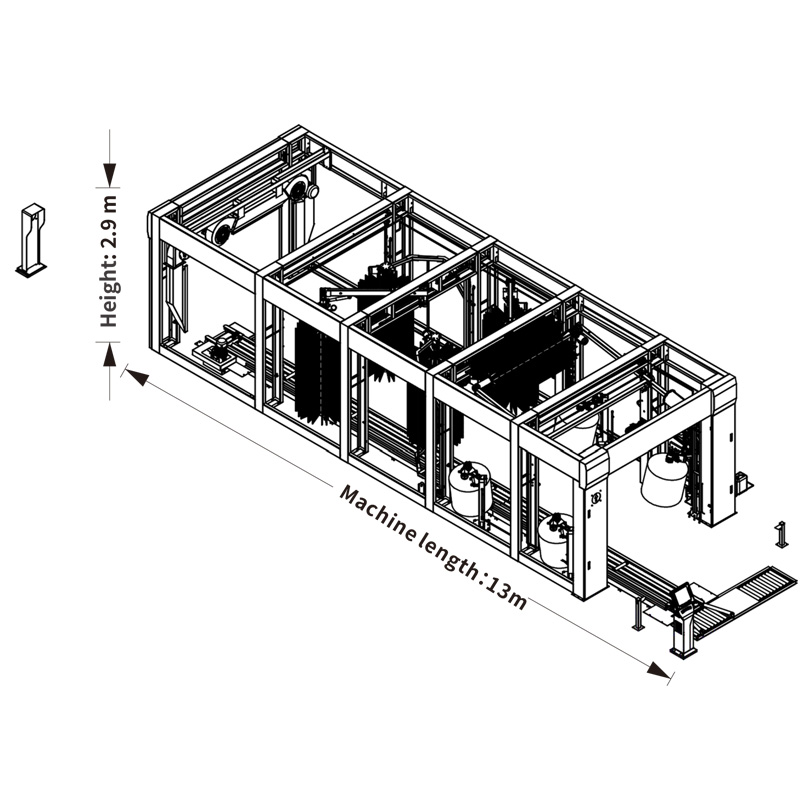

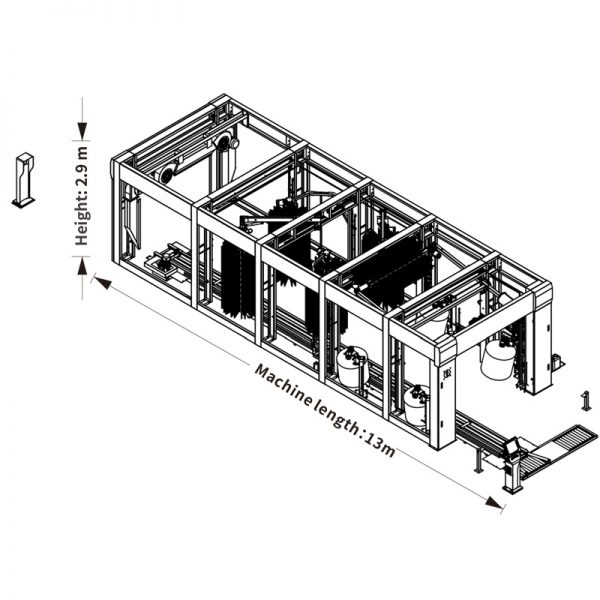

Machine Dimensions(L * W * H)13.6m × 3.8m × 3.44m
Installation Dimensions(L * W * H)17.2m × 4m × (>4m)
Air Source Requirement0.75~0.9MPa
Rated Voltage of Machine3-phase AC380V 50Hz
Rated Power of Machine42kw
Top Brush Rotation Motor0.75kW*1
Top Brush Lifting Motor0.75kW*1
Side Brush Rotation Motor0.75kW*4
Side Brush Opening & Closing Motor0.18kW*2
Side Brush Travelling Motor0.18kW*1
Small Brush Motor0.37kW*4
Wheel Brush Rotary Motor0.18kw*2
Wheel Brush Mobile Motor0.2kw*2
Drying Brush Motor0.37KW*3
Conveyor Belt Motor1.5KW*1
Top Dryer Motor5.5kW*2
Top Dryer Lifting Motor0.75kW*1
Side Dryer Motor5.5kW*2
Submersible Pump Motor2.2kW*2
Water Pump Pressure0.6MPa
High-pressure Pump Motor4kW*1
High-pressure Water Oscillating Drive Motor0.18kW*2
High-pressure Water Pump Pressure2MPa
FrameHot-dip galvanized profiles
Programmable ControllerMitsubishi, Japan
Variable Frequency DriveZONCN, Shanghai China (Rail)
Infrared Photoelectric SwitchROKO, Taiwan, China
Proximity SwitchROKO, Taiwan, China
AC ContactorSchneider, France
Thermal RelaySchneider, France
Air SwitchDelixi, Zhejiang,China
Waterproof Reduction MotorWonder, Fujian China
Pressure Reducing ValveAirTax,Taiwan China
Pressure Regulating and Filtering ValveAirTax,Taiwan China
Two-Position Five-Way ValveAirTax,Taiwan China
Pneumatic CylinderAirTax,Taiwan China
Submersible PumpKaili, Shanghai China
High-Pressure Water PumpZhejiang Nanyuan Pump, China
