Description

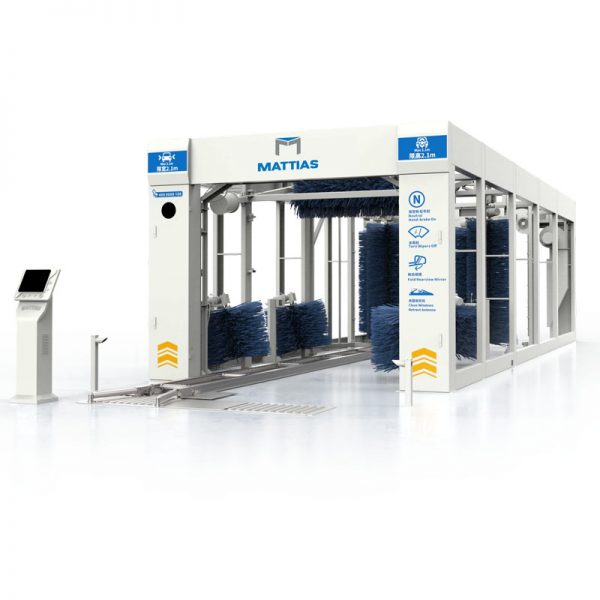

M-SD0700D 12m Tunnel Car Wash Machine to wash approximately 55 – 60 cars per hour. This is a suggestive configuration. You can configure Mattias Conveyor Car Wash Equipment as per your specific requirements. You can add or remove systems to cater to your local requirements.

Any requirement of approximately 10 cars per hour or more during the peak hours should consider a conveyorised car wash option. The Mattias Conveyor Car Wash Equipment series has a robust conveyor and is hot dip galvanised for long life.

This M-SD0900D tunnel car wash system has 7 brushes and will wash every aspect of a car, all while using less water and lower power consumption. This car wash system improves washing efficiency, saves utilities, and increases customer profits, making this conveyor car wash a popular system among our customers.

Product Features：

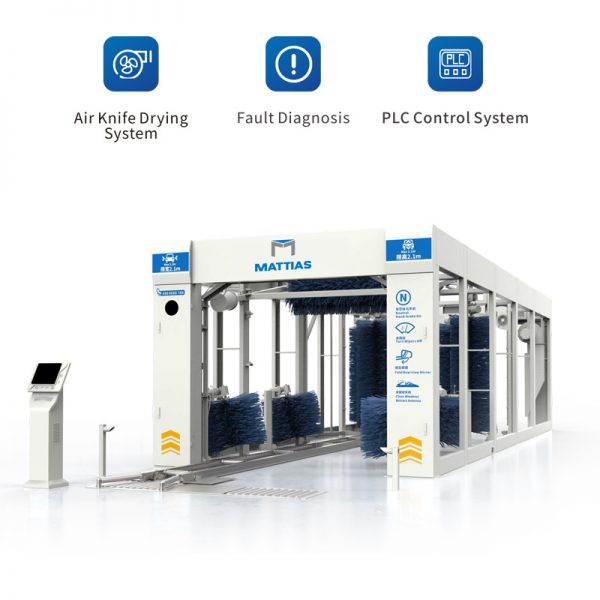

1. Lifting contour-following dryer;
2. Skip the towel hassle: Powerful 5.5kw blade dryers achieve 95% drying efficiency;
3. Double-layer frame: Engineered for strength and anti-rust;
4. Upgraded nylon brushes: Tough on dirt, gentle on your car; Deep clean, every time;
5. 360°clean: Front-to-back vertical brushes for a complete clean; Top-down clean, Electric top brush washes car roof for a complete shine;

Functional Configuration

Dryer System	Top Dryer	2 contour-following lifting dryers
	Side Dryer	2 fixed dryers
Brush System	Brushes	Side brush * 4, Small brush * 2, Top brush * 1
	Top Brush	Electric contour-following lifting
	Side Brush	Motor-driven, chain-operated opening and closing
	Side Brush Tracking Wash	Standard
	Small brush	Standard
	Material of Brush	EVA foam brush
Wash Liquid System	Car Wash Liquid	Standard siphon liquid(User-customized mixing ratio car wash soap) Optional ratio pump for automatic mixing
	Water Wax	Standard siphon liquid(User-customized mixing ratio water wax) Optional ratio pump for automatic mixing

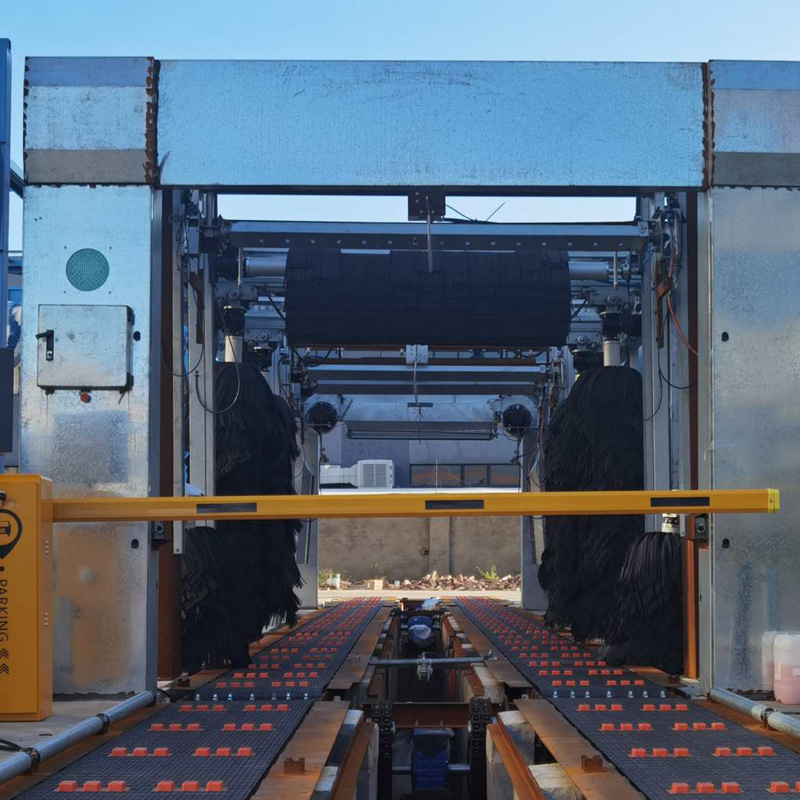

Conveyor System		Motor-driven, chain-operated travelling
AGV Collision Protection		Standard
Control System		Mitsubishi PLC control system
Undercarriage Wash		Optional
Display		10-inch LCD touch screen
Car wash Quantity Tracking		Standard
Fault Self-diagnosis		Standard
Smart Parking Guidance		Standard (Red/Green indicator)
Overall Structure		Hot-dip galvanizing of welded sheet metal frames
Multi-stage Submersible Pump		Standard
High-pressure Water Pre-rinsing		Standard (external stainless steel vertical pump)
Intelligent Low-temperature Start-Stop System		Optional
Voice Broadcast System		Optional
Pay by WeChat		Optional (Domestic market only)
Customer-supplied Water Tank Specifications		2 tons
Customer-supplied Air Compressor Specifications		2.2kW, 120L, 0.8MPa
Car Wash Process		Oscillating High-Pressure Water Pre-Rinse → Small brush wash → Top brush wash → Side brush tracking wash → Clean water rinse → Water wax application → Drying

Technical Parameters

Applicable Car Types		Passenger car, SUV, minivan, and other vehicles with less than 7 seats

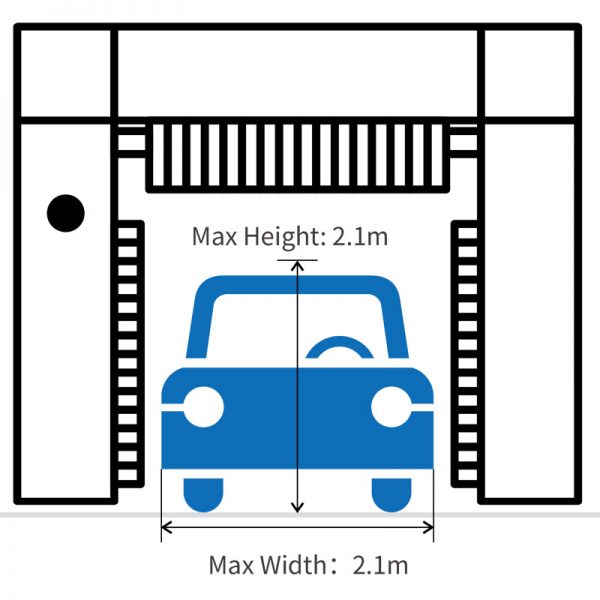

Max.Washable Car Dimensions(LWH)		（Unlimited length） × 2.1m × 2.1m
Single Car Wash Time		55~60 vehicles/hour
Single Car Shampoo Consumption		around 30mL/vehicle
Single Car Water Wax Consumption		around 30mL/vehicle
Single Car Power Consumption		around 2 kWh/vehicle
Single Car Water Consumption		around 150L/vehicle
Machine Dimensions(L * W * H)		11.88m × 3.8m × 3.44m
Installation Dimensions(L * W * H)		11.8m × 4m × （＞4m）(excluding vehicle access dimensions)
Air Source Requirement		0.75~0.9MPa
Rated Voltage of Machine:		3-phase AC380V 50Hz
Rated Power of Machine:		38.89kW
Top Brush Rotation Motor		0.75kW*1
Top Brush Lifting Motor		0.75kW*1
Side Brush Rotation Motor		0.75kW*4
Side Brush Opening & Closing Motor		0.2kW*2
Side Brush Travelling Motor		0.2kW*1
Small Brush Motor		0.37kw*2
Side Vertical Brush Motor		N/A
Drying Brush Motor		N/A
		N/A
Conveyor Belt Motor		1.5kW*1
Top Dryer Motor		5.5kW*2
Top Dryer Lifting Motor		0.75kW*1
Side Dryer Motor		5.5kW*2
Submersible Pump Motor		2.2kW*2
Water Pump Pressure		0.6MPa
High-pressure Pump Motor		4kW*1
High-pressure Water Oscillating Drive Motor		0.2kW*2
High-pressure Water Pump Pressure		2MPa
Frame		Hot-dip galvanizing
Programmable Controller		Mitsubishi, Japan
Variable Frequency Drive		Shihlin, Taiwan China ZONCN, Shanghai China
Infrared Photoelectric Switch		ROKO, Taiwan China
Proximity Switch		ROKO, Taiwan China
AC Contactor		Schneider, France
Thermal Relay		Schneider, France
Air Switch		DELIXI, China
Waterproof Gear Motor		Wonder, Fujian China
Pressure Reducing Valve		AirTax，Taiwan China
Pressure Regulating and Filtering Valve		AirTax，Taiwan China
Two-Position Five-Way Valve		AirTax，Taiwan China
Pneumatic Cylinder		AirTax，Taiwan China
Submersible Pump		Kaili, Shanghai China
High-Pressure Water Pump		NANYUAN PUMP INDUSTRY, Zhejiang China
