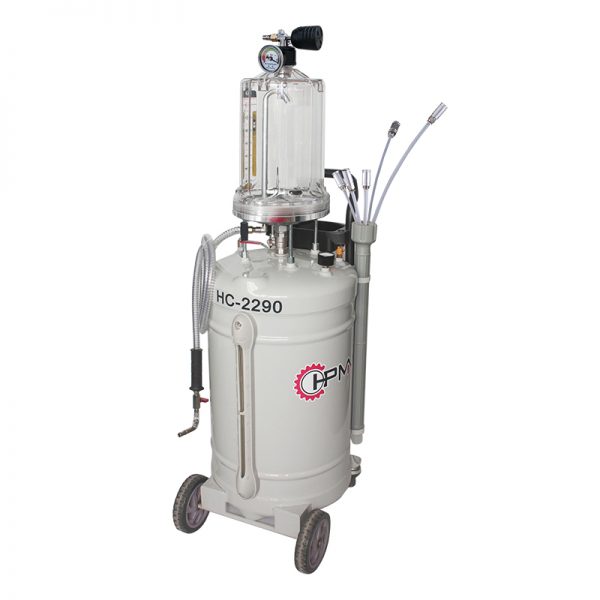

The Portable HC-2290 Air-Operated Oil Extractor is a vacuum-charged unit that’s ideal for extracting used oil and other fluids from almost any vehicle. Functions: Remove and extract waste fluids or oil out from the engine and etc. with a flexible PVC tube and robust CU probe.
The Portable HC-2290 Air-Operated Oil Extractor is a vacuum-charged unit that’s ideal for extracting used oil and other fluids from almost any vehicle.
Functions: Remove and extract waste fluids or oil out from the engine and etc. with a flexible PVC tube and robust CU probe.
1.Vacuum&Explosion-proof integrated mechanism(Patented)
2. Modular Cylinder(Patented)
3. Tool tray
4. Liquid level display cover(Patented)
| Air Inlet Pressure | 6～8bar/ 87～116PSI |
|---|---|
| Ejection pressure | 0.7～1 bar/ 10～14PSI |
| Air inlet connection | 1/4” |
| Vacuum Degree | 0～-1 bar /-14PSI |
| Tank Capacity | 80L |
| Cylinder Capacity | 9L |
| Working Temperature | 40～60℃ |
| Package | Cylinder/box，oil tank/box |
| Package dimension | 560*440*1000mm |
| Suction Speed(max.) | 6.5Liter/m |
