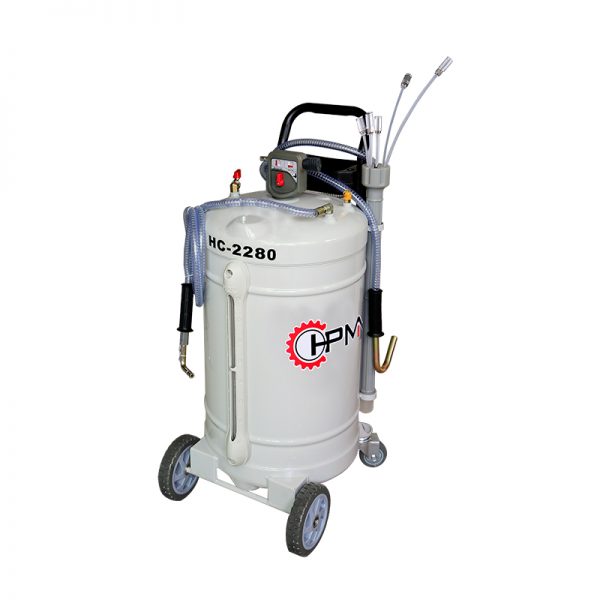

HC-2280 Pneumatic Oil Extractor

The Portable HC-2280 Air-Operated Oil Extractor is a vacuum-charged unit that’s ideal for extracting used oil and other fluids from almost any vehicle.

SKU: HC-2280 Pneumatic Oil Extractor Categories: ,

Description

The Portable HC-2280 Air-Operated Oil Extractor is a vacuum-charged unit that’s ideal for extracting used oil and other fluids from almost any vehicle.

1. Use compressed air as a power source
2. Various diameters of extraction probes are provided to fit the use of different cars.
3.Vacuum cylinder and oil tank at the same time, increase oil extraction speed
4. The cylinder of high-grade transparency adopted can observe and measure the oil capacity primarily.
5. Applies to extraction and temporary storage of all kinds of machinery and lubricants.

Additional information

Tank capacity

80L

Air inlet pressure

6-8Bar

Air inlet connection

1/4”

Air pressure for oil discharge

0.7~1Bar

Vacuum degree

-1~0Bar

Oil temperature range

40-60℃

Suction Speed(max.)

6.5Liter/m

N/G weight

18.5/21.5kgs

Package dimension

560*440*1000mm
