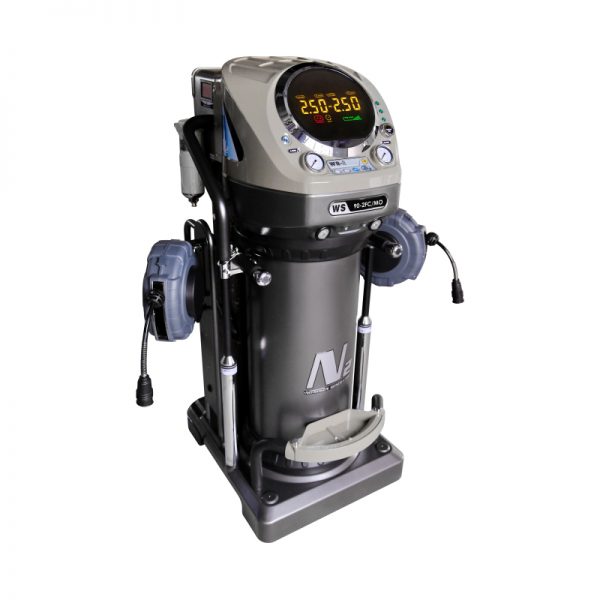

WS90-2FC/MO Guarder Series Nitrogen Tyre Inflator Machine

WS90-2FC/MO Nitrogen Tyre Inflator includes multiple stages of filtration before reaching the membrane, this removes more of the other particles in the gas such as dust and moisture.

SKU: WS90-2FC/MO Categories: ,

Description

WS90-2FC/MO Nitrogen Generation Tyre Inflator includes multiple stages of filtration before reaching the membrane, this removes more of the other particles in the gas such as dust and moisture.

*Three modes for nitrogen generating.

*Manual transform valve to transform the N2 inflation mode from/to air inflation mode.

*OPS (overpressure system to make bead and rim fit more tightly)

*N2P (nitrogen inflation & air purge system available to make higher nitrogen purity.

*Dual screen to show different tire pressure of the front tire and the rear tire.

*Large display screen.

*Dynamic display window to show the inflation or deflation process.

*The headcover can be opened backward to 90° for more convenient installation.

Additional information

Suit for

car/light truck

Power supply

AC220V/1PH/50Hz

Nitrogen purity

92%~99%

Air inlet pressure

9~10bar/130~145psi

Air compressor required

5.5~7.5kw, 10bar, 1~1.5m³/Min

Nitrogen output pressure

1~6bar/15-87psi

High purity mode

40~60L/Min(98%)

Standard mode

90~110L/Min(95%)

Large flow mode

110~130L/Min(92%)

N2 tank capacity

90L

Standard

Water/oil filter & separator X 1pc
