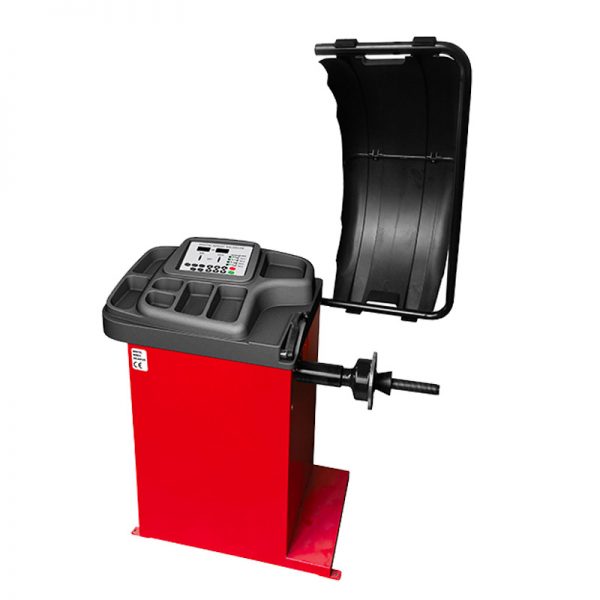

U-5880 Digital Tube Display Wheel Balancer with OPT Function & Split and Hidden Weight Solution

The U-5580 LED wheel balancer with opt function & split and hidden weight solution features, optional laser pointer, and LED light, making it easy to use and accurate in balancing wheels. U-5580 LED wheel balancer is a motorized balancer at a great value that compliments any shop. The small footprint and lower rotational speed offer features even the most demanding operator will appreciate.

  • Various balancing modes can carry out counterweights to stick, clamp and etc.
  • Intelligent self-calibrating.
  • Self fault diagnosis and protection function.
SKU: U-5880 Wheel Balancer Categories: ,

Description

The U-5580 wheel balancer with opt function & split and hidden weight solution features, optional laser pointer, and LED light, making it easy to use and accurate in balancing wheels. U-5580 wheel balancer is a motorized balancer at a great value that compliments any shop. The small footprint and lower rotational speed offer features even the most demanding operator will appreciate.

Features:

1. Adopt LED display, it has a flexible indicator operating function.

2. Various balancing modes can carry out counterweights to stick, clamp, etc.

3. Intelligent self-calibrating.

4. Self fault diagnosis and protection function.

5. Applicable for various rims of steel structure and duralumin structure.

Optional:

1. Laser Pointer: Points out the unbalancing place with laser automatically;

2. LED Light: Equipped LED to illuminate the operating area;

Additional information

Product Code

U-5880 Wheel Balancer

Balancing Modes

6 Balancing Modes

Balancing speed

200 r.p.m

Rim diameter

252-610 mm 10"-24"

Rim width

40-510 mm 1.5"-20"

Split and hidden weight solution

Measuring time

8s

Balancing accuracy

±1g(±0.04 oz)

Max. wheel weight

65 kg (143 lbs)

Power supply voltage options

110v(1ph)/220v(1/3ph)/380v(3ph)

Option motor power

0.2kw/0.37kw

Noise level

< 70dB

N/G weight

78 kg/94.6 kg

Package dimension

560*960*1080mm
