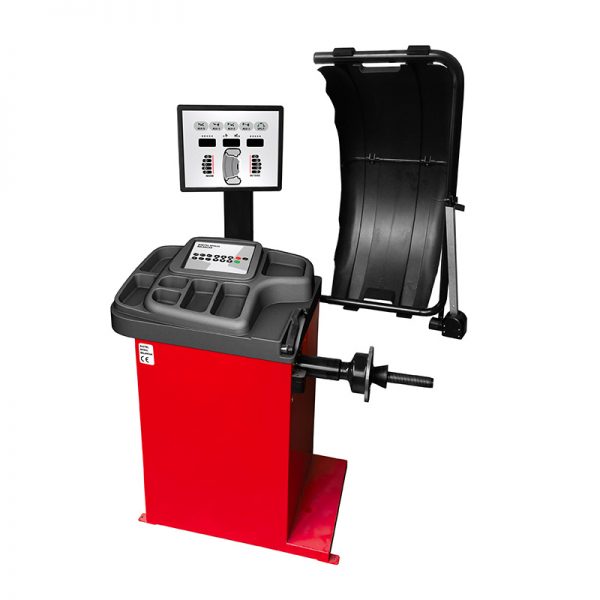

U-5839 LED Display Wheel Balancer with OPT Function & Split and Hidden Weight Solution

The U-5839 LED wheel balancer with opt function & split and hidden weight solution features an electromagnetic brake, laser pointer, led light, and automatic measurement, making it easy to use and accurate in balancing wheels. U-5839 LED wheel balancer is a motorized balancer at a great value that compliments any shop. The small footprint and lower rotational speed offers features even the most demanding operator will appreciate.

  • Electromagnetic Brake
  • Automatic Positioning of Unbalance Points
  • Laser Pointer
  • Automatic measurement
  • LED Light
SKU: U-5839 Wheel Balancer Categories: ,

Description

The U-5839 LED wheel balancer with opt function & split and hidden weight solution features an electromagnetic brake, laser pointer, led light, and automatic measurement, making it easy to use and accurate in balancing wheels. U-5839 LED wheel balancer is a motorized balancer at a great value that compliments any shop. The small footprint and lower rotational speed offers features even the most demanding operator will appreciate.

Features:

1. Electromagnetic Brake: The electromagnetic brake function can automatically position the inner and outer unbalanced position;

2. Automatic Positioning of Unbalance Points: The machine has an automatic positioning feature that detects the unbalanced point, eliminating the need for manual hand-spinning of the tire.

3. Laser Pointer: Points out the unbalancing place with laser automatically;

4. LED Light: Equipped LED to illuminate the operating area;

5. Automatic measurement: Automatic distance and wheel diameter measuring, allowing faster data input; The tracking sticking balancing mode is particularly suitable for the high-class wheel that uses stick-on weights only; Automatic width measuring scale.

Additional information

Product Code

U-5839

Balancing Modes

6 Balancing Modes

Balancing speed

200 r.p.m

Rim diameter

252-610 mm 10"-24"

Rim width

40-510 mm 1.5"-20"

Split and hidden weight solution

Measuring time

8s

Balancing accuracy

±1g(±0.04 oz)

Max. wheel weight

65 kg (143 lbs)

Power supply voltage options

220V 1PH

Option motor power

0.2kW

Noise level

< 70dB

Package dimension

560*960*1150mm
