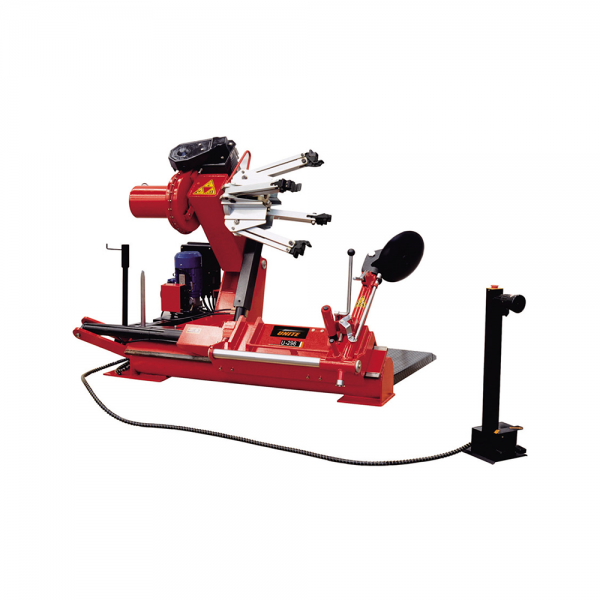

The U-296 is a heavy-duty truck tire changer that handles truck, bus and commercial van tires with ease. Comes with joystick control.
Heavy-Duty Truck Tire Changer / Joystick Control
The U-296 is a heavy-duty tire changer that handles truck, bus and commercial van tires with ease. Comes with joystick control.
Features:
1. Clockwise and anticlockwise rotation of the clamp range from 14″-42″.
2. Automatic electrohydraulic operation
3. Movable control unit
4. Hydraulic motor with pressure adjustment device
5. Automatic fast turning
6. Portable console
| Product | Heavy-duty truck tire changer |
|---|---|
| Product Code | U-296 |
| Hydraulic pump motor | 220v (3ph) / 380v(3ph) 2.2kw |
| Rotating motor | 220v (3ph) / 380v(3ph) 2.2kw |
| Clamping capacity | 14~42" |
| Max.wheel diameter | ≤2300mm (90") |
| Max.wheel width | ≤1050mm (41") |
| N/G weight | 774/860 kg (1706/1896 lbs) |
| Package dimension | 1900*2100*1000mm (6.2*6.9*3.3ft) |
| Noise Level | ≤75 dB |
