Description

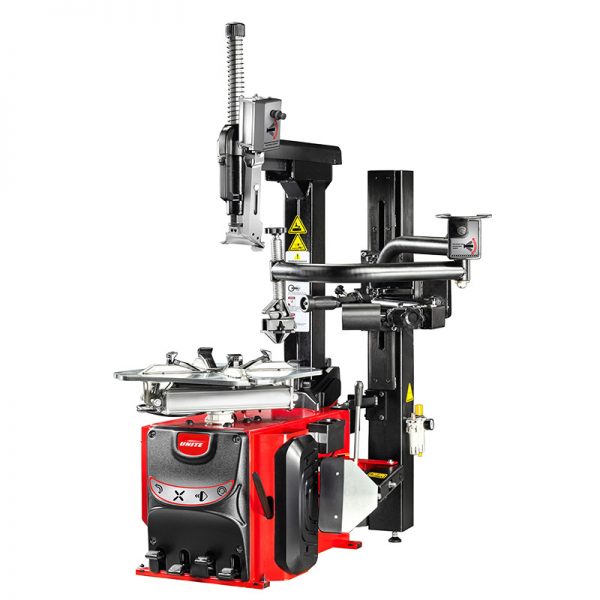

The U-256STPRO is an automatic mount/demount head tilting type tyre changer with a standard automatic mount/demount head T03, 28″ turntable, and 12-26″ external clamping and 16-28″ internal clamping. It features an independent help arm system with a multi-functional design for bead pressing, lifting, loosening, and wheel positioning. The automatic mount/demount head T03 is lever-less and provides up to 500kg of power. The tyre changer also has a plastic protector with triple protection to avoid scratches on the steel ring.
- Patented reinforced structure design, with the upgraded version of the leverless hook, easy to deal with run-flat tyres.
- With a multi-functional assist arm, it provides effective protection to the rim and greatly improves the efficiency of tyre removal and installation.
- Broadly adapt to the main types of tyres in the market.
Features:
1. 28″ Turntable
2. 12~26″ External clamping
3. 16~28″ Internal clamping
4. Independent Help Arm System
The help arm is rich in functions and easy to operate, providing simultaneously 3-point bead pressing assistance.
The assist arm features a multi-function design, providing extra assistance in wheel positioning, bead pressing, bead lifting and loosening, and other functions.
- roller-bead pressing
- roller-bead lifting
- 360° rotatable combination tyre pressing head-bead pressing
- 360° rotatable combination tyre pressing head – quick wheel clamping or off/on from the turntable
5. Automatic Mount/Demount Head t03
- Lever-less – no need to lift the bead manually;
- The patented lever-less tool provides up to 500kg of power.
6. Plastic Protector
Triple protection, avoiding scratches on the steel ring plastic mount/demount head protector; plastic jaw protector; bead breaker shovel protector.
