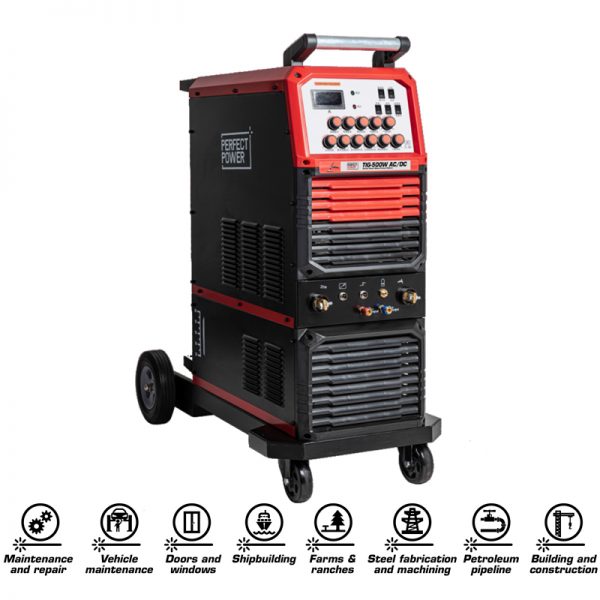

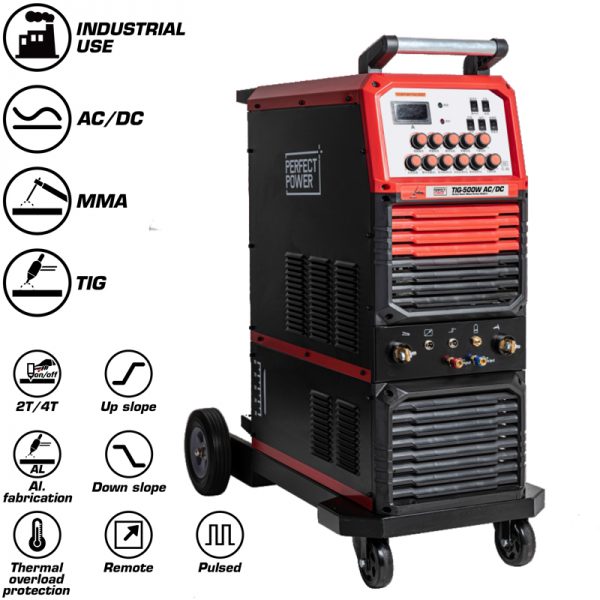

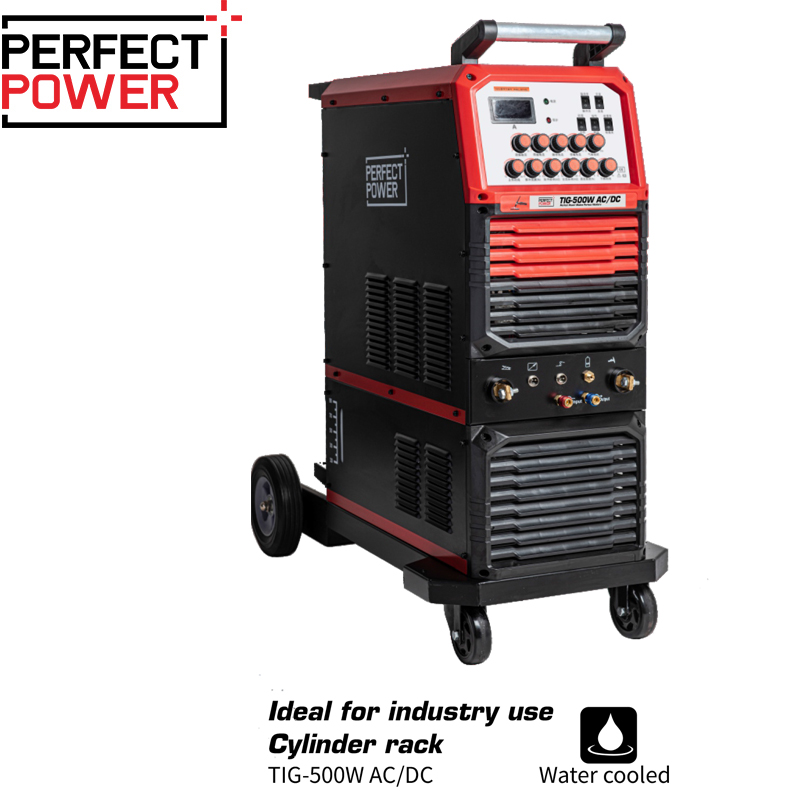

TIG-500W TIG Inverter Welding Machine

Description

1.Adjustable AC frequency per your needs.
2.PWM control technology enables fast and stable arc starting.
3.5 welding processes: AC TIG; AC pulse TIG; DC TIG; DC pulse TIG; ARC.
4.Cleaning zone width can be adjusted to meet high technological requirements.
5.Excellent welding capability: aluminum, copper, carbon steel, stainless steel and
6.other metal materials.

Additional information

Model

TIG-500W AC/DC

Power input AC(V)

3ph 380V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity(kVA)

17.8

Rated current input(A)

27

Welding current range(A)

30-500(DC) 70-450(AC)

Open circuit voltage DC(V)

65

Rated duty cycle (60%/100%)

500A/387A

Power factor (cosΦ)

0.85

IP grade

IP21S

Insulation grade

F

Dimensions(mm)

1030*550*1160

N.W.(kg)

75
