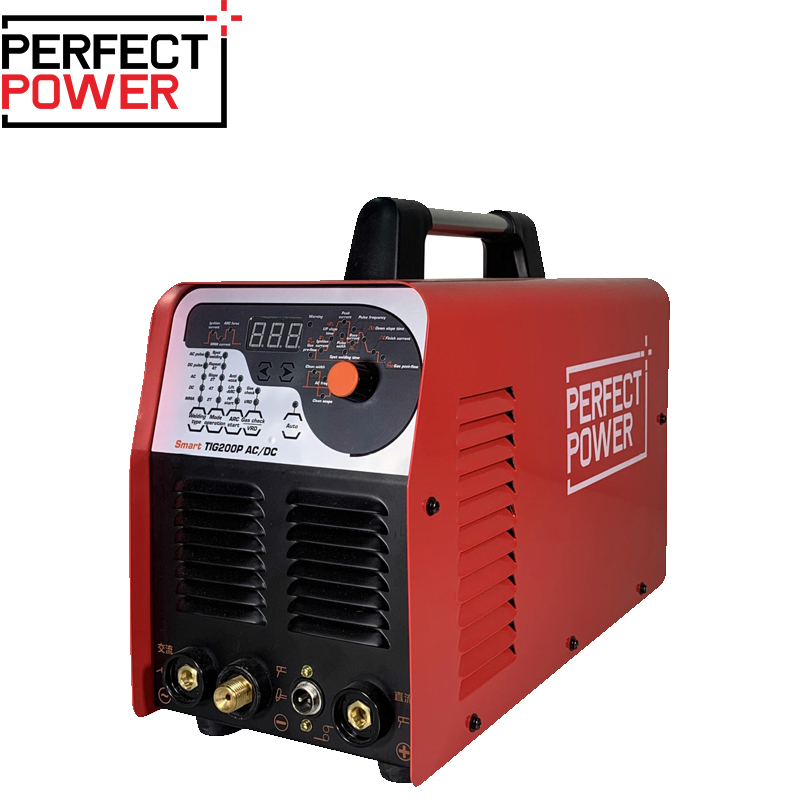

TIG- 200P IGBT Inverter TIG AC / DC Welding Machine

Description

1. Multi-function welding-AC TIG,AC pulsed TIG,DC TIG,DC pulsed TIG,MMAand Auto welding
2. High-frequency arc start with a high success rate.
3. Memory function for easy operation,10 sets of parameters can be saved.
4. Adjustable clean width and clean scope
5. Optional torch with amperage control & optional foot pedal switch
6. Digital control technology and one-knob intelligent control panel
7. Intelligent over-voltage, low-voltage,over-current, and over-heat protection, safe and reliable
8. Capable for different shapes welding, like butt-joint, corner joint, T-joint,lap-joint and cruciform joint

Additional information

Model

TIG-200P

Power input AC(V)

1ph 220V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity(kVA)

6.2(TIG)/8.4(MMA)

Rated current input(A)

28(TIG)/38.1(MMA)

Rated output current(A)/voltage(V)

200/18.0(TIG) 180/27.2(MMA)

Welding current range(A)

5-200(TIG) 20-180(MMA)

Open circuit voltage DC(V)

62

Rated duty cycle(%)

40

IP grade

IP21

Insulation grade

F

Dimensions(mm)

600*400*475

N.W.(kg)

20
