PL-6573 self-calibrating computer wheel balancer

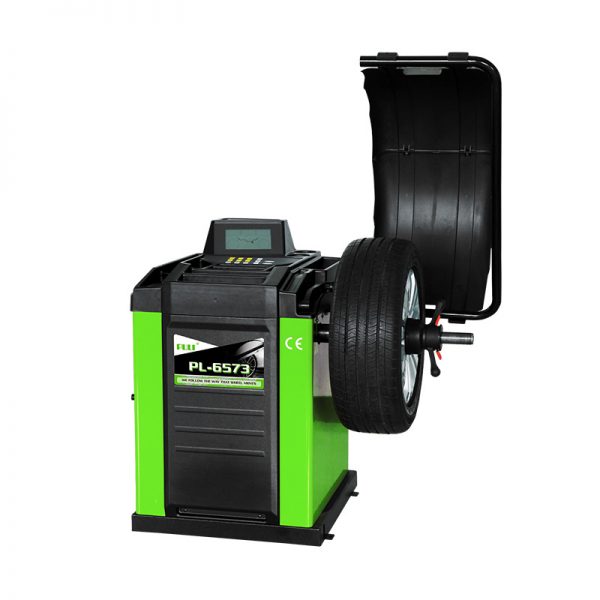

PL-6573 Self-Calibrating 2D Computer Wheel Balancer
PL-6573 2D Wheel Balancer is a no-nonsense balancer with digital display,adding tracking sticky balancing mode, special for high-class wheel uses stick-on weights only. Program 10 balancing modes features into this balancer to handle car and light truck tires assemblies. Displays split weight and hidden weight designation. Features an automatic distance plus diameter measurements caliper and automatic ALU S program.

SKU: PL-6573 Wheel Balancer Categories: ,

Description

PL-6573 Self-Calibrating 2D Computer Wheel Balancer
PL-6573 2D Wheel Balancer is a no-nonsense balancer with digital display,adding tracking sticky balancing mode, special for high-class wheel uses stick-on weights only. Program 10 balancing modes features into this balancer to handle car and light truck tires assemblies. Displays split weight and hidden weight designation. Features an automatic distance plus diameter measurements caliper and automatic ALU S program.

Features:
1. 7″ LCD display.
2. Self-calibration and self-diagnosis functions.
3. Automatic distance and wheel diameter measuring, allowing faster data input.
4. Adding tracking sticky balancing mode, special for high-class wheel uses stick-on weights only.

Additional information

Product Code

PL-6573 Wheel Balancer

Balancing Modes

10 Balancing Modes

Balancing speed

200 r.p.m

Rim diameter

252-610 mm 10"-24"

Rim width

40-510 mm 1.5"-20"

Split and hidden weight solution

X

Measuring time

8s

Balancing accuracy

±1g(±0.04 oz)

Max. wheel weight

65 kg (143 lbs)

Power supply voltage options

110v (1ph)/ 220v (1/3ph)/380v(3ph)

Option motor power

0.20/0.37kw

Noise level

< 70dB

N/G weight

100/116 kg (220/255 lbs)

Package dimension

960*760*1180mm (3.1*2.5*3.8ft)
