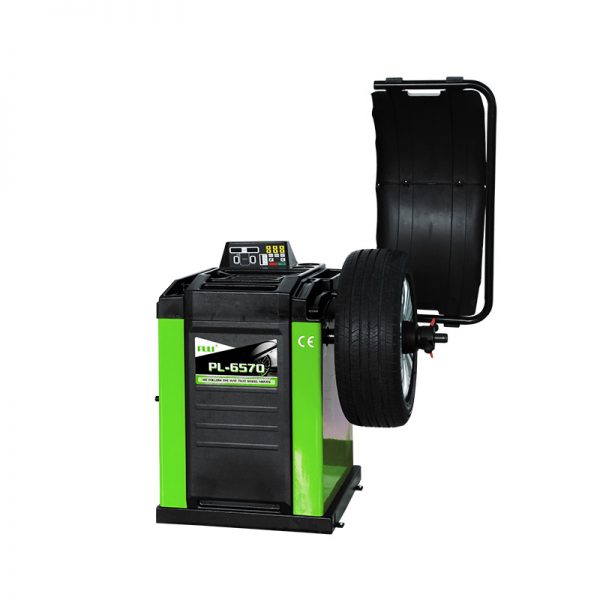

PL-6570 Self-Calibrating 2D Computer Wheel Balancer
PL-6570 2D Wheel Balancer is a no-nonsense balancer with digital display. Program 6 balancing modes features into this balancer to handle car and light truck tires assemblies. Displays split weight and hidden weight designation. Features an automatic distance plus diameter measurements caliper and automatic ALU S program.
PL-6570 Self-Calibrating 2D Computer Wheel Balancer
PL-6570 2D Wheel Balancer is a no-nonsense balancer with digital display. Program 6 balancing modes features into this balancer to handle car and light truck tires assemblies. Displays split weight and hidden weight designation. Features an automatic distance plus diameter measurements caliper and automatic ALU S program.
Features:
1. LED light & Digital display.
2. Providing self-calibration and self-diagnosis functions.
| Product Code | PL-6570 Wheel Balancer |
|---|---|
| Balancing Modes | 6 Balancing Modes |
| Balancing speed | 200 r.p.m |
| Rim diameter | 252-610 mm 10"-24" |
| Rim width | 40-510 mm 1.5"-20" |
| Split and hidden weight solution | X |
| Measuring time | 8s |
| Balancing accuracy | ±1g(±0.04 oz) |
| Max. wheel weight | 65 kg (143 lbs) |
| Power supply voltage options | 110v (1ph)/ 220v (1/3ph)/380v(3ph) |
| Option motor power | 0.20/0.37kw |
| Noise level | < 70dB |
| N/G weight | 95/116 kg (210/256 lbs) |
| Package dimension | 960*760*1180mm (3.1*2.5*3.8ft) |
