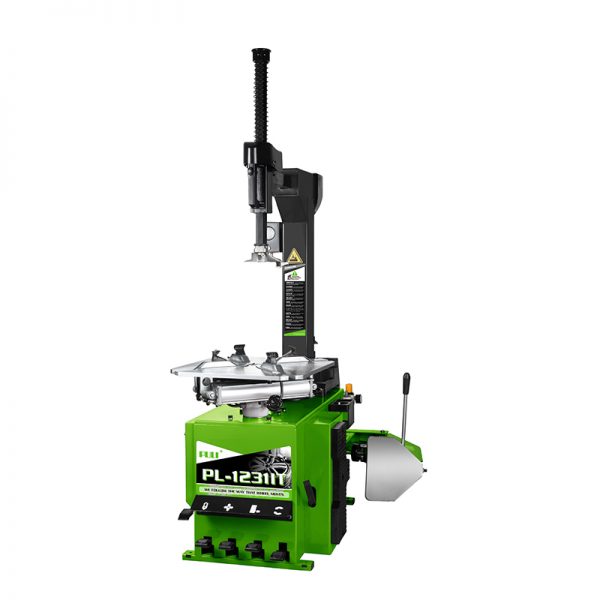

PL-1231IT Semi-Automatic Tilt Back Tower Tire Changer

PL-1231it tire changer machine semi-Automatic tilt back tire changer with dual assist arm for tires with a rim from 12″ to 26″ (max. wheel diameter 1143 mm./45″, max. wheel width 406mm./16″). Suggested for low-mid volume tire-shops, garages and repair shops.

SKU: PL-1231IT Categories: , Tag:

Description

Semi-Automatic tilt back tire changer with dual assist arm for tires with a rim from 12″ to 26″ (max. wheel diameter 1143 mm./45″, max. wheel width 406mm./16″). Suggested for low-mid volume tire-shops, garages and repair shops.

PL-1291IT tire changer machine represents the PULI entry-level solution, suggested for low-mid volume shops, garages and repair shops. Simplicity is the strong point of this model, which combines solid and reliable design, PULI experience and a classic well-known operating mode.

Features:

1. Full-automatic pneumatic tilting column
2. Vertical arm positioning automatically and synchronous pneumatic locked at any optional position
3. The round column is used as the air tank
4. Clamping jaws are totally one-step die casting
5. Max working clamping 26″
6. RIM CLAMPING METHOD:26” large turntable and high power motor, which increase working strength
7. Quick air booster, esp. suitable for low profile tyres

Additional information

External clamping

12~23"

Internal clamping

14~26"

Max.Wheel diameter

≤1143mm (45")

Max.Wheel width

≤406mm (16")

Working Pressure

8-10bar (116-145 psi)

Opitonal Power supply

110 V (1 ph)/ 220 V (1 ph/3 ph)/ 380 V (3 ph)

Optional Mottor power

0.55/0.75/1.1 kw

Noise Level

<75 dB

Dimension(main body)

900*1130*950mm (3.0*3.7*3.1ft)

N/G weight(main body)

228/256 kg (473/535 lbs)
