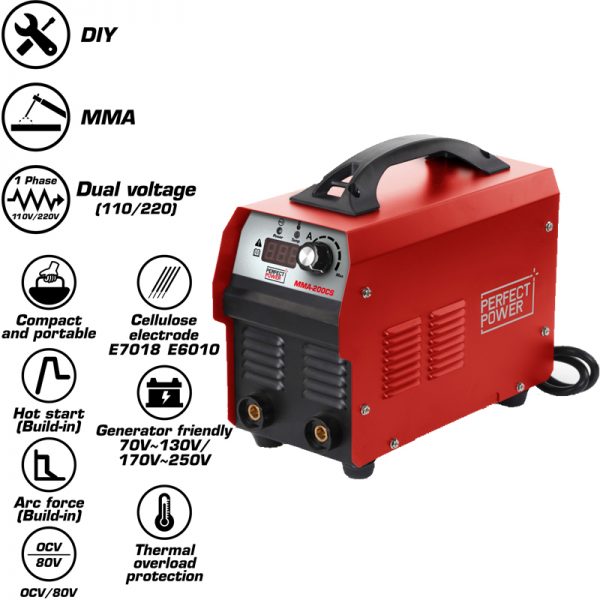

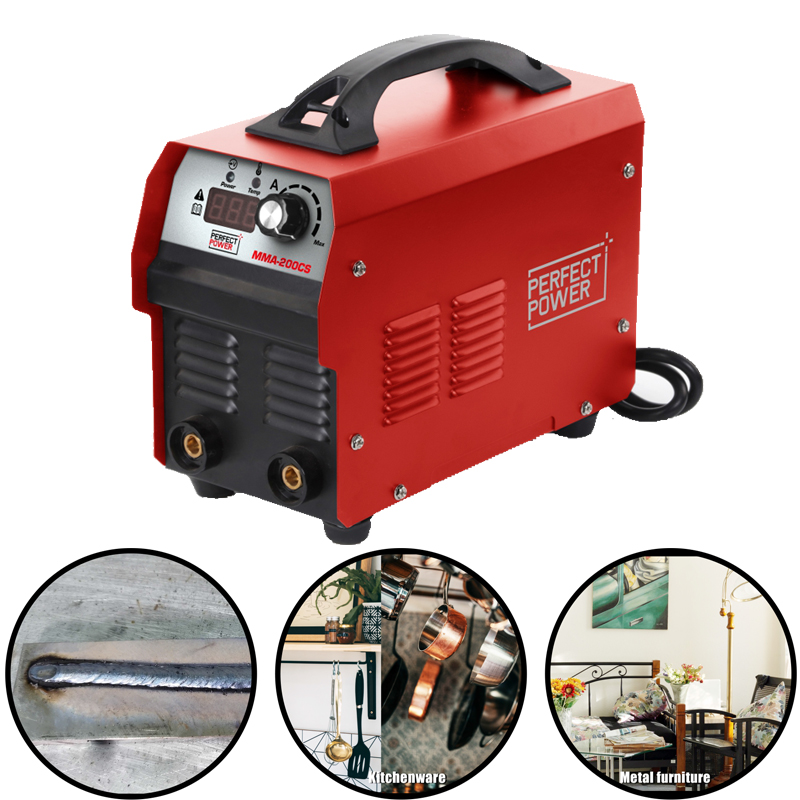

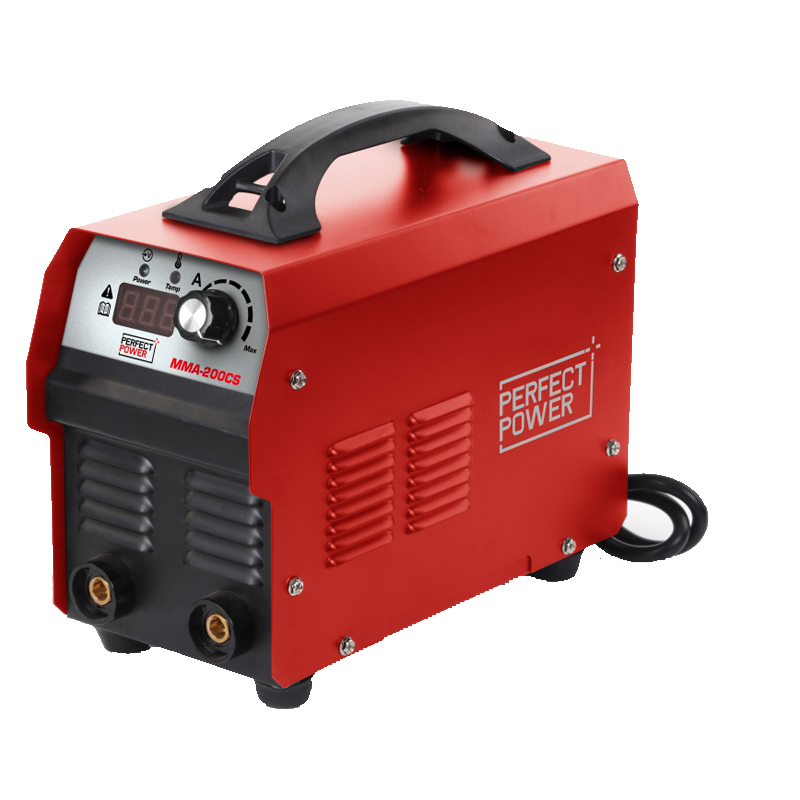

MMA-200CS IGBT Inverter MMA Stick Welding Machine

Description

1.80V open circuit voltage ensures smooth cellulose electrode welding, such as E7018 and E6010.
2.Compact design, lightweight, but robust.
3.User-friendly and cost effective.
4.Arc Force, Anti-Stick and Hot Start technology enable easy arc starting, arc stability and smooth welding.
5.Generator Friendly : wide voltage range supporting, 70V ~ 130v /170V ~ 250V.
6.Overload protection.
7.You can just plug and then weld with a complete accessory set : MMA welding cable, earth cable, welding mask and steel brush.

Additional information

Model

MMA-200CS

Power input AC(V)

1ph 110V/220V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity(kVA)

7.0(220V) 3.8(110V)

Rated current input(A)

32(220V) 35(110V)

Rated output current(A)/voltage(V)

200/28.0(220V) 120/24.8(110V)

Welding current range(A)

20-200(220V) 20-120(110V)

Open circuit voltage DC(V)

80

Rated duty cycle(%)

60

IP grade

IP21S

Insulation grade

F

Dimensions(mm)

380*240*300

N.W(kg)

3.5
