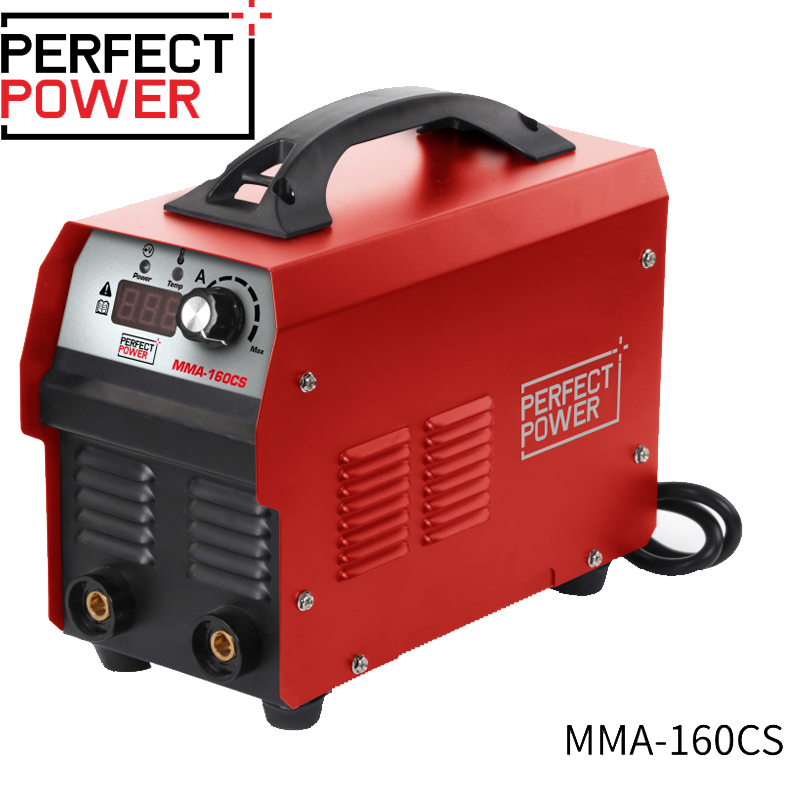

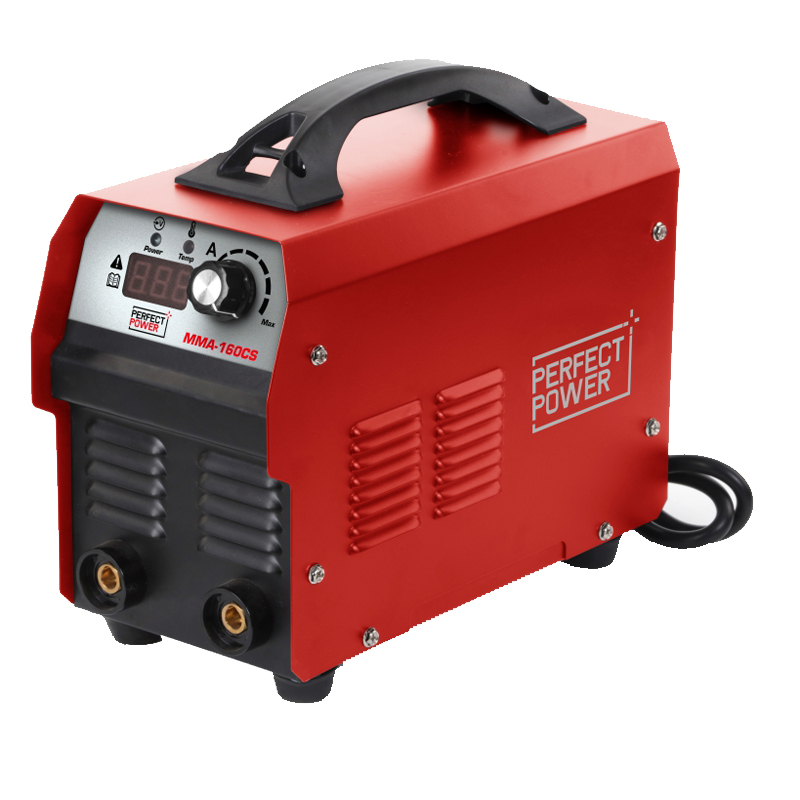

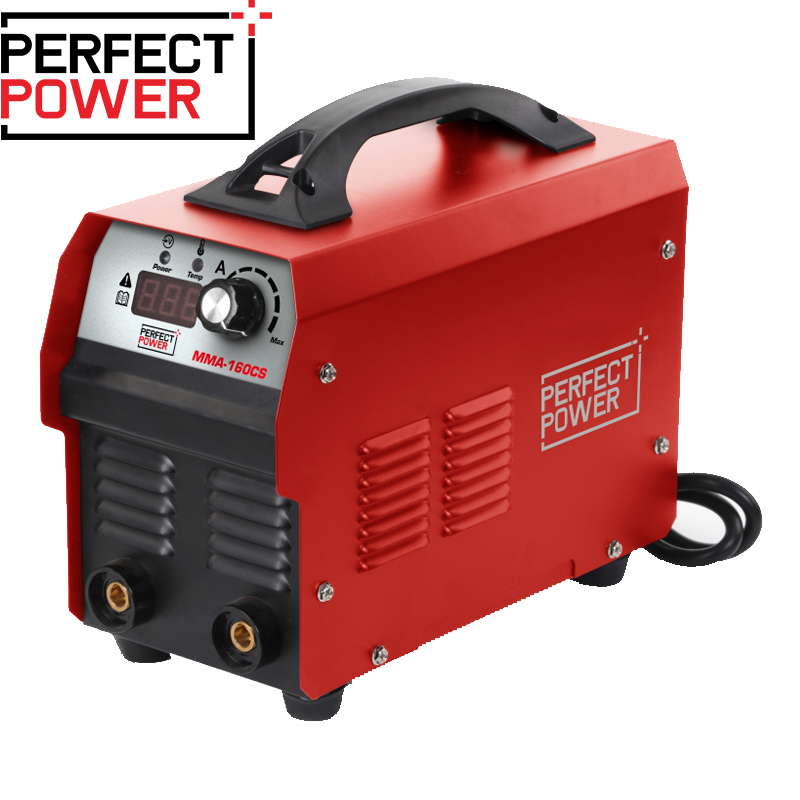

MMA-160CS IGBT Inverter MMA Stick Welding Machine

Description

1. 80V open-circuit voltage ensures smooth cellulose electrode welding, such as E7018 and E6010.
2. Compact design, lightweight, but robust.
3. User-friendly and cost-effective.
4. Arc Force, Anti-Stick, and Hot Start technology enable easy arc starting, arc stability, and smooth welding.
5. Generator Friendly: wide voltage range supporting, 70V ~ 130V/ 170V ~ 250V.
6. Overload protection. You can just plug and then weld with a complete accessory set: MMA welding cable, earth cable, welding mask, and a steel brush.

Additional information

Model

MMA-160CS

Power input AC(V)

1ph 110V/220V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity(kVA)

5.3(220V) 2.9(110V)

Rated current input(A)

24(220V) 26(110V)

Rated output current(A)/voltage(V)

160/26.4(220V) 95/23.8 (110V)

Welding current range(A)

20-160(220V) 20-95 (110V)

Open circuit voltage DC(V)

80

Rated duty cycle(%)

40

IP grade

IP21S

Insulation grade

F

Dimensions(mm)

380*240*300

N.W(kg)

3.2
