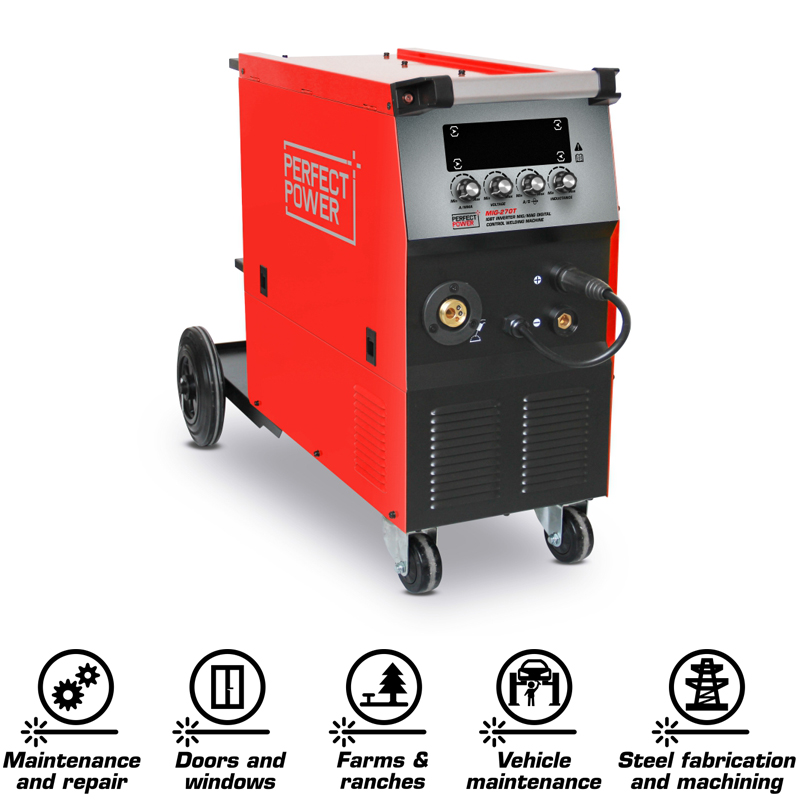

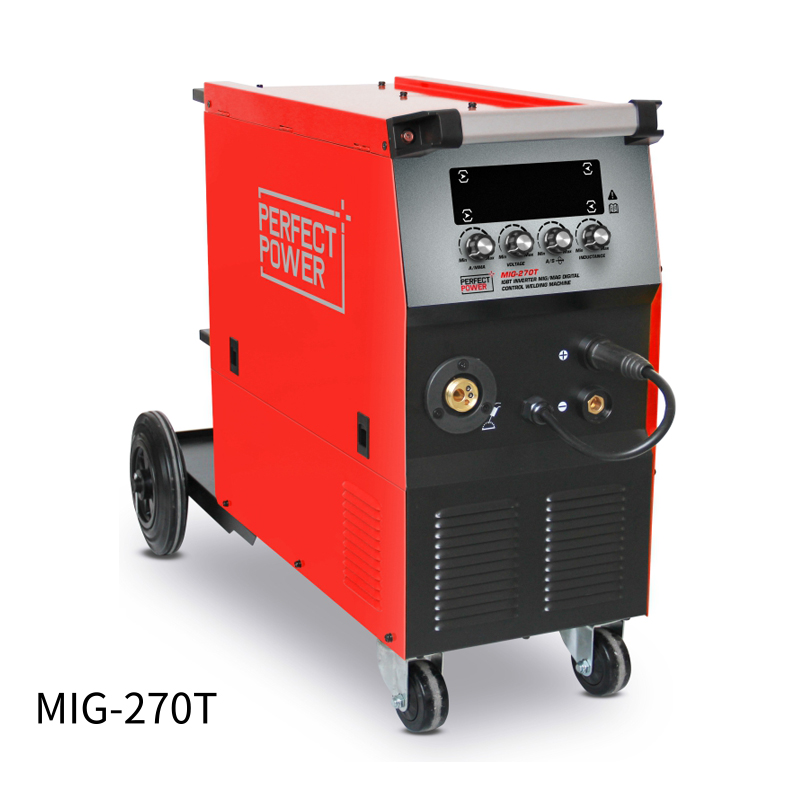

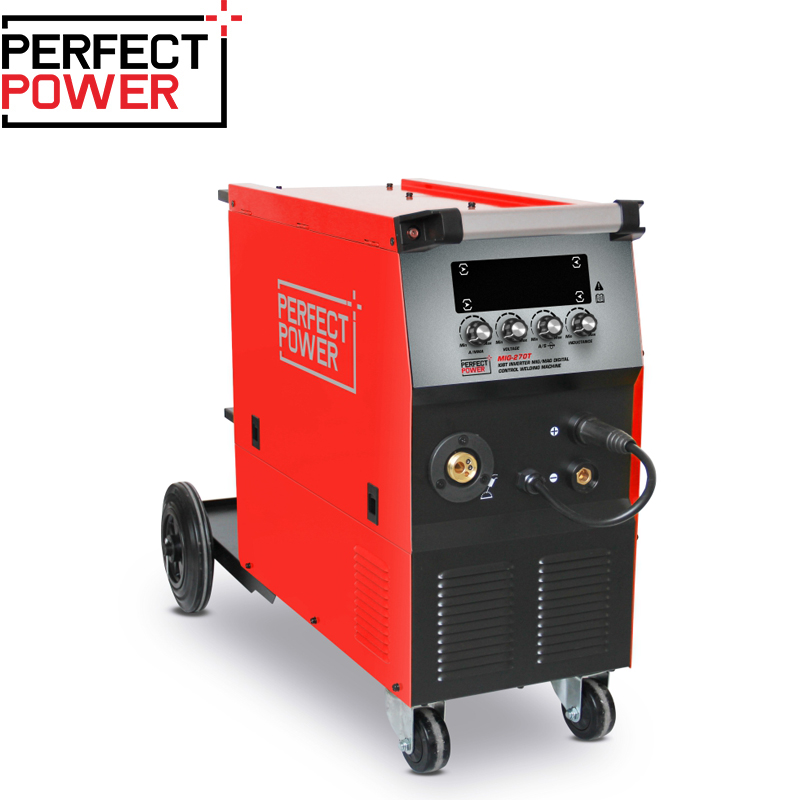

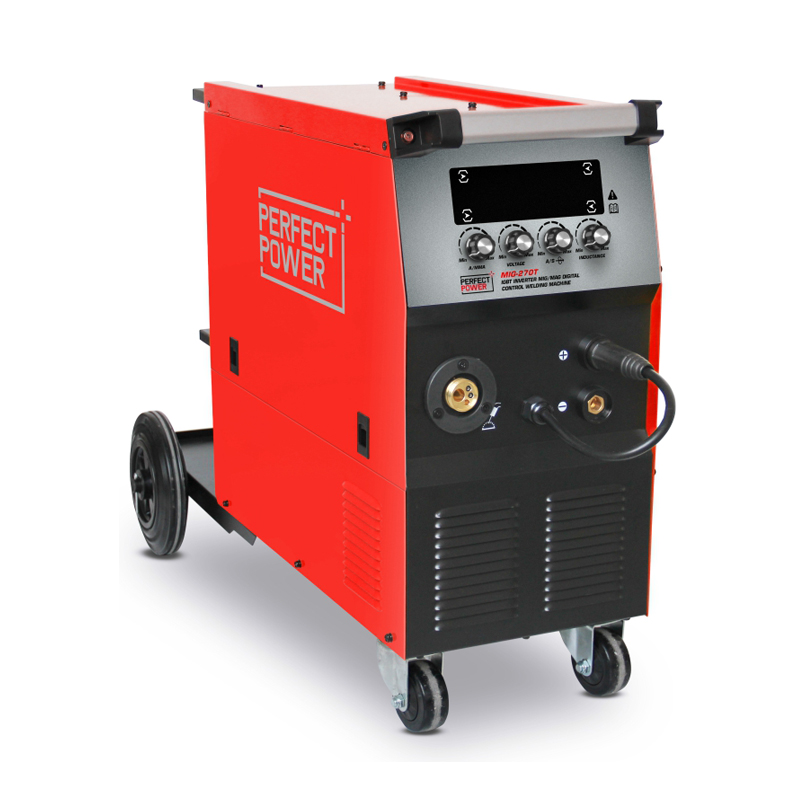

MIG-270T MIG MAG IGBT Inverter Welding Machine

Description

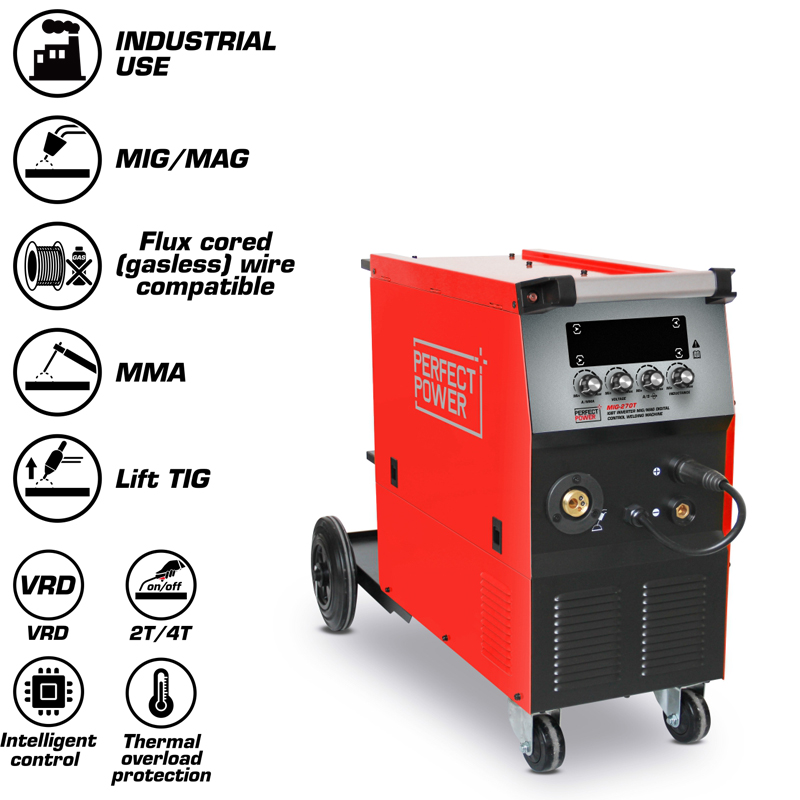

1. Multi-function welding – MIG/MAG, LIFT TIG, MMA, Spool Gun and FLUX CORED Wire welding.
2. Capable for 15kg wire spool.
3. Professional MMA welding process with VRD function.
4. 2T/4T function.
5. Stable arc with less spatter.
6. Ideal for use in outdoor and indoor conditions.
7. Standard equipped with cylinder rack.

Additional information

Model

MIG-270T

Power input AC(V)

3pH 380V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity(kVA)

13

Rated current input(A)

19.7

Rated output current(A)/voltage(V)

270/27.5

Welding current range(A)

50-270

Open circuit voltage DC(V)

52

Rated duty cycle(%)

60

Wire Feeding Speed(M/min)

2-24

IP grade

IP21S

Insulation grade

H

Dimensions(mm)

728*423*718

Weight (KG)

39.5

Wire Melting Type

short circuit transfer
