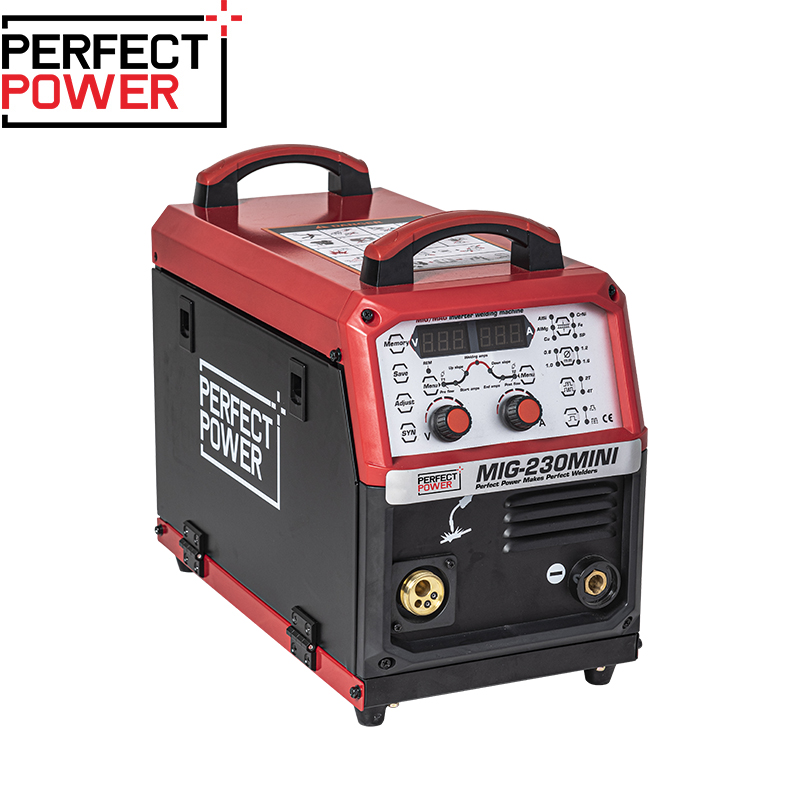

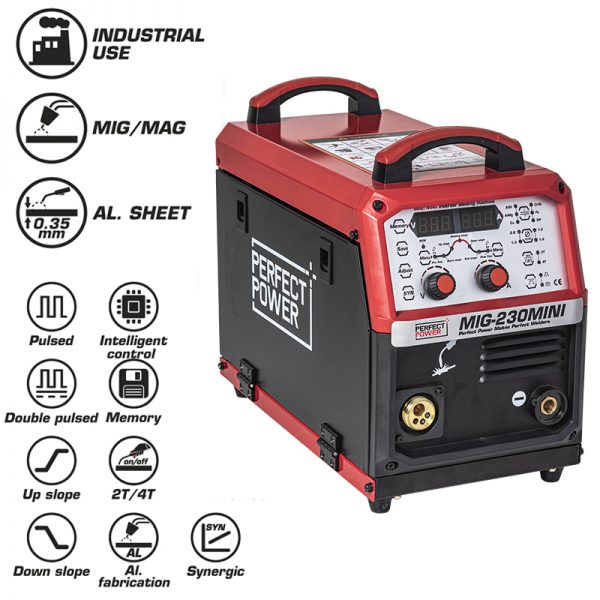

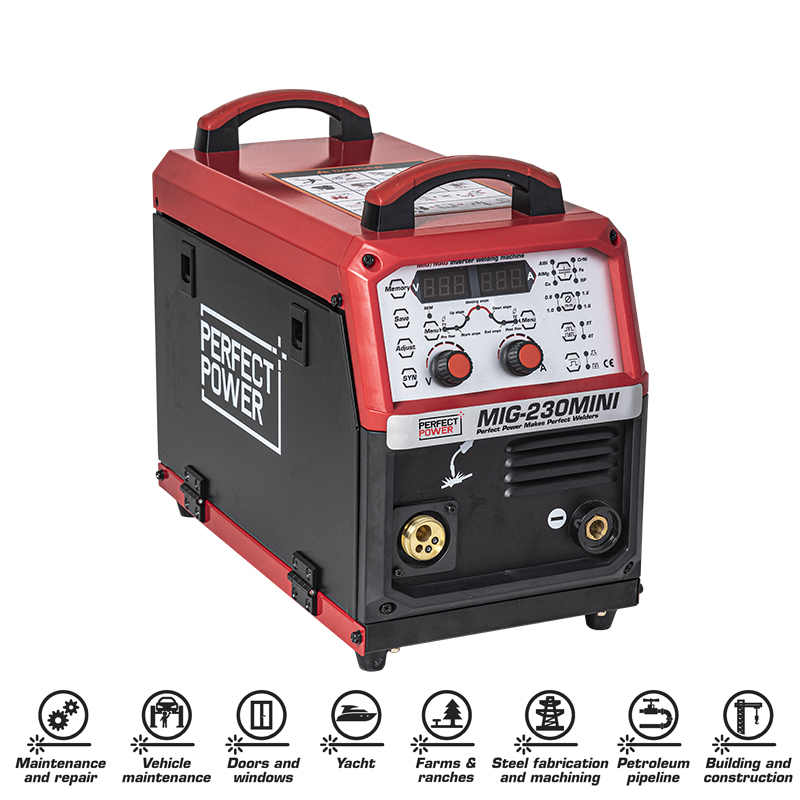

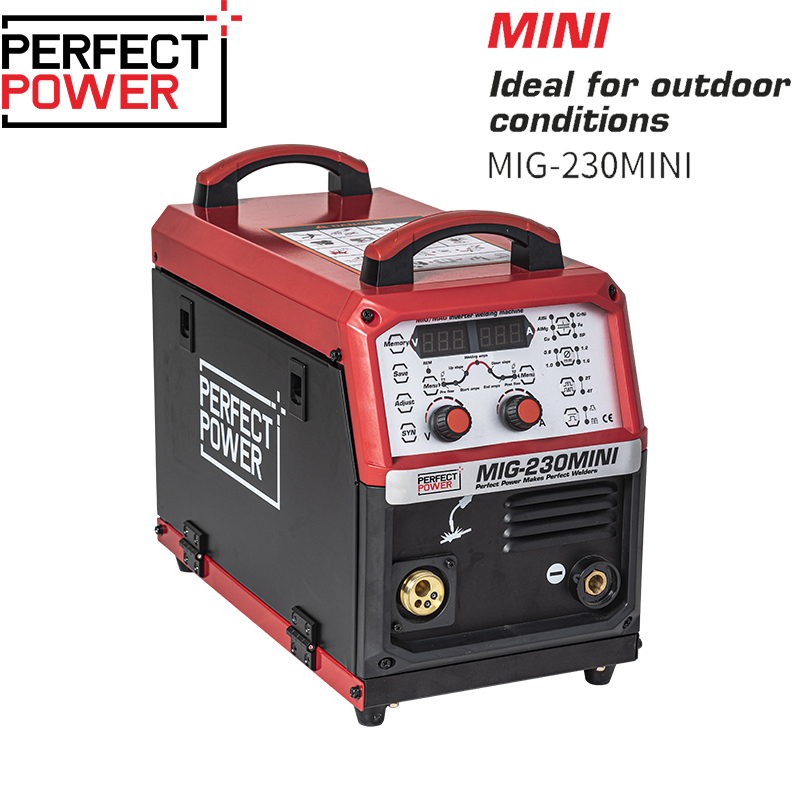

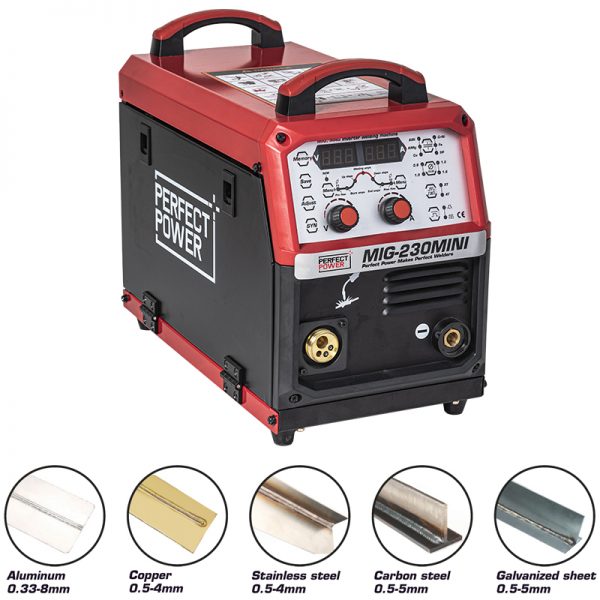

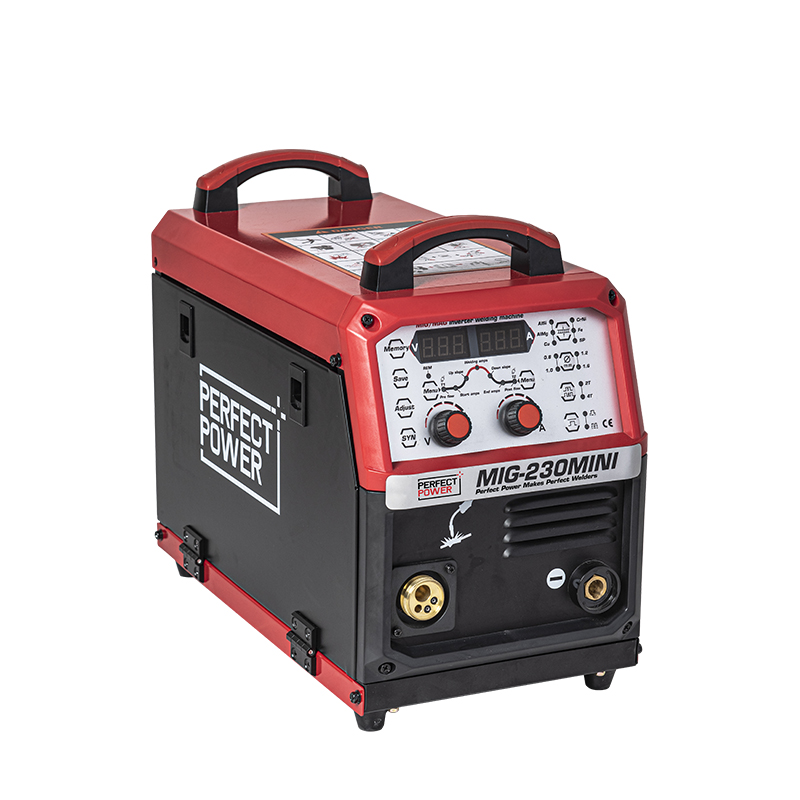

MIG-230 MINI MIG MAG IGBT Inverter Welding Machine

Description

The MIG-230MINI is a single-phase MIG welding machine that you can bring along and use for welding operations with or without gas. This machine is designed for DIY projects and it’s ideal for outdoor conditions.

1. Expert in welding thin metal material.
2. Patented digital control software technology.
3.Synergic function.
4. Inverter frequency: IGBT 35 kHz.
5. Welding parameters memoried function.
6. Overload protection&loss-phase and lack-voltage protection.
7. Could work with industrial robot via communication modules.
8. Welding process: MIG/MAG; pulsed MIG/MAG; double pulse MIG/MAG.

Additional information

Model

MIG-230MINI

Power input AC(V)

1ph 220V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity(kVA)

6.4

Rated current input(A)

29

Rated output current(A)/voltage(V)

220/25

Welding current range(A)

10-220

Open circuit voltage DC(V)

65

Rated duty cycle(%)

60%

Wire Feeding Speed(M/min)

2-15

IP grade

IP21

Insulation grade

H

Dimensions(mm)

530*400*470

Weight (KG)

24

Wire Melting Type

globular transfer
