Description
1. Multi-function welding – MIG/MAG, MMA and FLUX CORED Wire welding.
2. Capable for 1kg and 5kg wire spool. 3. 2T/4T function.
4. Stable arc with less spatter.
5. Ideal for use in outdoor and indoor conditions.
6. High-cost performance

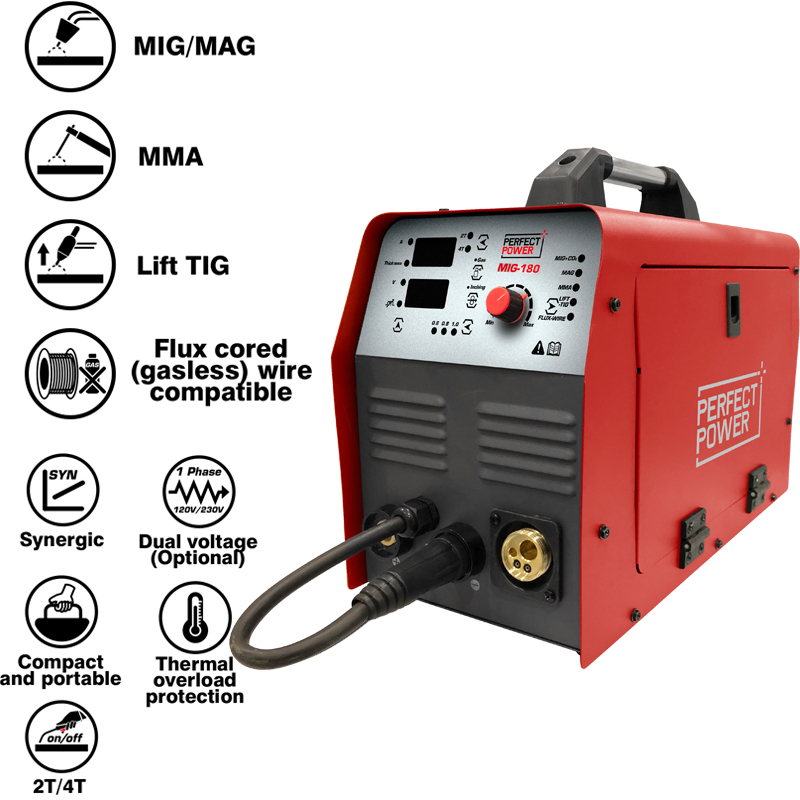

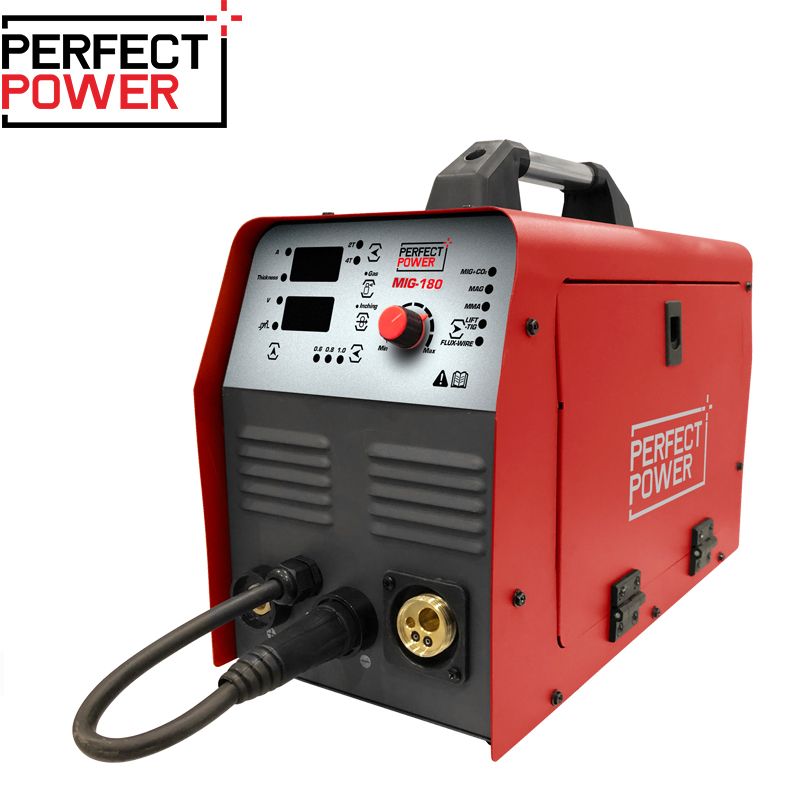

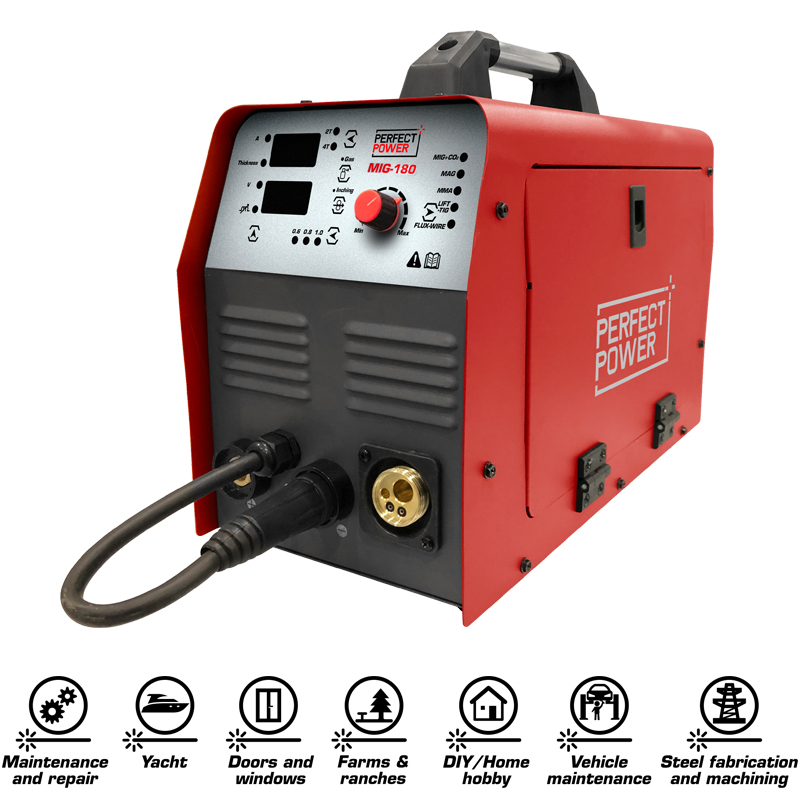

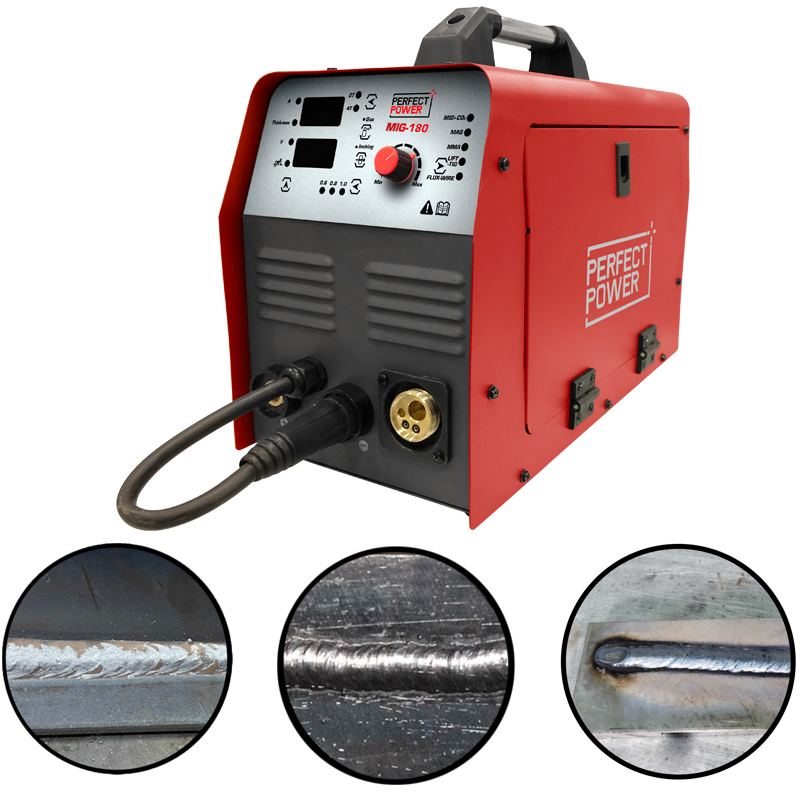

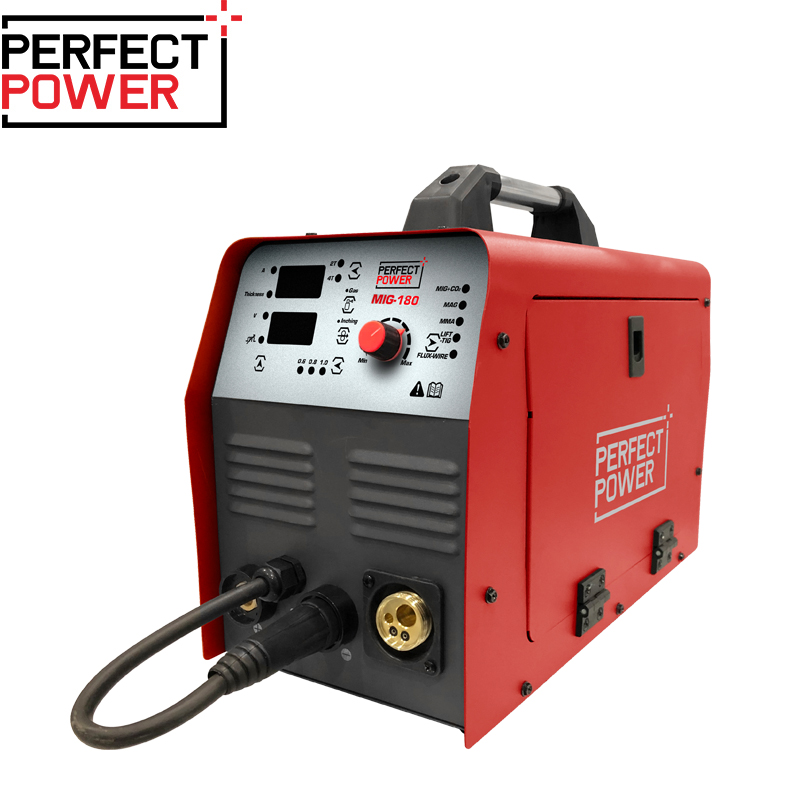

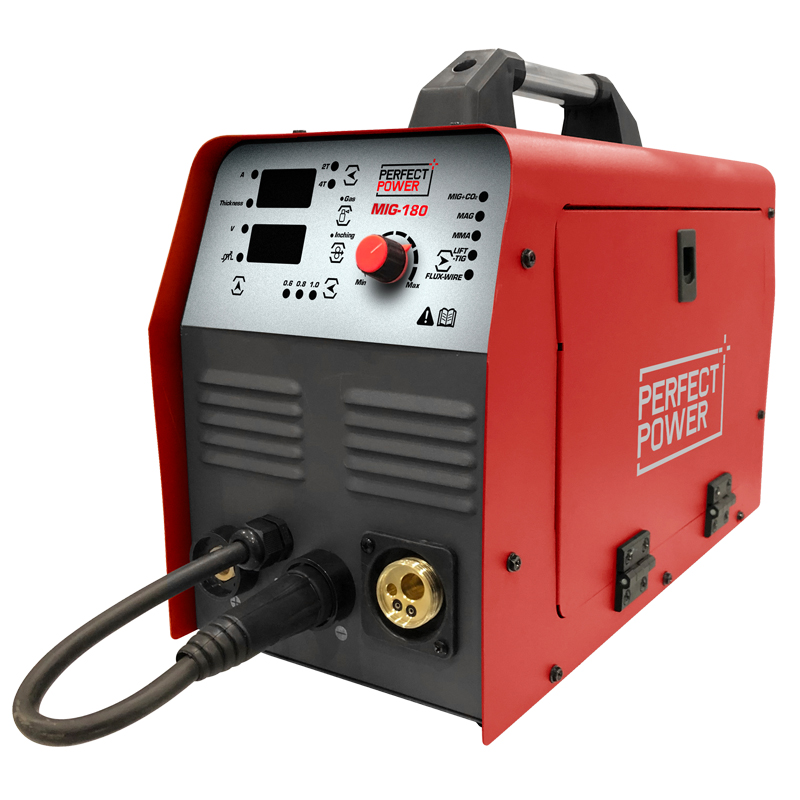

MIG-180 Gas Gasless MIG MAG IGBT Inverter Welding Machine
Additional information
| Model | MIG-180 |
|---|---|
| Power input AC(V) | 1pH 220V ±15% |
| Power input frequency(Hz) | 50/60 |
| Max. Load Power Capacity(kVA) | 4.9 |
| Rated current input(A) | 29 |
| Rated output current(A)/voltage(V) | 180/23.0（MIG） 160/26.4（MMA） |
| Welding current range(A) | 30-180（MIG） 20-160（MMA） |
| Open circuit voltage DC(V) | 62 |
| Rated duty cycle(%) | 60 |
| Wire Feeding Speed(M/min) | 2～15 |
| IP grade | IP21 |
| Insulation grade | F |
| Dimensions(mm) | 580*305*405 |
| Weight (KG) | 14 |
| Wire Melting Type | short circuit transfer |
