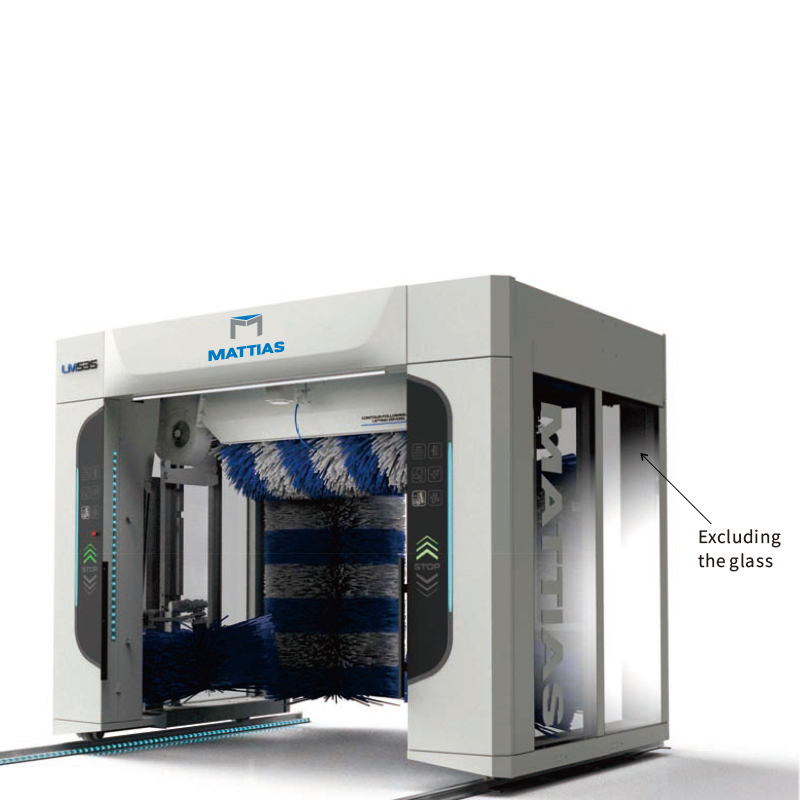

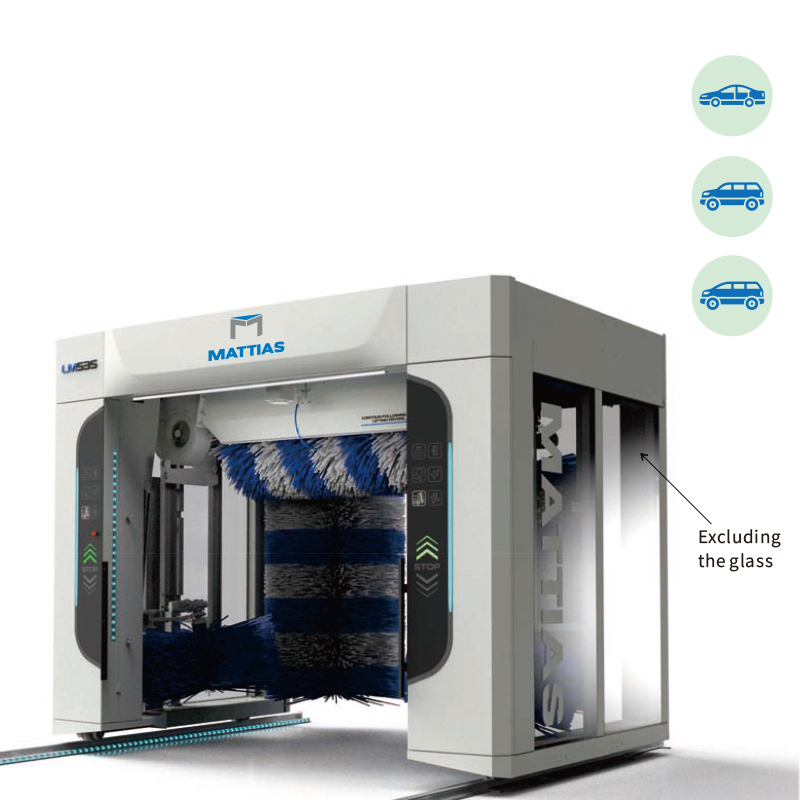

M-LM535 Rollover Automatic Car Wash Machine

Perfect for both commercial and SUVs (up to 7 seats)

M-LM535  Automatic Car Wash Equipment comes with a host of exciting features. The car wash equipment is state of the art equipment with advanced control system which continuously calculating giving it an Artificial Intelligence to exceute various functions and make its own decision based on the car shape and size.

All the three brushes sense the car independently. The machine adjusts the angle of brushes based on the car profile. The brushes do the front and rear overlapping, attarctive LED lights…. So many such important features.

  • Car Wash Centers
  • Car Factories
  • Auto Dealerships
  • Mall / Shopping Area / Airport Parking Lots
  • Fleeting Management and Services
  • Office Parking Lots
  • Residential Complexes
  • Automobile Stockyards

Description

Perfect for both commercial and SUVs (up to 7 seats)

Mattias introduces an all-new, in-bay wash system that offers your customers and higher profit potential for you. The all-new M-LM535 three-brush, the gantry-style workhorse is loaded with technologically advanced features and controls. Designed for easy installation and maintenance, the M-LM535 is a compact profit-maker that will have you cleaning up in no time.
Product Features:
* Wide body pass-through design for a wide range of models.
* The equipment adopts a non-rusting treatment frame for longer service life.
* Cross-over washing keeps the front and rear bumper clean.
* The machine is equipped with precision sensors that can accurately sense the position of the vehicle.
* The contour-following dryer with advanced technology will effectively remove the vehicle of the remaining water.
* Standard with the contour-tracking top brush.
* Adopts AGV(Automatic Guided Vehicle) technology to protect both vehicle and the equipment.
* Equipped with fault self-test function.
* Provide an intelligent parking guidance system.

Functional Configuration

Dryer SystemTop Dryer2 Contour-following lifting dryers
Side Dryer2 fixed dryers
Brush SystemTop BrushContour-following lifting
Side BrushMotor-driven,chain-driven travel system
Small BrushStandard small vertical brush
Material of BrushEVA foam brush
Wash Liquid SystemCar Wash LiquidUser-customized mixing ratio carwash soap,standard ratio pump for automatic mixing
Water WaxUser-customized mixing ratio water wax,standard ratio pump for automatic mixing
Travel SystemMotor-driven,chain-driven travel system
Control SystemMitsubishi PLC control system
Wireless Remote ControlOptional
DisplayGate LED display interface, intelligent operator console 10 ‘LCD touch screen
Intelligent Operating ConsoleStandard
Car wash Quantity TrackingStandard
Fault Self-diagnosisStandard
Rearview Mirror Deflection/
Clearing Function
Standard
Beyond Centerline WashStandard
Smart Parking GuidanceOptional
Overall StructureSheet metal welded frames hot dip galvanised
Multi-stage Submersible PumpStandard(water pump pressure 0.96MPa)
High-pressure Water Pre-rinsingOptional ( plunger pump, pump water pressure 10MPa)
Intelligent Low-temperature Start-stop SystemOptional
Voice Broadcast SystemOptional
Wide-angle LensOptional
WeChat Payment FunctionOptional(Optional for China only)
Customer-supplied Water Tank Specifications2tons
Customer-supplied Air Compressor Specifications2.2kW, 120L, 0.8MPa
Mode 1(→) Foam Car Wash Brush + Spray Wax, (←) Air Drying
Mode 2(→) Foam Car Wash Brushing, (←) Spray Waxing
Mode 3(→) Foam car wash scrubbing, (←) water scrubbing + spraying with water wax, (→+←) air drying
Mode 4(→+←) Air-drying

Technical Parameters

Applicable Car TypesPassenger car, SUV, minivan, and other vehicles with less than 7 seats

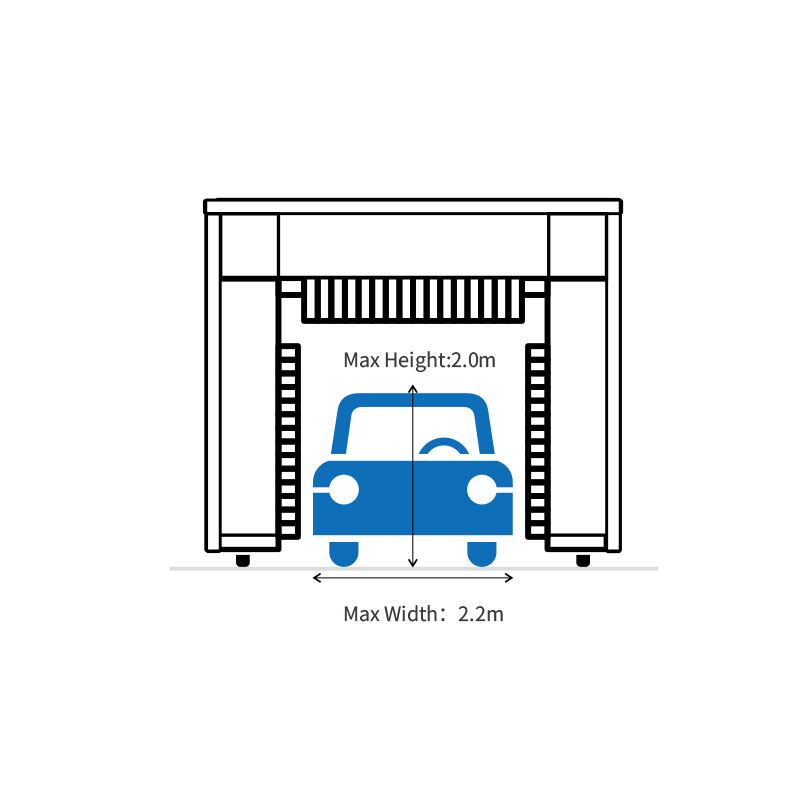

Max.Washable Car Dimensions(L*W*H)5.4m × 2.2m × 2.0m
Car Wash TimeMode 1 Around 3.25min/Car,Mode 2 Around 3min/Car,Mode 3 Around 6min/Car,Mode 4 Around 2.5min/Car
Shampoo ConsumptionMode 1 Around 19mL/Car,Mode 2 Around 19mL/Car,Mode 3 Around 19mL/Car
Wax ConsumptionMode 1 Around 15mL/Car,Mode 3 Around 15mL/Car
Power ConsumptionMode 1 Around 0.95 kWh/Car,Mode 2 Around 0.7 kWh/Car,Mode 3 Around 1.5 kWh/Car,Mode 4 Around 0.8 kWh/Car
Water ConsumptionMode 1 Around 110L/Car,Mode 2 Around 150L/Car,Mode 3 Around 150L/Car

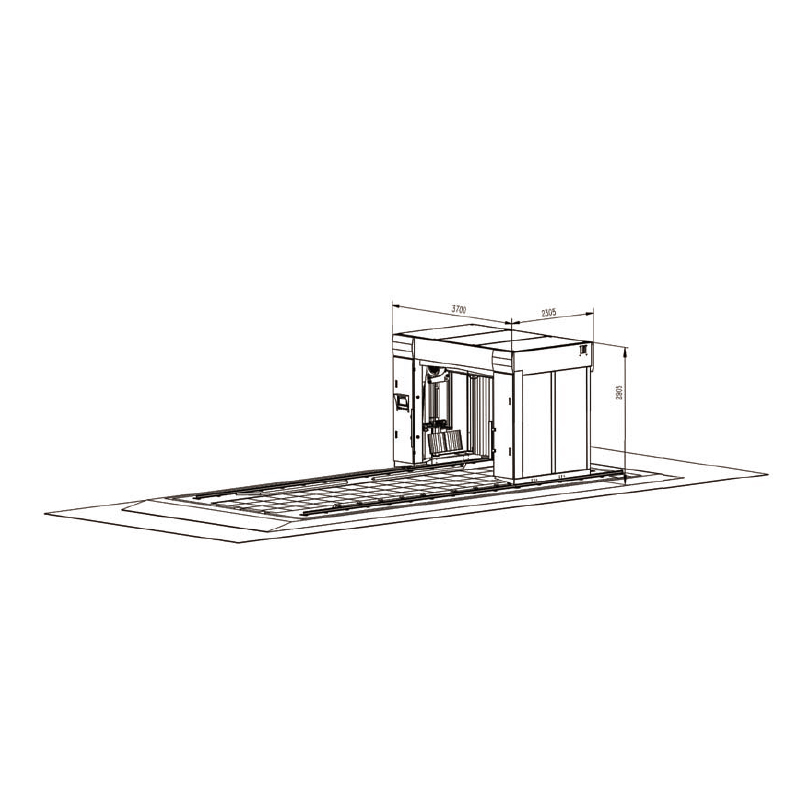

Machine Dimensions(L * W * H)2.45m × 3.7m × 2.9m
Track Dimensions(L * W )9.5m × 3.29m
Installation Dimensions(L * W * H)10m × 4m × (>3.5m)
Air Source Requirement0.6~0.8MPa
Rated Voltage of Machine3-phase AC380V 50Hz
Rated Power of Machine30.5kW
Top Brush Rotation Motor0.75kW*1
Top Brush Lifting Motor0.75kW*1
Side Brush Rotation Motor0.75kW*2
Side brush opening and closing motor0.2kW*2
Small Brush Motor0.37kW*2
Travelling Motor0.18kW*2
Top Dryer Motor5.5kW*2
Side Dryer Motor5.5kW*2
Top Dryer Lifting Motor0.75kW*1
Submersible Pump Motor2.2kW*1
Submersible Pump Pressures0.96MPa
High-pressure Water Pump Motor18.5KW*1(Optional)
Pressure of High-pressure Water Pump10MPa(Optional)
FrameHot-dip galvanized profiles
Programmable ControllerMitsubishi, Japan
Variable Frequency DriveZhongchen (Orbital), Shanghai, China
Infrared Photoelectric SwitchROKO, Taiwan, China
Proximity SwitchROKO, Taiwan, China
AC ContactorSchneider, France
Thermal RelaySchneider, France
Air SwitchDelixi, Zhejiang,China
Waterproof Gear MotorSITI
Pressure Reducing ValveAirTax,Taiwan China
Pressure Regulating and Filtering ValveAirTax,Taiwan China
Two-Position Five-Way ValveAirTax,Taiwan China
Pneumatic CylinderAirTax,Taiwan China
Submersible PumpKaili, Shanghai China
High-Pressure Water PumpPINFL,Germany
