Products

HomeAutomatic Car Wash MachinesM-BS0700G Large-Scale Bus Wash Machine

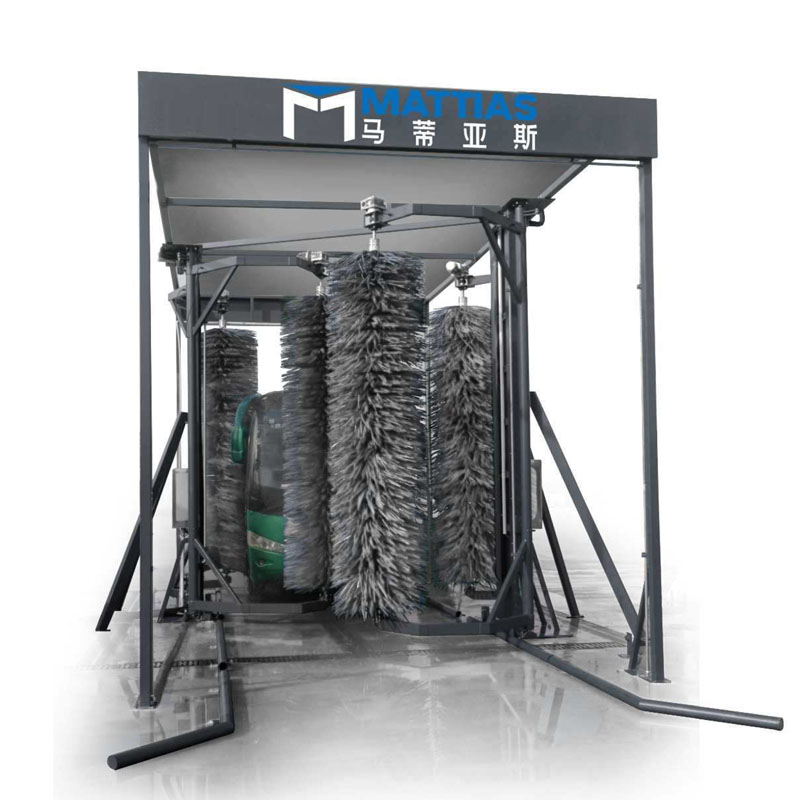

M-BS0700G Large-Scale Bus Wash Machine

The M-BS0700G Bus Washer is a vehicle wash machine designed especially for large vehicles. Installing the system reduces driver workload and work hours, thereby improving the working environment. In recent years, the system has been increasingly adopted in Public transport (also known as public transportation, public transit, mass transit, or simply transit) centers.

This drive-through system is the perfect friction wash cleaning solution for transit, paratransit, and school buses. The most popular configuration includes an overlapping 6-brush system with rear wrap functionality, combined with a high-pressure spinner and v-sprays for touchless cleaning of the front surfaces, bike racks, behind the bike racks, mirrors, wheels, and chassis.

Description

The M-BS0700G Bus Washer is a vehicle wash machine designed especially for large vehicles. Installing the system reduces driver workload and work hours, thereby improving the working environment. In recent years, the system has been increasingly adopted in Public transport (also known as public transportation, public transit, mass transit, or simply transit) centers.

This drive-through system is the perfect friction wash cleaning solution for transit, paratransit, and school buses. The most popular configuration includes an overlapping 6-brush system with rear wrap functionality, combined with a high-pressure spinner and v-sprays for touchless cleaning of the front surfaces, bike racks, behind the bike racks, mirrors, wheels, and chassis.

Product Features:

  • Suitable for bus/double-decker bus/van washing
  • Vehicle-contour self-detection tech gives all-around cleaning

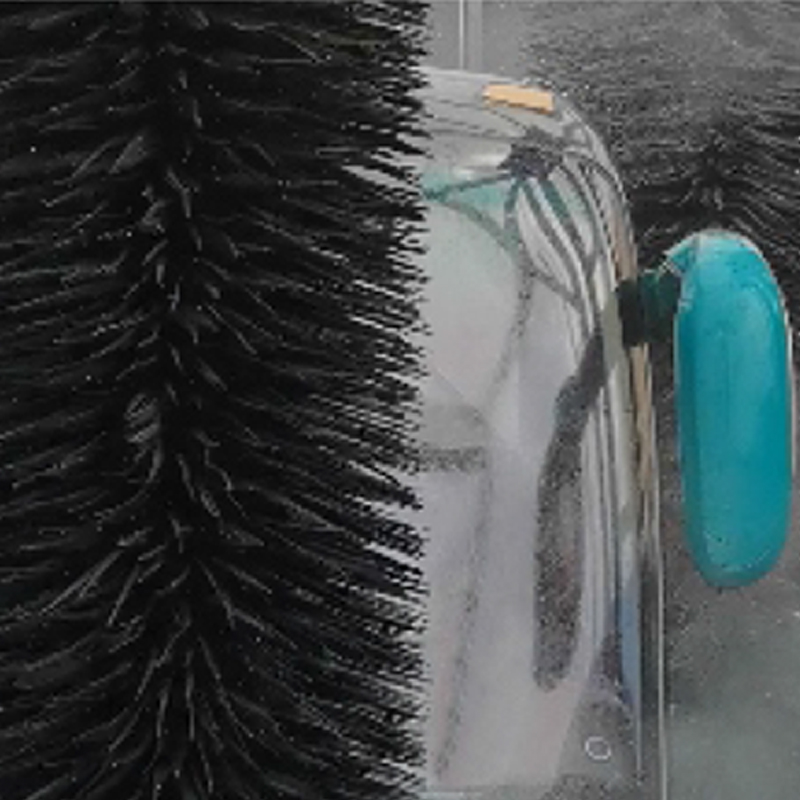

  • Rearview mirror protection
  • The enlarged washing range washes off the sand and dirt completely
  • Fully monitoring the washing state
  • The precise judgment of malfunction types or location

Functional Configuration

Dryer SystemOptional
Automatic liquid proportioningStandard
 Foam sprayingStandard
Water wax sprayingOptional
High-pressure Water RinseStandard
Fault self-check stop alarmStandard
Antifreeze drainingStandard
Intelligent touch screen controlStandard
Leakage protectionStandard
Car wash quantity trackingStandard
Fault Self-diagnosisStandard
Overall StructureHot-dip galvanized profiles
Chassis flushingOptional
Intelligent low-temperature start-stop systemOptional
WeChat Payment FunctionOptional
Customer-supplied Water Tank Specifications2 tons
Customer-supplied Air Compressor Specifications2.2kW, 450L,0.6- 0.8MPa
Car wash modeFront, Both sides, Rear,Roof

Technical Parameters

Applicable Car TypesBuses, large passenger vehicles
Max.Washable Car Dimensions (L*W*H)(Unlimited length)*2.8m*3.5-4.2m
Car Wash Time40-60car/H
Shampoo ConsumptionAround 50mL/car
Power Consumptionround 0.26 kWh/car
Water ConsumptionAround 120L/car
Machine Dimensions(L * W * H)4.28m*5m*10.5m
Installation Dimensions(L * W * H)12m*7.6m*5.5m
Air Source Requirement0.6~0.8MPa
Rated Voltage of Machine3-phase AC380V 50Hz
Rated Power of Machine10.69kw
High-pressure water motor4kw*1
Top Brush Rotation Motor0.75*1
Side Brush Rotation Motor0.75*4
Small Brush Rotation Motor0.37*2
Submersible Pump Motor2.2kw
FrameIn-house
Programmable ControllerMitsubishi, Japan
Variable Frequency DriveZONCN, Shanghai China (Rail)
Infrared Photoelectric SwitchROKO, Taiwan China
Proximity SwitchROKO, Taiwan China
AC ContactorSchneider, France
Thermal RelaySchneider, France
Air SwitchDELIXI, China
High-Pressure Water PumpZhejiang Nanyuan Pump, China
