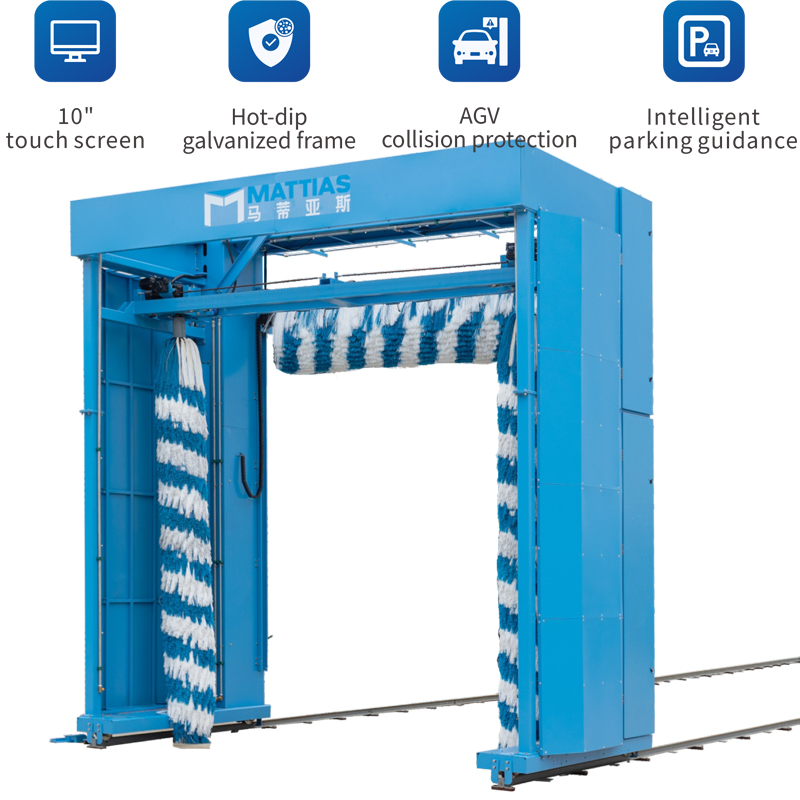

M-BS0300Y Rollover Automatic Bus Wash Machine / Truck Wash Machine

M-BS0300Y Automatic Bus – Truck Wash Machine is a 3 Brush Bus / Truck Wash Equipment in a Trolley Configuration. It provides flexibility to wash variety of vehicles.

Trucks: Fleets, Delivery Trucks, Tanker Trucks, Tractor Trailers, Garbage Trucks
Buses: School Buses, Double Decker Buses, Intercity Buses, City Buses, Vans

Description

M-BS0300Y  Truck Wash Systems is an Automatic Bus / Truck Wash Equipment which comes with two hinged Brushes with Pneumatic Pressure Sensing. The Roof Brush is an optional addon which comes with Extended Mirror Program. The equipment is very easy to Operate and Maintain. 3 pressure sensing brushes ensure enough Brush pressure on the bus / Truck for proper Cleaning. The Side Brushes have the Cross Over functionality which cleans the front and the rear of the vehicle as well.

Product Features:

  • The application of advanced equipment can greatly improve the image of the store.
  • It’s available to clean 12-15 vehicles per hour, and the efficiency is significantly improved.
  • Can be used for 15 years or wash more than 500,000 cars, cost-effective.
  • The equipment uses a large number of imported components to ensure the quality of the product and a low failure rate.
  • Make customers not only make money in business but also make money steadily.
  • Comes with a fault identification code. easy to identify and troubleshoot.
  • The most convenient choice of follow-up product packages.
  • The powerful after-sales service support provides a good base for your business.

Functional Configuration

Dryer SystemOptional
Automatic liquid proportioningStandard
 Foam sprayingStandard
Water wax sprayingStandard
High-pressure Water RinseStandard
Fault self-check stop alarmStandard
Antifreeze drainingStandard
Intelligent touch screen controlStandard
Leakage protectionStandard
Car wash quantity trackingStandard
Fault Self-diagnosisStandard
Overall StructureHot-dip galvanized profiles
Chassis flushingOptional
Intelligent low-temperature start-stop systemOptional
WeChat Payment FunctionOptional
Customer-supplied Water Tank Specifications2 tons
Customer-supplied Air Compressor Specifications2.2kW, 450L,0.4- 0.8MPa
Car wash mode(→)Pre-rinse water, foam brushing, high pressure water rinsing;
(←)Brushing, high-pressure water rinsing;

Technical Parameters

Applicable Car TypesBuses, large passenger vehicles
Max.Washable Car Dimensions(L*W*H)12m*2.7m*3.9m
Car Wash Time10-20 car/H
Shampoo Consumption25~30mL/ car
Wax Consumption25~30mL/ car
Power ConsumptionAround 1.4 kWh/ car
Water ConsumptionAround 90L/ car
Machine Dimensions(L * W * H)2.8m*5m*5.3m
Installation Dimensions(L * W * H)19m x  6.5m  x  >5.5m
Air Source Requirement0.6~0.8MPa
Rated Voltage of Machine3-phase AC380V 50Hz
Rated Power of Machine15kw
Metering Pump Motor0.014kw
High-pressure water motor5.5kw*1
Top Brush Motor1.1kw*1
Power of Side Brush Rotation Motor1.5kw*2
Travelling motor0.37kw*2
Side Brush Opening and Closing Motor0.18kw*2
(Foam) Pump motors:1.5kw*1
(Brush) Pump motor:2.2kw*1
FrameIn-House
Programmable ControllerMitsubishi, Japan
Variable Frequency DriveZONCN, Shanghai China (Rail)
Infrared Photoelectric SwitchROKO, Taiwan China
Proximity SwitchROKO, Taiwan China
AC ContactorSchneider, France
Thermal RelaySchneider, France
Air SwitchDELIXI, China
Submersible PumpKaili, Shanghai China
High-Pressure Water PumpZhejiang Nanyuan Pump, China
