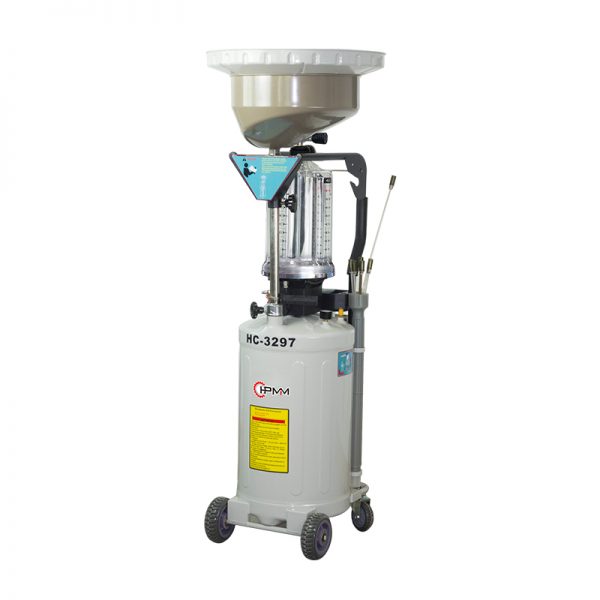

HC-3297 Pneumatic Oil Extractor

The Portable HC-3297 Air-Operated Oil Extractor is a vacuum-charged unit that’s ideal for extracting used oil and other fluids from almost any vehicle. Oil Extractor Functions: Remove and extract waste fluids or oil out from the engine and etc. with a flexible PVC tube and robust CU probe.

SKU: HC-3297 Pneumatic Oil Extractor Categories: ,

Description

The Portable HC-3297 Air-Operated Oil Extractor is a vacuum-charged unit that’s ideal for extracting used oil and other fluids from almost any vehicle.
Functions: Remove and extract waste fluids or oil out from the engine and etc. with a flexible PVC tube and robust CU probe.

1.Vacuum&Explosion-proof integrated mechanism(Patented)
2. Modular Cylinder(Patented)
3. Tool tray
4. Support stand
5. Oil display scale
6. Waste oil collection
7. Resistant PVC wheel
8. Lift handlebar
9. Oil tank(Patented)

Additional information

function

collect waste oil from vehicle gear box or engine

Suitable for

Cars, boats, motorcycles and small engines

Tank Capacity

80L

Collection bowl capacity

20L

Modular cylinder capacity

11/12L

Power

Compressed air

Air Consumption

150L/min.

Air Inlet Pressure

10~15PSI (Ejection pressure)

Vacuum degree

0 ~ -15PSI/0~-1bar

Working Temperature

40~60℃(for engine oil)

Suction Speed(max.)

6.5Liter/m
