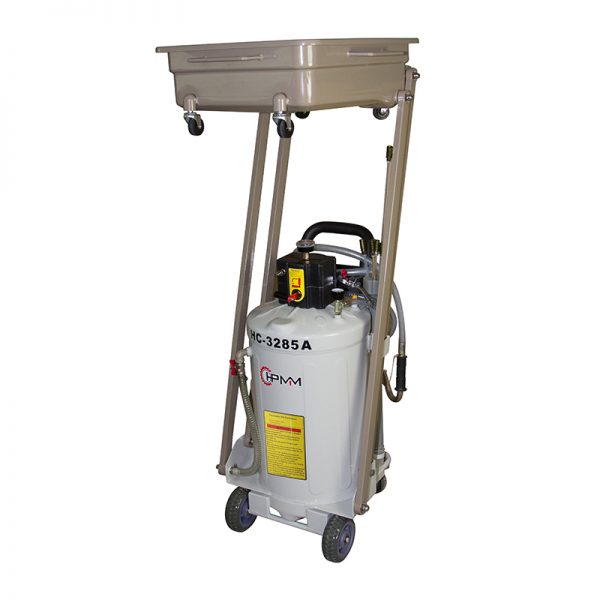

HC-3285A Pneumatic Oil Extractor

The Portable HC-3285A Air-Operated Oil Extractor is a vacuum-charged unit that’s ideal for extracting used oil and other fluids from almost any vehicle.

SKU: HC-3285A Pneumatic Oil Extractor Categories: ,

Description

The Portable HC-3285A Air-Operated Oil Extractor is a vacuum-charged unit that’s ideal for extracting used oil and other fluids from almost any vehicle.

1. Compressed air is used as the power source for all functions, ensuring operational safety, being environmentally friendly, and low consumption.
2. Vacuum generation device to achieve high-speed vacuum extraction, and strong negative pressure capability.
3. Various diameter of extraction probes is provided to fit the use of different cars.
4. The machine is applied to extraction and temporary storage of all mechanical, lubricating oil. Strictly prohibit the extraction of brake fluid, gasoline, diesel, dismantle-free cleaning fluid, and any solvent that contains Methanol, ketone, and flammable, corrosive liquid, etc.

Additional information

Air Inlet Pressure

6~8bar/ 87~116PSI

Ejection pressure

0.7~1 bar/ 10~14PSI

Air Consumption

200L/Min

Vacuum Degree

0~-1 bar /-14PSI

Tank Capacity

80L

Oil tray volume

20L

Working Temperature

40~80℃

Oil extraction probes

6pcs

Suction probes

Suction speed

Φ5*L800mm,(Cu,1 PCS)

Suction speed:1.9 L/Min.

Φ6*L800mm,(Cu,1 PCS)

Suction speed:3.2 L/Min.

Φ6*L700mm,(PVC,1PCS)

Suction speed:4.2 L/Min.

Φ8*L700mm,(PVC,1PCS)

Suction speed:6.2 L/Min.

Φ6*L800mm,(PVC,1PCS)

Suction speed:3.7 L/Min.

Φ8*L800mm,(PVC,1PCS)

Suction speed:5.2 L/Min.
