HC-3285 Pneumatic Oil Extractor

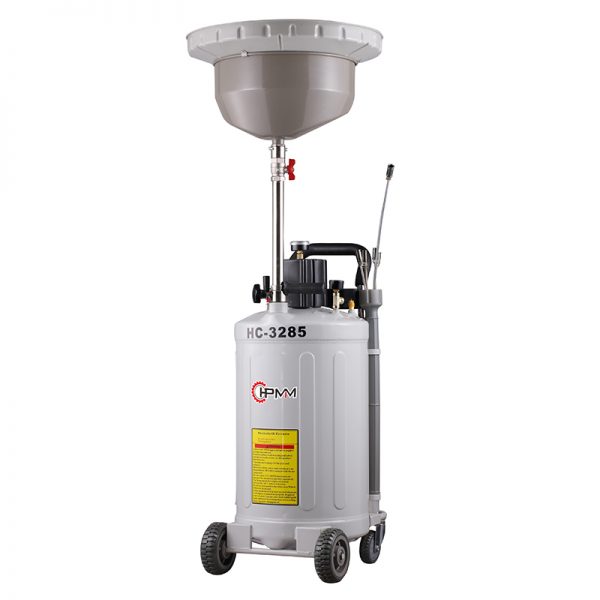

HC-3285 Pneumatic Oil Extractor,The Portable HC-3285 Air-Operated Oil Extractor is a vacuum-charged unit that’s ideal for extracting used oil and other fluids from almost any vehicle.

SKU: HC-3285 Categories: ,

Description

HC-3285 Pneumatic Oil Extractor,The Portable HC-3285 Air-Operated Oil Extractor is a vacuum-charged unit that’s ideal for extracting used oil and other fluids from almost any vehicle.

Functions: Remove and extract waste fluids or oil out from the engine and etc. with a flexible PVC tube and robust CU probe.

◆Pneumatic waste oil drainer and extractor
◆The tray’s up and down are easily controlled by an easy lift handle(Exclusive patent).
◆The product appearance has the exclusive patent.

Additional information

Tank capacity

80L

Collection bowl capacity

20L

Air inlet pressure

6-8Bar

Air inlet connection

1/4”

Air pressure for oil discharge

0.7~1Bar

Vacuum degree

-1~0Bar

Oil temperature range

40-60℃

Suction Speed(max.)

6.5Liter/m

N/G weight

26/29.5kgs

Package dimension

550*450*1010mm
