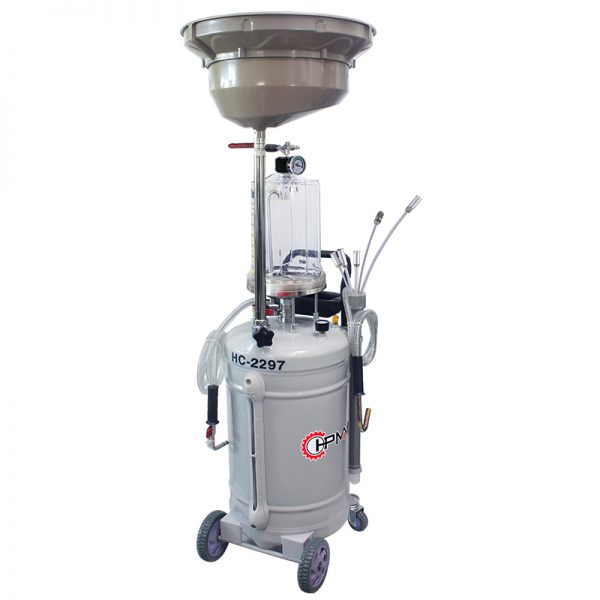

HC-2297 Pneumatic Oil Extractor

The Portable HC-2297 Air-Operated Oil Extractor is a vacuum-charged unit that’s ideal for extracting used oil and other fluids from almost any vehicle. Functions: Remove and extract waste fluids or oil out from the engine and etc. with a flexible PVC tube and robust CU probe.

SKU: HC-2297 Pneumatic Oil Extractor Categories: ,

Description

The Portable HC-2297 Air-Operated Oil Extractor is a vacuum-charged unit ideal for extracting used oil and other fluids from almost any vehicle.

Functions: Remove and extract waste fluids or oil from the engine and etc. with a flexible PVC tube and robust CU probe.

1.Vacuum&Explosion-proof integrated mechanism(Patented)
2. Modular Cylinder(Patented)
3. Tool tray
4. Damage-free lifting rod locking mechanism
5. Liquid-level display cover(Patented)
6. Waste oil collection
7. Resistant PVC wheel

Additional information

Tank capacity

80L

Modular cylinder capacity

10L

Air inlet pressure

6-8Bar

Air inlet connection

1/4”

Air pressure for oil discharge

0.7~1Bar

Collection bowl capacity

16L

Vacuum degree

-1~0Bar

Oil temperature range

40-60℃

Suction Speed(max.)

6.5Liter/m

N/G weight

18.5/21.5kgs

Package dimension

470*440*960mm
