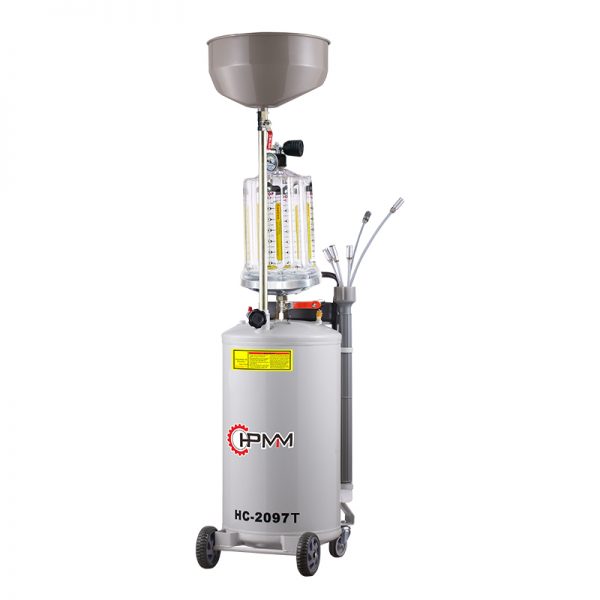

HC-2097 Pneumatic Oil Extractor

The Portable HC-2097 Air-Operated Oil Extractor is a vacuum-charged unit that’s ideal for extracting used oil and other fluids from almost any vehicle.
Functions:
Remove and extract waste fluids or oil out from the engine and etc. with a flexible PVC tube and robust CU probe. Power from compressed air

SKU: HC-2097 Pneumatic Oil Extractor Categories: ,

Description

The Portable HC-2097 Air-Operated Oil Extractor is a vacuum-charged unit ideal for extracting used oil and other fluids from almost any vehicle.

Features:
1. Fast vacuum speed, capable of high negative pressure, multi-purpose equipment.
2. High-quality cylinder, higher intensity, high grade of transparency, and high-temperature resistance (able to withstand 80ºC & negative pressure without deforming). A transparent cylinder allows oil observation and measurement.
3. Use compressed air as a power source; guarantee safety in use, Eco friendly and low power consumption
4. Vacuum cylinder and oil tank at the same time, increase oil extraction speed
5. Different diameters of oil suction probes to meet the need of the different types of cars
6. Height adjustable Oil tray lift, can be fixed to a desirable height
7. Can be used with other mechanical engine oil, and lubricants as well as temporary storage. Brake fluid, gasoline, diesel, and other liquid containing methanol and ketones or flammable is strictly prohibited.

Functions:
Remove and extract waste fluids or oil out from the engine and etc. with a flexible PVC tube and robust CU probe. Power from compressed air

Additional information

Air Inlet Pressure

6~8bar/ 87~116PSI

Ejection pressure

0.7~1 bar/ 10~14PSI

Air Consumption

150L/Min

Vacuum Degree

0~-1 bar /-14PSI

Tank Capacity

65L

Cylinder Capacity

9L

Working Temperature

40~60℃

Package

Cylinder/box,oil tank/box

Carton size

255*255*540mm/470*440*940mm

Suction probes

Suction speed

Φ5*L800mm,(Cu,1 PCS)

Suction speed:1.9 L/Min.

Φ6*L800mm,(Cu,1 PCS)

Suction speed:3.2 L/Min.

Φ6*L700mm,(PVC,1PCS)

Suction speed:4.2 L/Min.

Φ8*L700mm,(PVC,1PCS)

Suction speed:6.2 L/Min.

Φ6*L800mm,(PVC,1PCS)

Suction speed:3.7 L/Min.

Φ8*L800mm,(PVC,1PCS)

Suction speed:5.2 L/Min.
