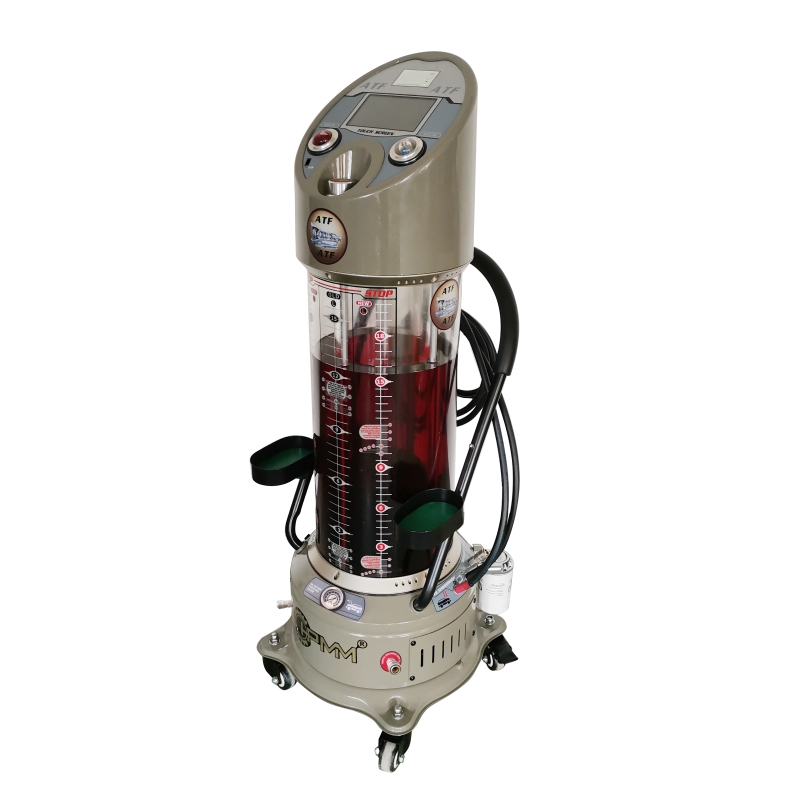

GD-608 ATF Exchanger

GD-608 ATF Exchanger is professional in cleaning the auto transmission with the detergent added and exchanging the auto transmission fluid simultaneously with the engine when there is a pressure difference inside the auto transmission and the pump.

SKU: GD-608 Categories: ,

Description

Automatic Transmission Fluid Exchanger offers the complete package with the utmost accuracy during fluid exchange combined with multitasking to ensure the fastest service.

GD-608 ATF Exchanger is professional in cleaning the auto transmission with the detergent added and exchanging the auto transmission fluid simultaneously with the engine when there is a pressure difference inside the auto transmission and the pump. It also has the function of auto transmission fluid flow automatical recognization, frequently-used vehicle adding and searching list, fluid exchanging result customerized printing, and fluid filter replacement warning.

Features:



1. Adopts new Deeptrans technology, effectively reducing interference; the precision of fluid exchanging is 50% higher than the traditional sensor.

2. Distinctive transparent double wall tank design cleverly warms the new fluid during exchanging; thus saves energy and effectively protects the gearbox and pipelines.

3. High precision scale marks ensure accurate electronic scale calibration and accurate exchanging results. Or in extreme cases, accurate fluid exchanging can be carried out by manpower through the scale marks.

4. One-button control to complete processes like new/waste fluid exchanging, quick and convenient.

5. Color touch screen for easy operation and vehicle data can be directly called; Equipped with a USB port to conveniently update the database.

6. Two newly designed dynamic observation windows, attractive and novel.

7. Two new fluid refill options: add it manually or through automatic pumping. Easy fluid refilling per your needs.

8. Standard equipped with adapters that meet most models on the market; and an extra adapter kit of 72 pieces as optional.

9. High-quality swivel casters and brake wheels allow easy moving of the machine and keeps it stable when standing.

Additional information

Model

GD-608

Voltage

AC220V 50/60Hz 1Ph

Power

140W

Pressure gauge range

0~16Bar(0~220Psi)

Operating pressure

≤6Bar(0~87Psi)

Length of oil outlet hose

2.5m

Length of oil return hose

2.5m

Length of oil drain hose

2.0m

Filter element precision

5μm

Volume of new oil tank

≈19.5L

Volume of waste oil tank

≈15.5L

Equivalent replacement error

≤±0.05L

Max. speed of oil exchange

3.0L /Min

Dimension of machine

465mm×465mm×1360mm

Package dimension

495mm×495mm×1390mm
