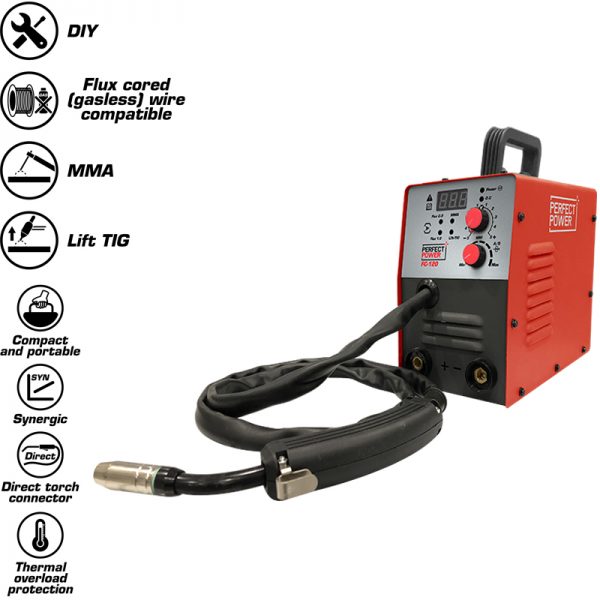

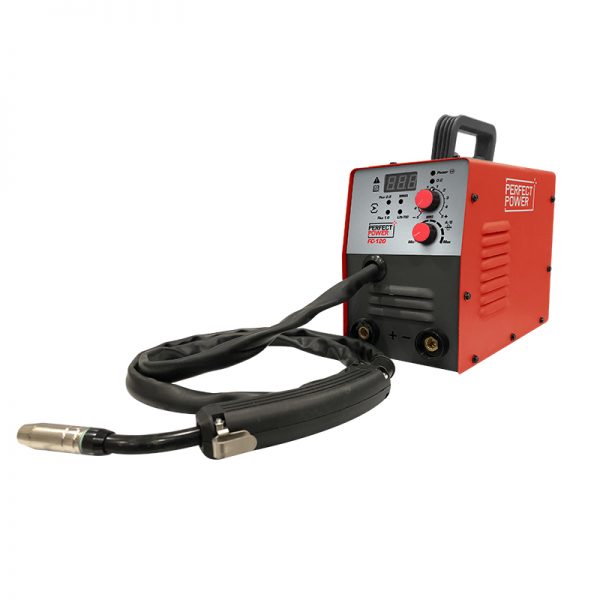

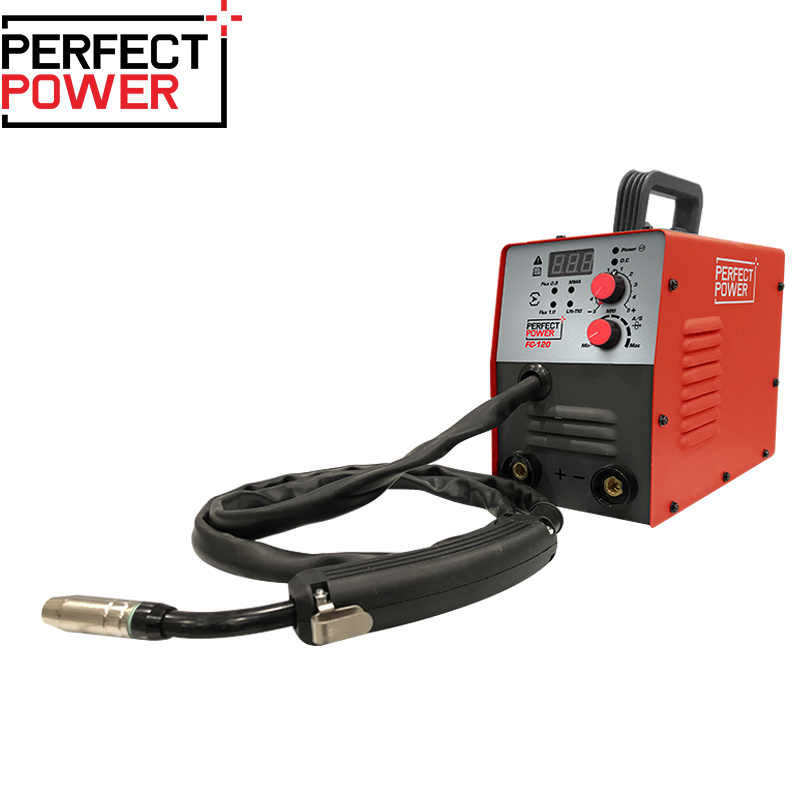

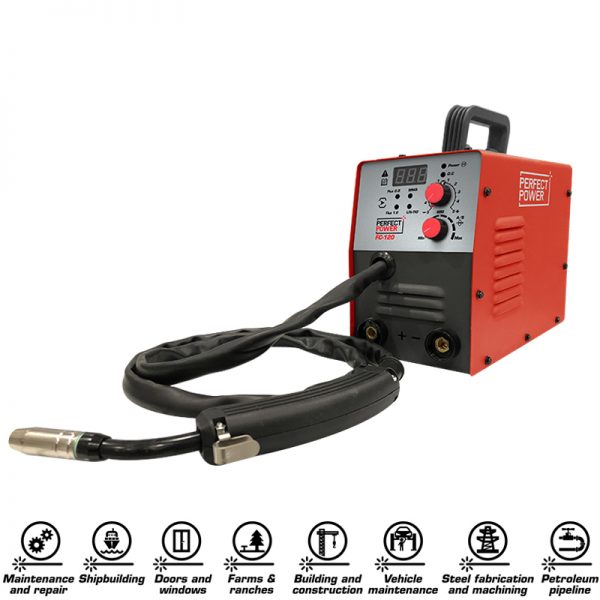

1. Multi-function: Gasless flux-cored wire welding, MMA and lift TIG.
2. Suitable for 1KG wire spool.
3. Compact design, lightweight, but robust.
4. User-friendly and cost-effective.
5. Overload protection.
You can just plug and then weld with a complete accessory set: MIG torch, earth cable, welding mask, and a steel brush.
| Model | FC-120 |
|---|---|
| Power input AC(V) | 1ph 220V ±15% |
| Power input frequency(Hz) | 50/60 |
| Max. Load Power Capacity(kVA) | 5.1 |
| Rated current input(A) | 23 |
| Rated output current(A)/voltage(V) | 120/20.0（MIG） 120/24.8（MMA） |
| Welding current range(A) | 30-120（MIG） 20-120（MMA） |
| Open circuit voltage DC(V) | 60 |
| Rated duty cycle(%) | 60 |
| Wire Feeding Speed(M/min) | 2-15 |
| IP grade | IP21 |
| Insulation grade | H |
| Dimensions(mm) | 430*220*320 |
| Weight (KG) | 7.25 |
| Wire Melting Type | short circuit transfer |
