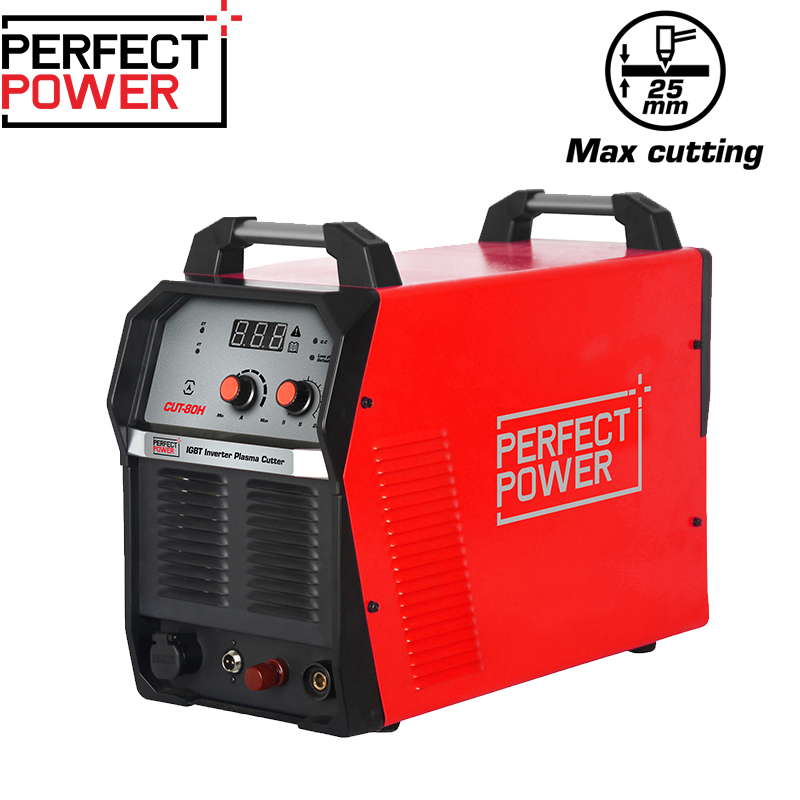

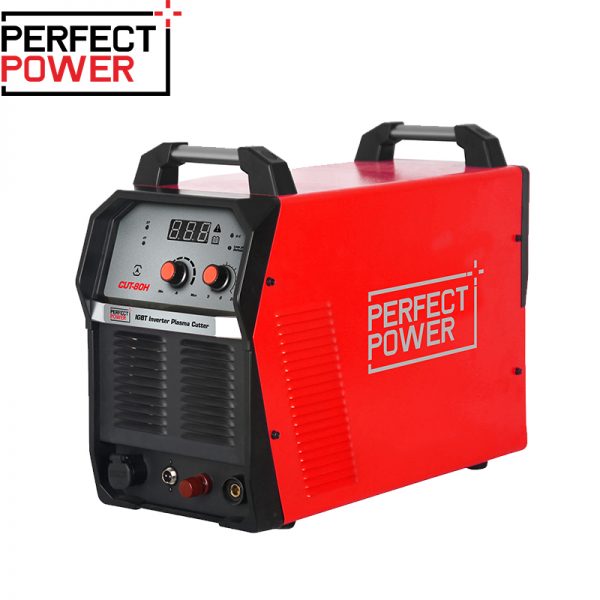

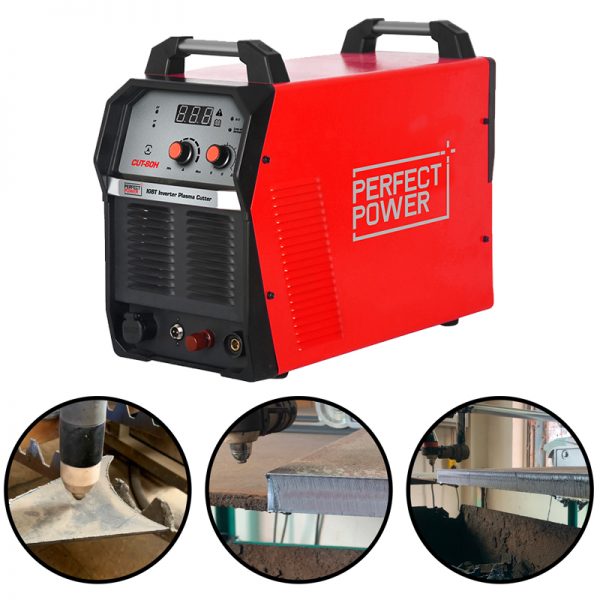

CUT-80H IGBT Inverter Plasma Cutting Machine

Description

1. Thanks to the advanced inverter technology, the machine is robust with a powerful cutting capacity.
2. Able to be connected with CNC equipment to achieve automatic cutting; the connector is optional.
3. Powerful cutting capacity, narrow cutting seam, and clean cutting edge.
4. 2T/4T self-locking function.
5. Pilot arc starting increases cutting capability and cutting speed, improving the service life of torch kit.
6. Operation safety protection against over-voltage, low-voltage, over-current and over-heated.
7. Heavy-duty cycle for industrial use.

Additional information

Model

CUT-80H

Power input AC(V)

3ph 380V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity

14.5

Rated current input(A)

22

Rated output current(A)/voltage(V)

80/112

Max. cutting current (A)

80

Open circuit voltage DC(V)

288

Rated duty cycle(%)

60

Max.cutting thickness(mm)

25

IP grade

IP21

Insulation grade

F

Dimensions(mm)

625*360*460

Weight (KG)

19.3
