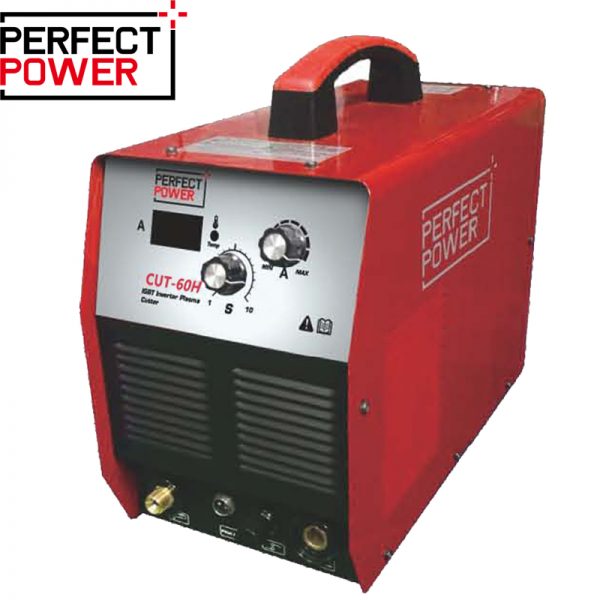

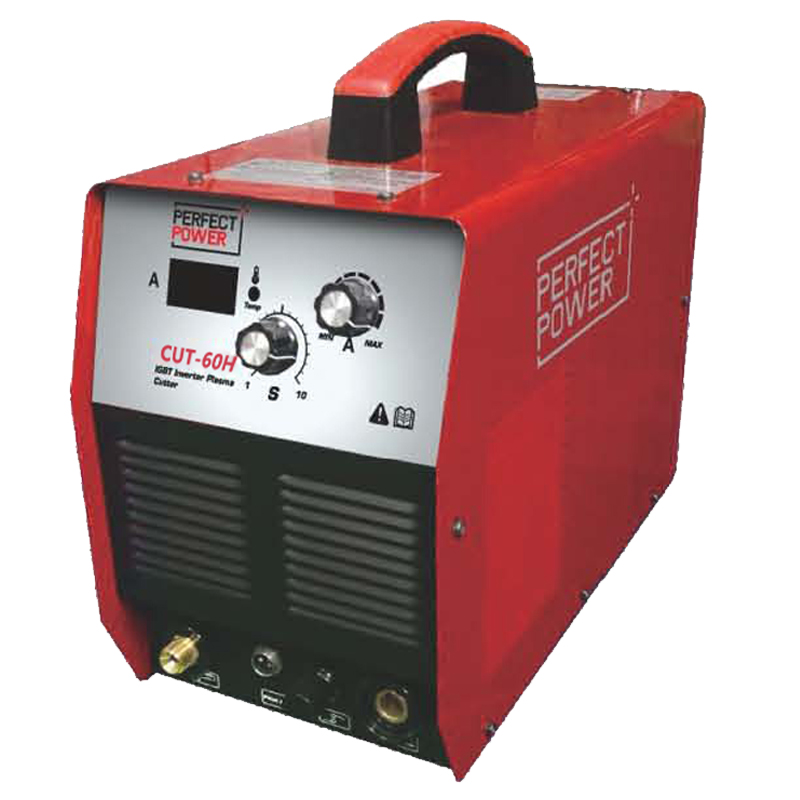

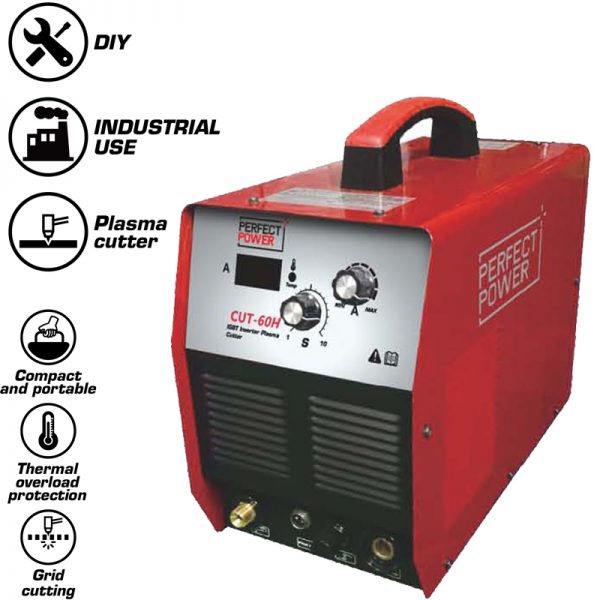

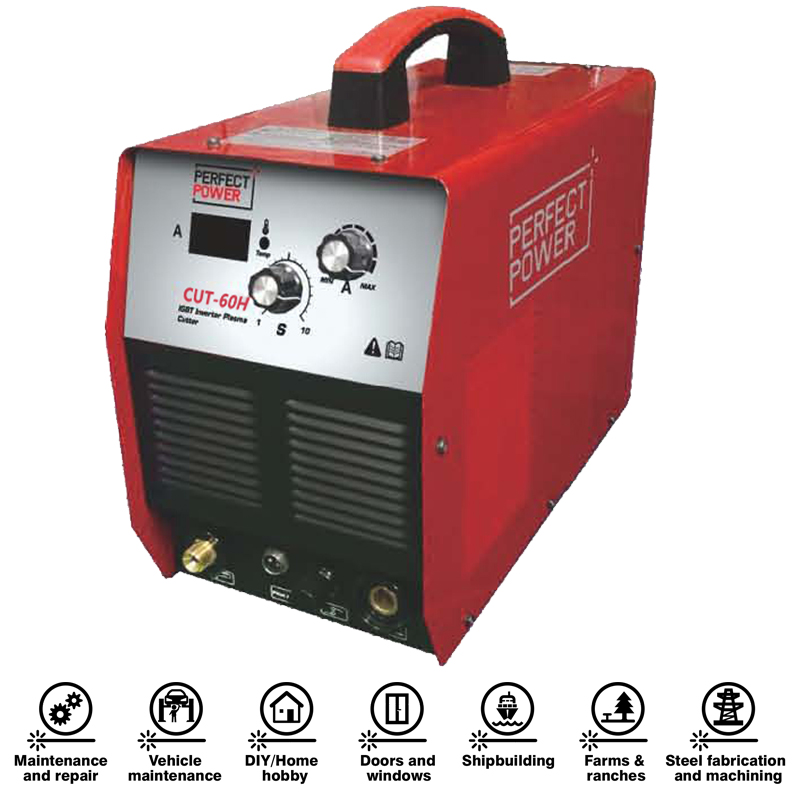

CUT-60H IGBT Inverter Plasma Cutting Machine

Description

1. Thanks to the advanced inverter technology, the machine is robust with a powerful cutting capacity.
2. Able to be connected with CNC equipment to achieve automatic cutting; the connector is optional.
3. Powerful cutting capacity, narrow cutting seam, and clean cutting edge.
4. 2T/4T self-locking function.
5. Pilot arc starting increases cutting capability and cutting speed, improving the service life of torch kit.
6. Operation safety protection against over-voltage, low-voltage, over-current and over-heated.
7. Heavy-duty cycle for industrial use.

Additional information

Model

CUT-60H

Power input AC(V)

1ph 220V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity

8.9

Rated current input(A)

14.6

Rated output current(A)/voltage(V)

60/104

Max. cutting current (A)

60

Open circuit voltage DC(V)

340

Rated duty cycle(%)

60

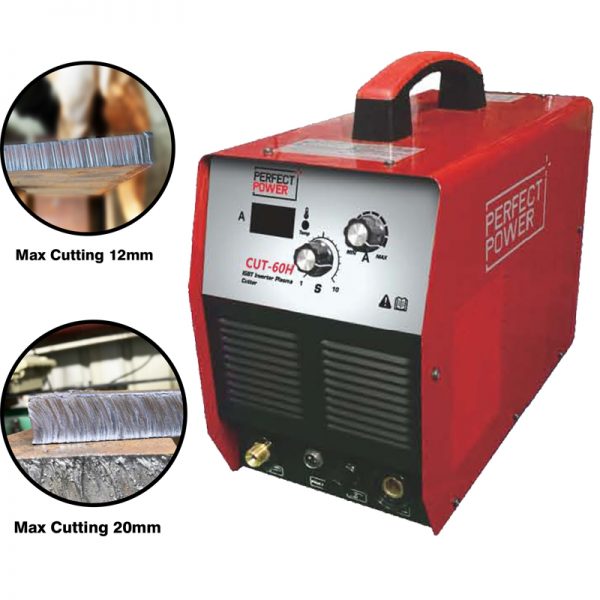

Max.cutting thickness(mm)

20

IP grade

IP21

Insulation grade

F

Dimensions(mm)

580*315*415

Weight (KG)

9.5/12.7
