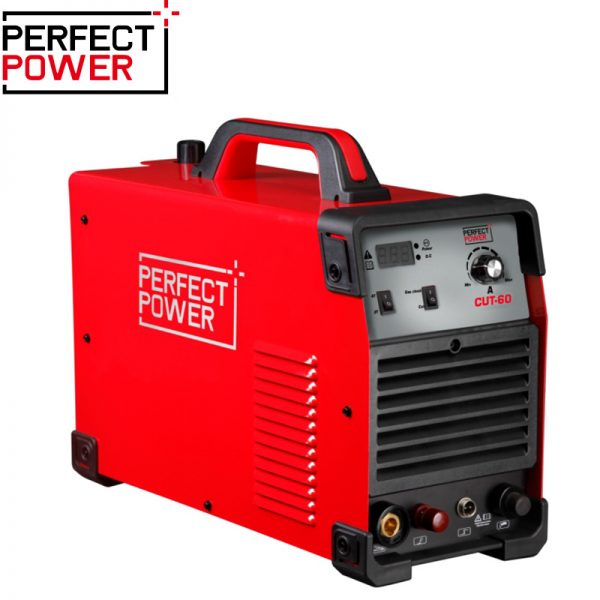

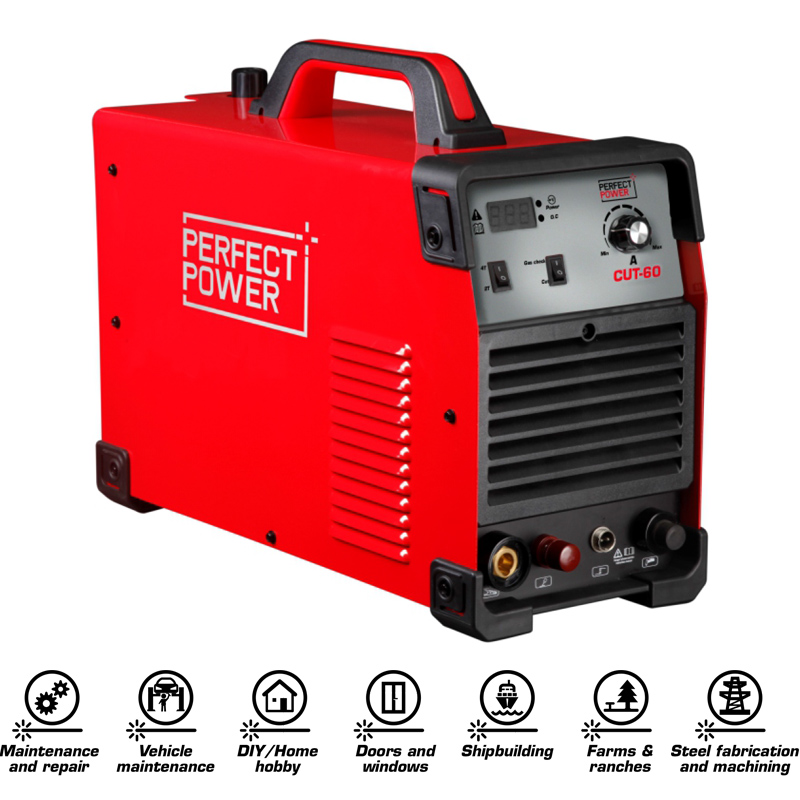

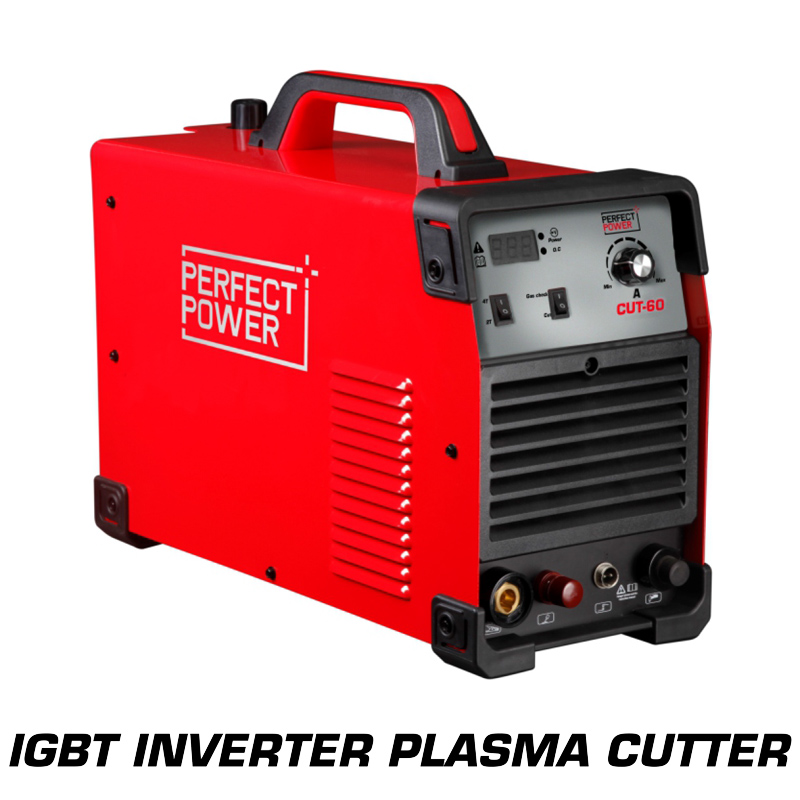

CUT-60 IGBT Inverter Plasma Cutting Machine

Description

1. IGBT inverter for high efficiency, simple operation, smooth precise cutting.
2. Pressure regulating valve does waterproof automatically, the gas meter was molded together with the machine, no need to install it. 3. Pilot arc starting increases cutting capability and cutting speed, improving the service life of the torch kit.
4. Adjustable post-flow function.
5. 2T/4T self-locking function.
6. Capable of cutting all metal plates.
7. O.H&O.C protection, for long-term use.

Additional information

Model

CUT-60

Power input AC(V)

1ph 220V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity

10.7

Rated current input(A)

41

Rated output current(A)/voltage(V)

55/102

Max. cutting current (A)

55

Open circuit voltage DC(V)

360

Rated duty cycle(%)

60

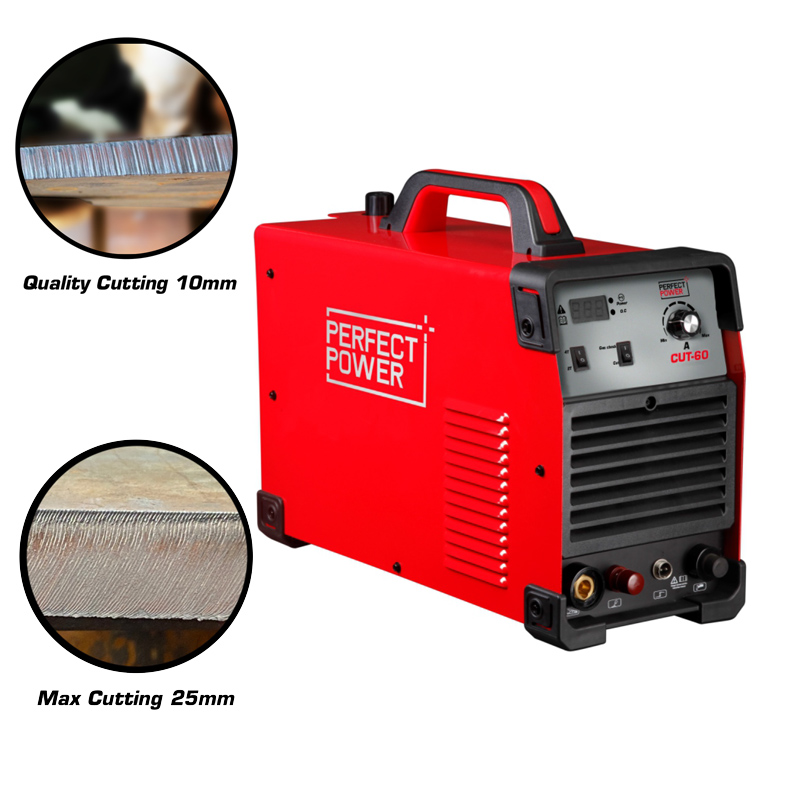

Max.cutting thickness(mm)

25

IP grade

IP21S

Insulation grade

F

Dimensions(mm)

500*215*380 mm

Weight (KG)

15
