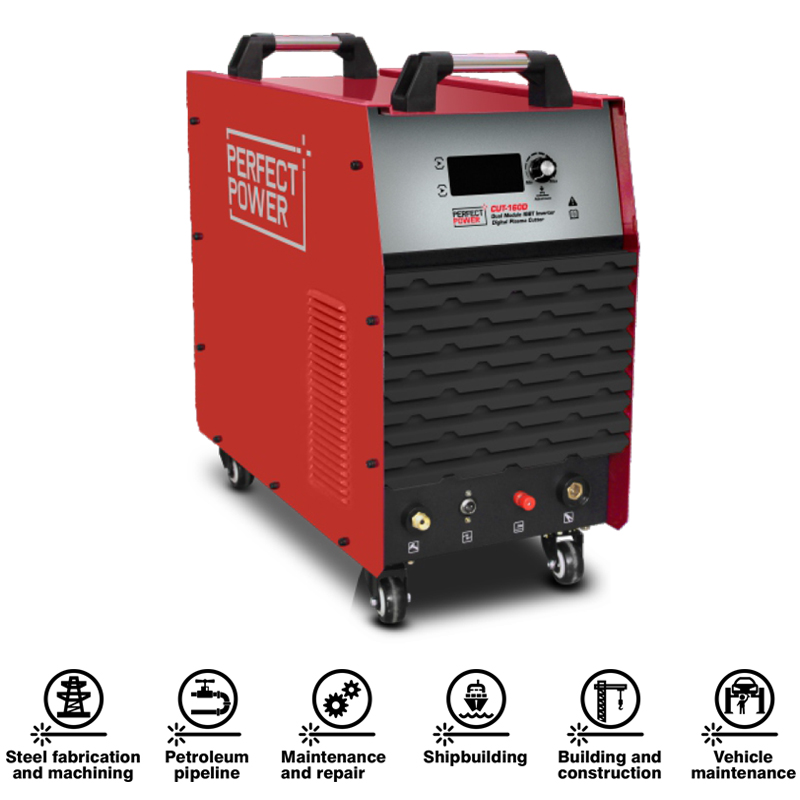

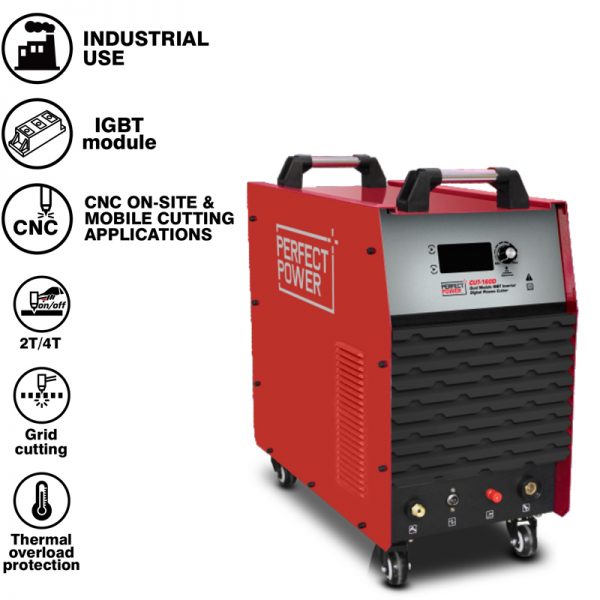

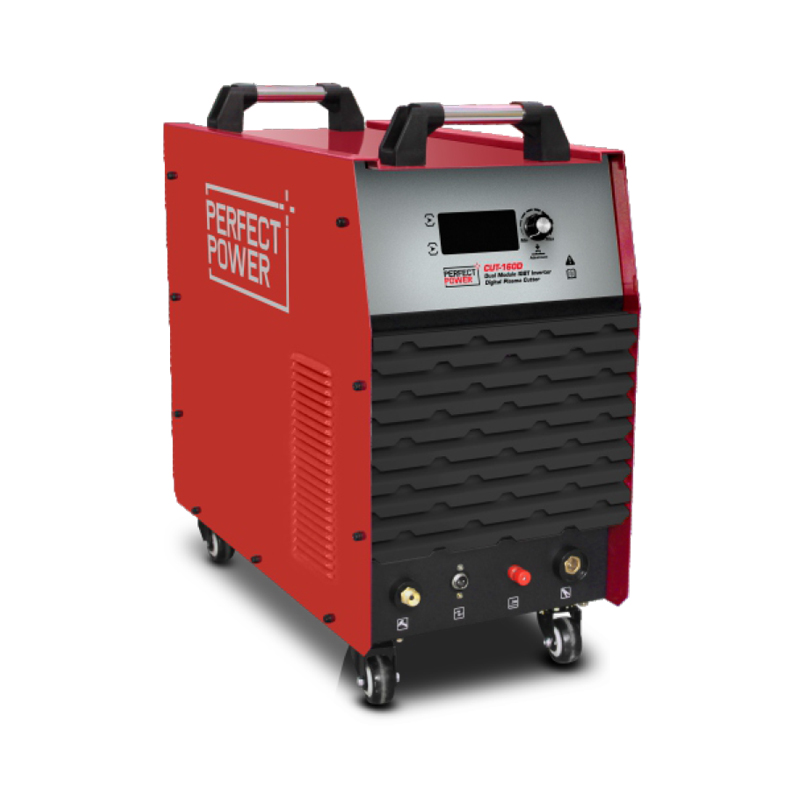

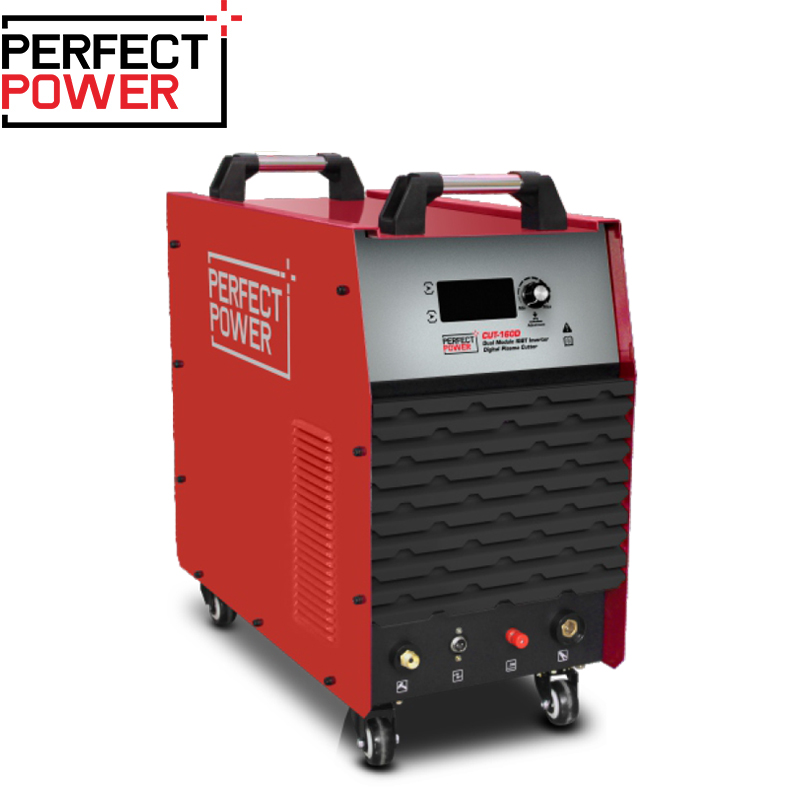

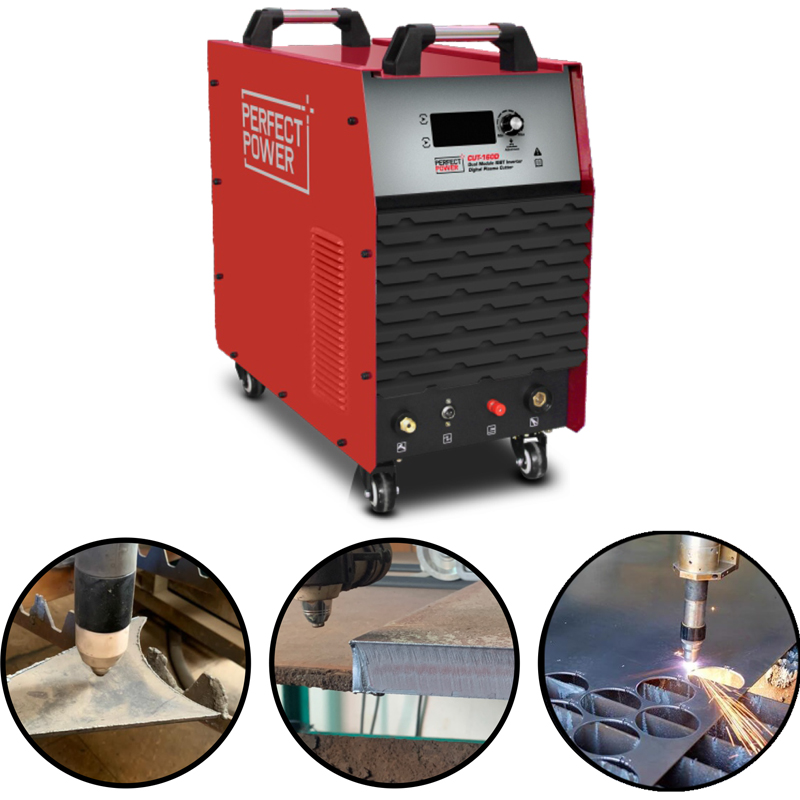

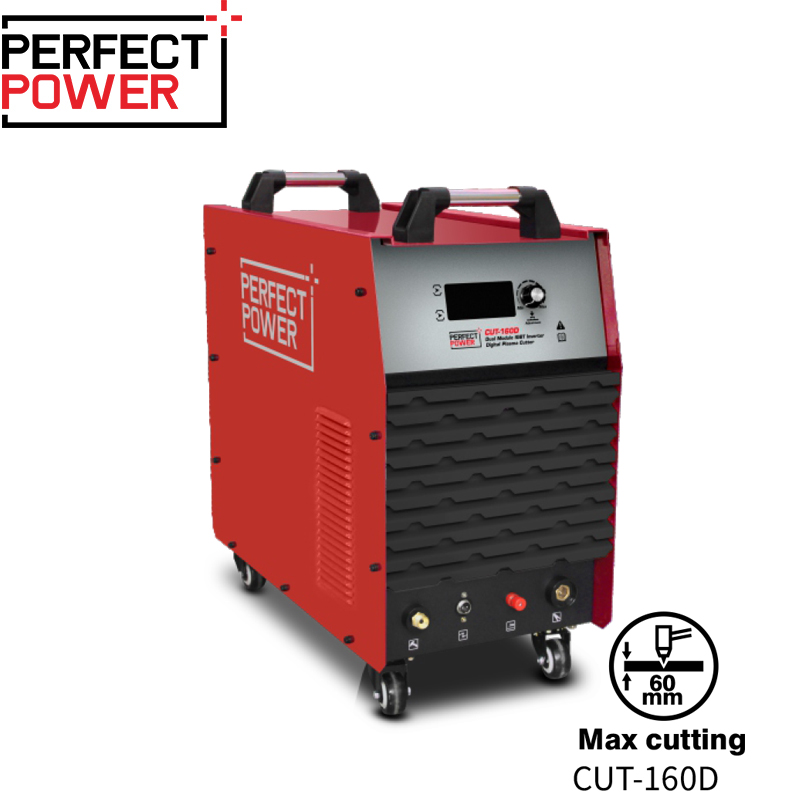

CUT-160D Inverter Plasma Cutting Machine

Description

1. Thanks to the advanced inverter technology, the machine is robust with powerful cutting capacity.
2. Able to be connected with CNC equipment to achieve automatic cutting; the connector is optional.
3. Intelligent visual operation instruction make your work easy
4. Powerful cutting capacity, narrow cutting seam and clean cutting edge.
5. 2T/4T self-locking function.
6. Pilot arc starting increases cutting capability and cutting speed, improving service life of torch kit.
7. Operation safety protection against over-voltage, low-voltage, over-current and over-heated.
8. Heavy duty cycle for industrial use.

Additional information

Model

CUT-160D

Power input AC(V)

3pH 380V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity

32

Rated current input(A)

46.5

Rated output current(A)/voltage(V)

160/144

Max. cutting current (A)

160

Open circuit voltage DC(V)

315

Rated duty cycle(%)

60

Max.cutting thickness(mm)

60

IP grade

IP21

Insulation grade

F

Dimensions(mm)

708×403×713

Weight (KG)

55
