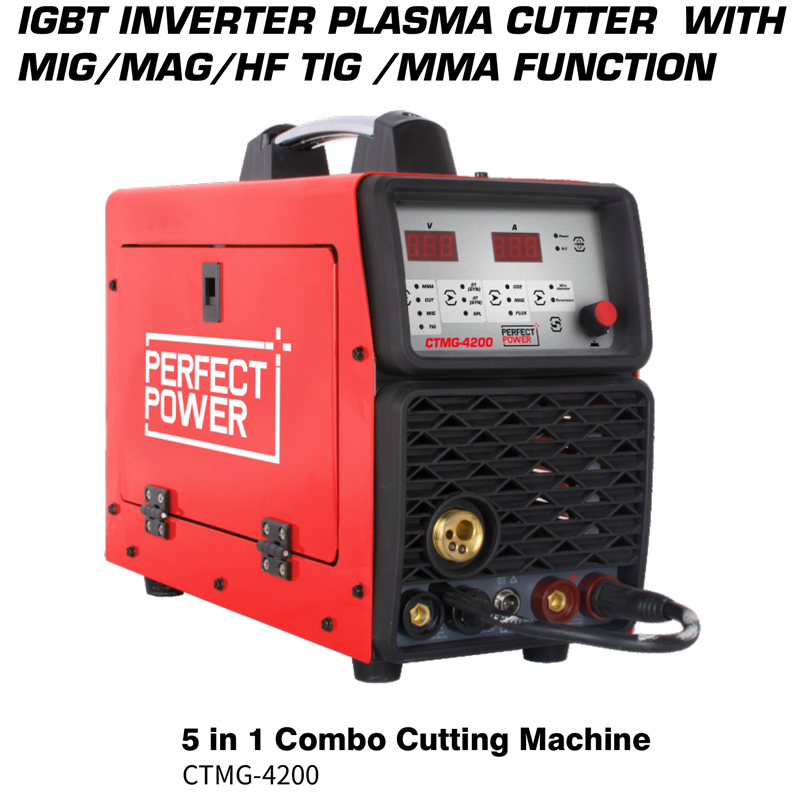

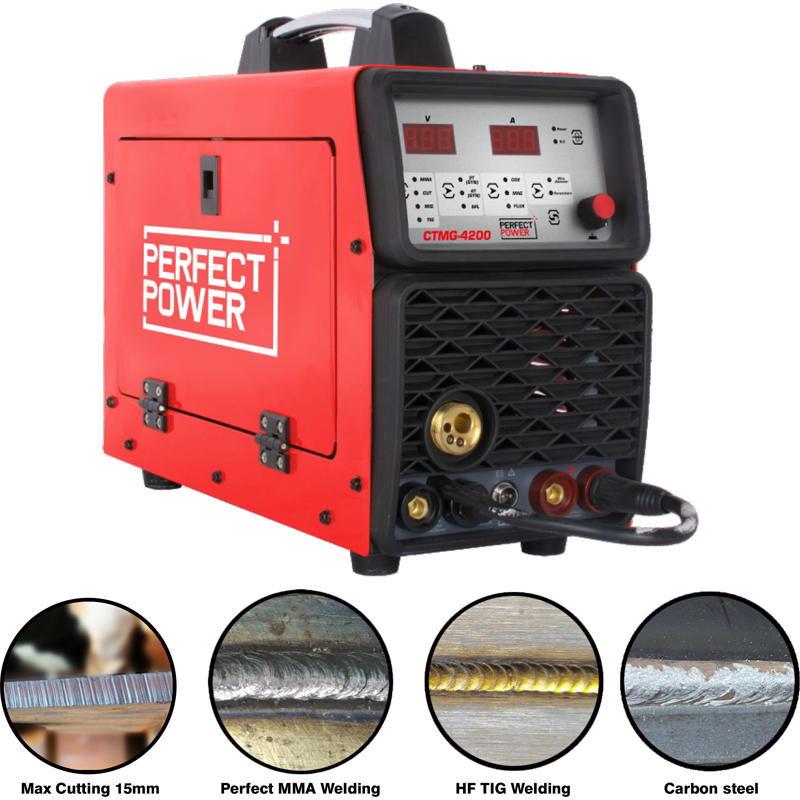

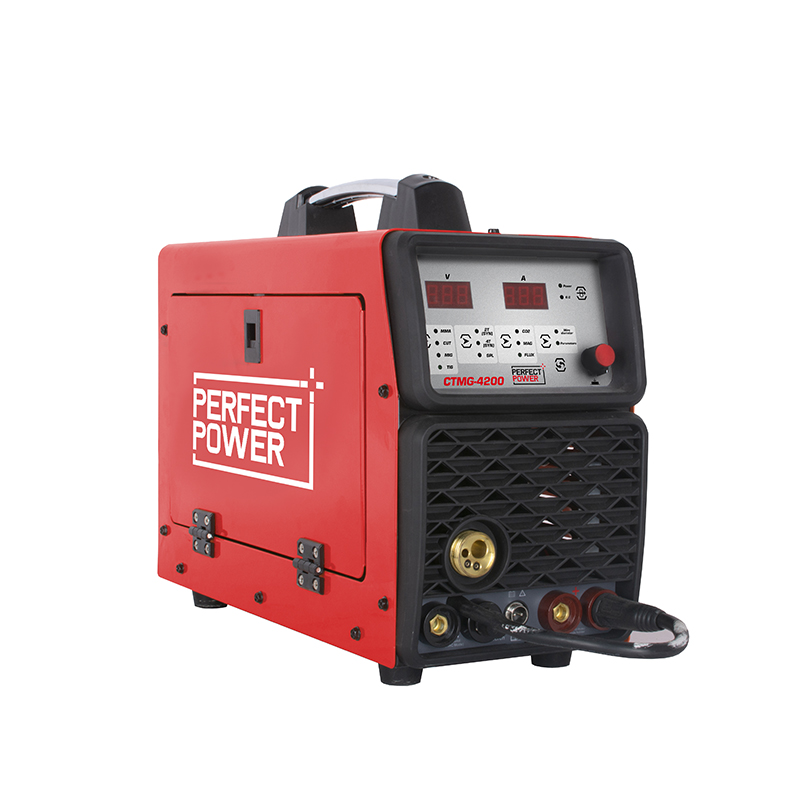

CTMG-4200 IGBT Inverter Plasma Cutter With MIG/MAG/HF TIG /MMA Function

Description

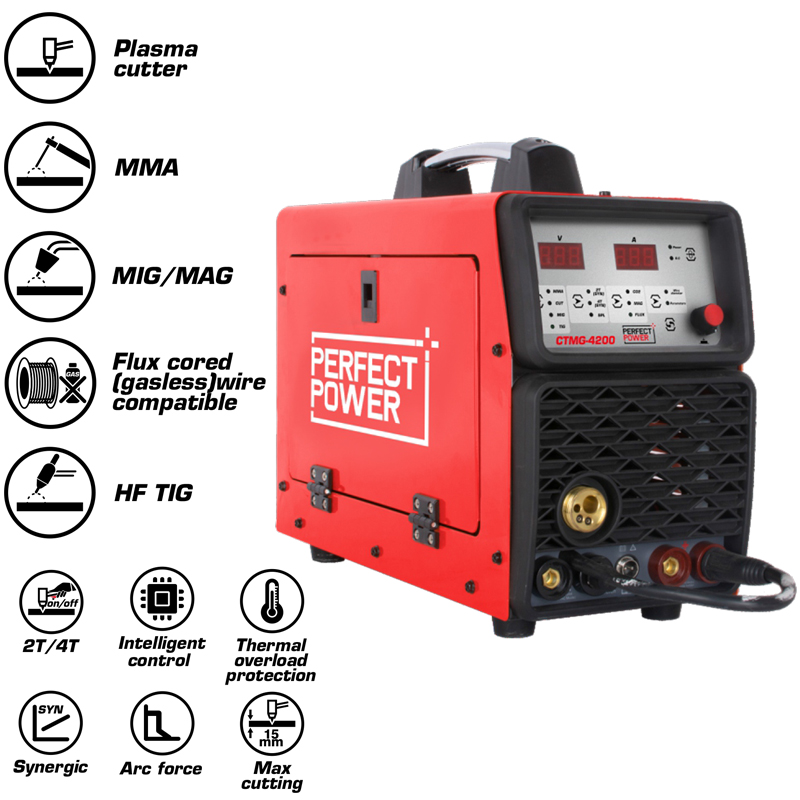

1. Multi-process welder for MMA、HF-TIG、MIG/MAG, Gasless flux-cored wire welding, and CUT.
2. Full digital control system, welding parameters can be adjusted independently; Stable arc output, superior welding quality.
3. With HF TIG arc starting, allows to strike the arc easily with high frequency and make it easy to establish an arc under a variety of conditions.
4. SPL MIG and SYN MIG can meet the needs of different users and more simple to operate.
5. 2T/4T function, adjustable Pre-Flow and Post-Flow.
6. Max 15mm Cutting thickness.
7. Adjustable Arc Force, Anti-Stick and Hot Start.
8. VRD function, guarantees operation safety. 9. Capable for different shapes welding, like butt-joint, corner joint, T-joint, lap joint and cruciform joint 10. Overcurrent & heating protection.

Additional information

Model

CTMG-4200

Power input AC(V)

1ph 220V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity

8

Rated current input(A)

36

Rated output current(A)/voltage(V)

200/28(MMA), 200/18(TIG), 200/24(MIG), 40/96.0(CUT)

Max. cutting current (A)

40

Open circuit voltage DC(V)

66(TIG/MMA/MIG), 244(CUT)

Rated duty cycle(%)

40%

Max.cutting thickness(mm)

15

IP grade

IP21

Insulation grade

F

Dimensions(mm)

496*212*380

Weight (KG)

15
