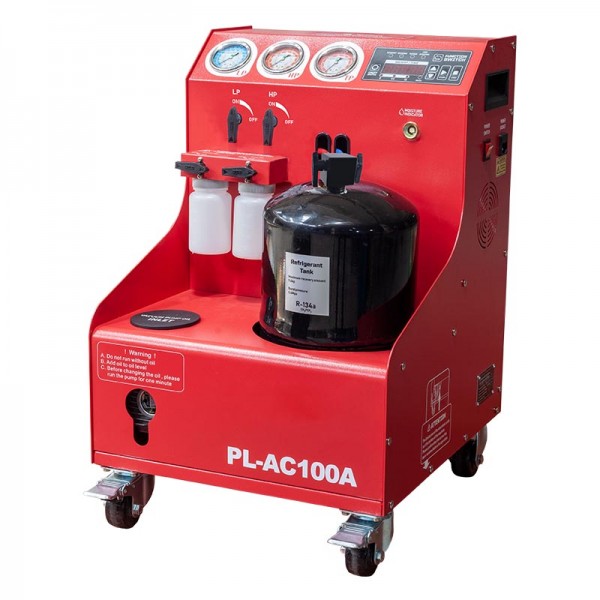

AC100A A/C Recover, Recycle And Recharge Machine

AC100A A/C Recover Recycle And Recharge Machine This machine was designed to recover the residual refrigerant from the A/C system. As many impurities including frozen oil, air, water vapor and etc.

SKU: AC100A Category:

Description

AC100A A/C Recover, Recycle And Recharge Machine.This machine was designed to recover the residual refrigerant from the A/C system. As many impurities including frozen oil, air, water vapor and etc. Causing a lot of bad effects, such as high temperature, reducing the refrigerant effect, causing leakage, pipe block by ice block, increasing engine loading and etc…

Features:

Real-time high & low-pressure test of automobile A/C system
Automatically and accurately measure the amount of refrigerant recycled and recharged
Available for collecting waste refrigerant and storing new refrigerant
Available for recycling and recovering the waste refrigerant of A/C system
Available for vacuuming and maintaining pressure for leak test of A/C system
Accurate refrigerant and oil supplement for A/C system
3 pressure gauges Real-time observation of car air conditioning system and machine tank pressure makes machine operation safer.
Ease-to-use control panel with simple 6 function conversion buttons and indicator lights Allowing more convenient function selection
Available to switch among 3 weight units to meet different market needs
Allowing us to identify when to replace the filter by observing the psychrometer
Oil bottles with scale Easily check the oil amount; The metal bottle caps are used to prevent the caps from being twisted to be damaged or broken
A Bottle of vacuum pump oil and an oil funnel are given FOR FREE.
We place an observation window to let the operator check the oil level conveniently.
The easy maintenance design allows the operator to add or exchange oil in a quick way.
The holding bracket is designed to help to keep wires and cables more organized
It combines a swivel and rigid casters to give the machine the most favorable mix of stability and maneuverability

Additional information

Power supply

1PH 220V 50Hz

Capacity of refrigerant tank

12 L

Work temperature

5~50°C

Recovery speed

> 500 g/min

Vacuum generated speed

60 L/min

Refilling speed

> 300 g/min

Machine power

770 W

Max. pressure for HP

34 Bar

Refrigerant recovery

R134a

Max. pressure for LP

18 Bar

Accuracy of electronic scale

+10 g

Max. pressure for TP

34 Bar

Max. weight of the electronic scale

35 kg

Max. working pressure

20 Bar

N.W

52.5 kg

G.W

57 kg
